Description

PORTS AND FITTINGS
The fuel rail ports are tapped for 8AN ORB.

8AN ORB Adapter Fittings can be found HERE.
8AN ORB Direct Mount Regulators can be found HERE.
8AN ORB Fuel Pulse Dampers can be found HERE.
Fuel Pressure Gauge Adapters can be found HERE.

Appropriate fittings must be selected based on the specific application. Ample space around the fuel rail port(s) is necessary for larger accessories such as fuel pressure regulators, fuel pressure gauges, and fuel pulse dampers. To verify clearance, the dimensional drawings on the product pages can be used as a reference guide.

COMPATIBILITY
02-09 VW Golf R32
01-03 VW Beetle RSi
02-08 VW Phaeton
05-10 VW Touareg
03-09 Audi A3
01-10 Audi TT
04-07 Porsche Cayenne

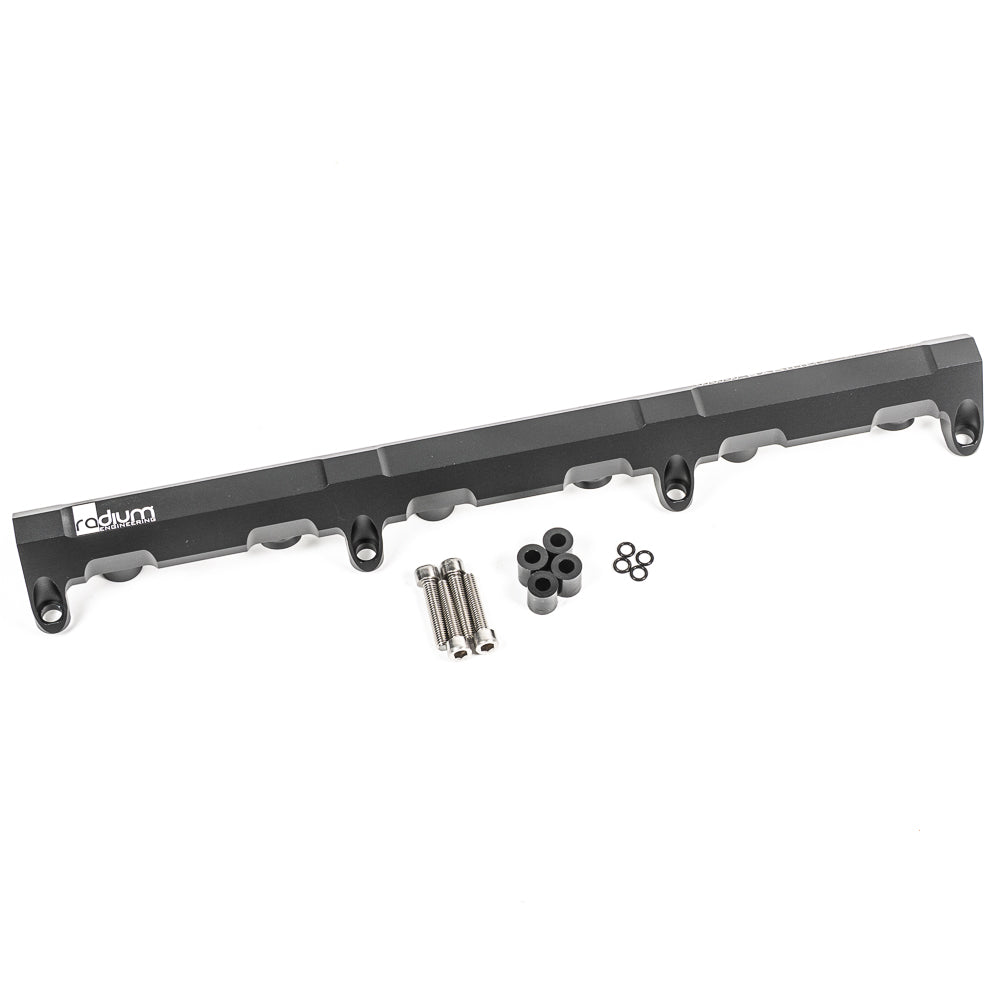

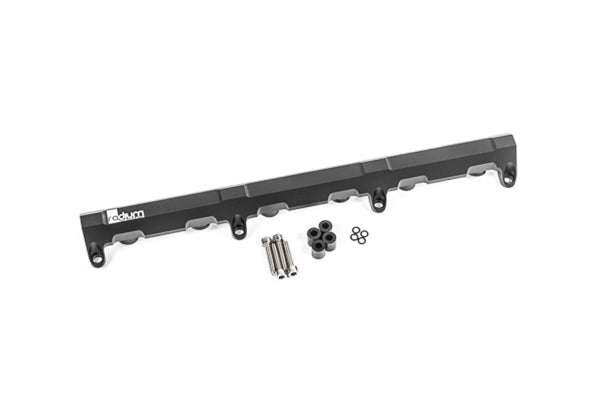

FUEL RAIL
Manufactured with A 0.7' large internal bore, the Radium Engineering fuel rail can support all necessary engine power requirements and is fully compatible with alternative fuels.

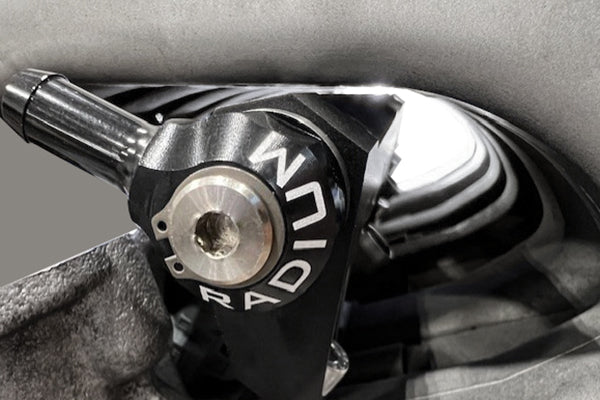

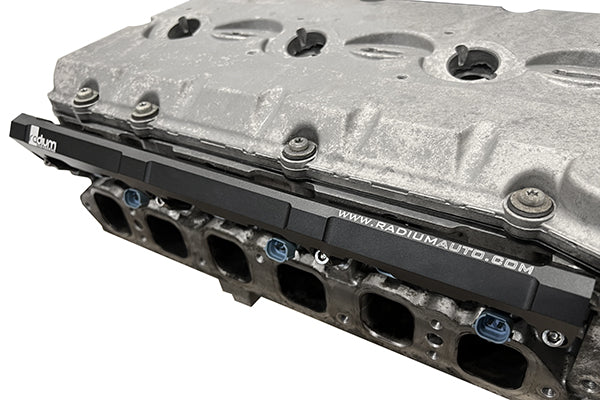

> As shown above, there is just enough clearance with the OEM intake manifold when using OEM height fuel injectors. <img src= INJECTORS

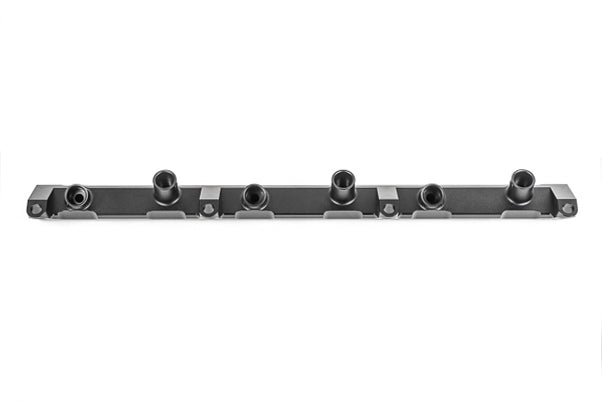

Like the OEM fuel rails, the injector bores are 14mm ID so factory injectors (or any equivalent aftermarket injector) can be used.

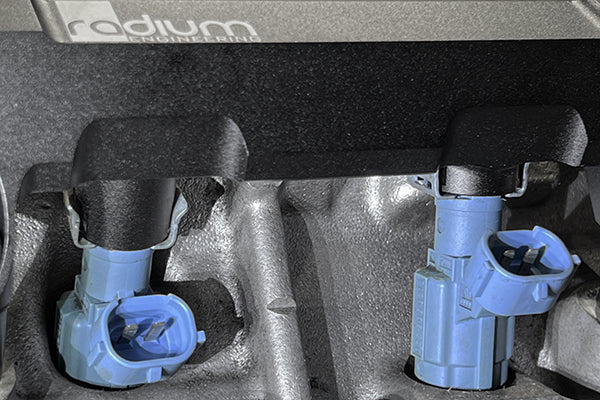

> As shown below, the factory injector retaining clips can be reused. <img src= FEATURES
-Lightweight aluminum construction
-Inner bore diameter: 0.7 inch
-Anodized surface finish for wear and corrosion resistance
-No special tools required for installation
-Thermal insulating spacers

>
