COMPATIBILITY

• 98-06 Audi TT
• 96-03 Audi A3
• 96-06 Audi A4
• 98-04 Audi A6
• 99-03 Audi S3
• 99-08 Seat Ibiza Cupra
• 08-10 Seat Exeo
• 99-05 Volkswagen Golf
• 00-05 Volkswagen Jetta
• 98-05 Volkswagen Passat
• 06-08 Volkswagen Polo GTI
• 99-05 Volkswagen Beetle

Fits turbo and non turbo 1.8L 20V engines

OVERVIEW

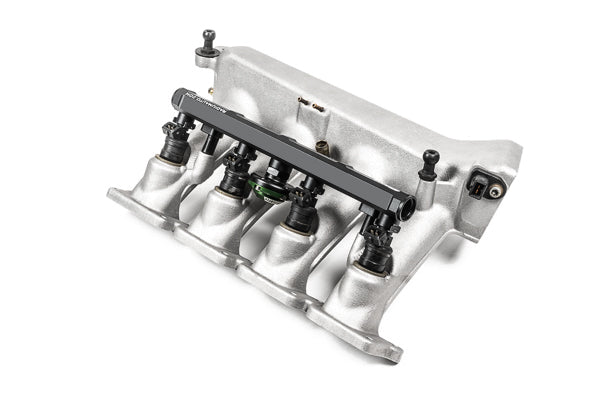

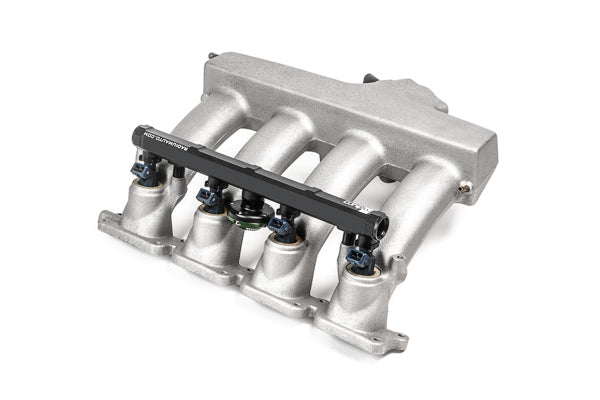

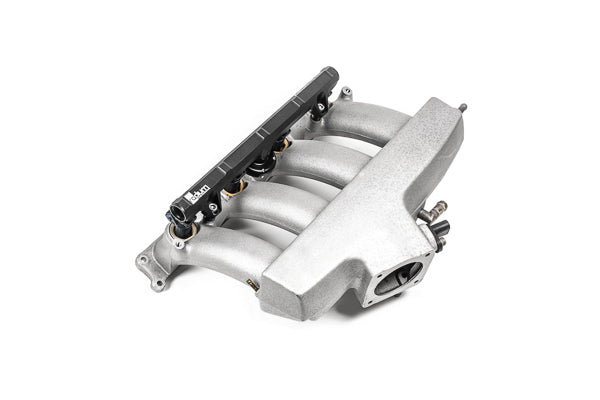

Manufactured with A 0.7" large internal bore, the Radium Engineering fuel rail can support all necessary engine power requirements. Proper sized thermal insulating spacers and stainless steel hardware is provided making this fuel rail compatible with many different intake manifolds.

FUEL INJECTOR COMPATIBILITY

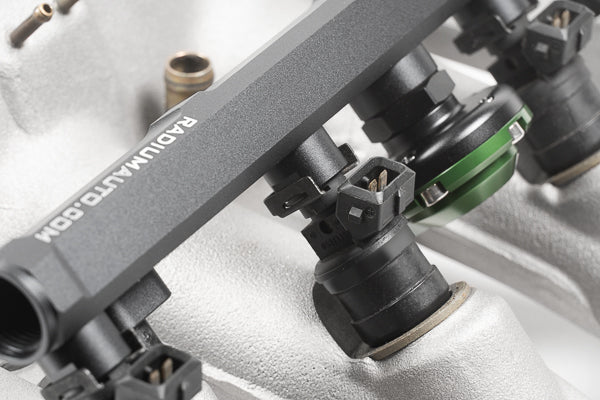

Like the OEM fuel rails, the injector bores are 14mm ID so factory injectors, or any OEM equivalent aftermarket injector, can be used. Aftermarket injectors must match the OEM height and o-ring dimensions. Radium does not make injector recommendations other than stating "OEM equivalent".

PORTS AND FITTINGS

The fuel rail ports are tapped for 8AN ORB fittings.

• 8AN ORB Adapter Fittings can be found HERE
• 8AN ORB Direct Mount Regulators can be found HERE
• 8AN ORB Fuel Pulse Dampers can be found HERE
• Fuel Pressure Gauge Adapters can be found HERE


FEATURES

• Lightweight aluminum construction
• Inner bore diameter: 0.7 inch
• Anodized surface finish for wear and corrosion resistance
• Can be used to convert a returnless system
• No special tools required for installation

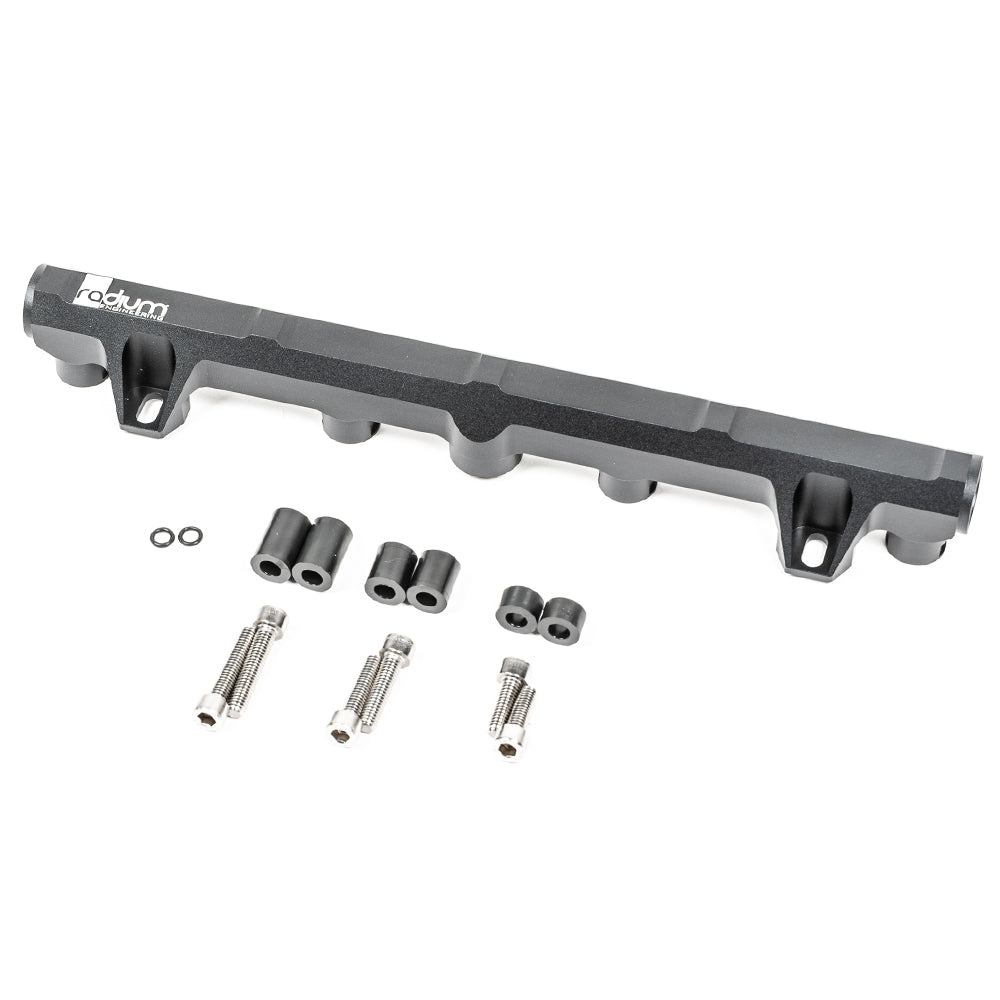

INCLUDES

• 1.8T 20V Fuel Rail
• Insulating Spacers, Low
• Insulating Spacers, Mid
• Insulating Spacers, High
• Rubber Spacer Retainers
• Stainless Mounting Hardware
