Description

COMPATIBILITY

Mitsubishi Evolution X

OVERVIEW

Manufactured with a large 0.69" internal bore, the fuel rail can support all necessary engine power requirements.. The rail is CNC machined from solid 6061 aluminum and bright-dip anodized for a high quality surface finish. It is compatible with all fuel types including popular alcohol mixtures such as E85.

The optional plumbing kit is available to allow a simple installation connecting to the OEM feed hard line and fuel pressure regulator.

20-0112-12 Fuel Rail, EVO X

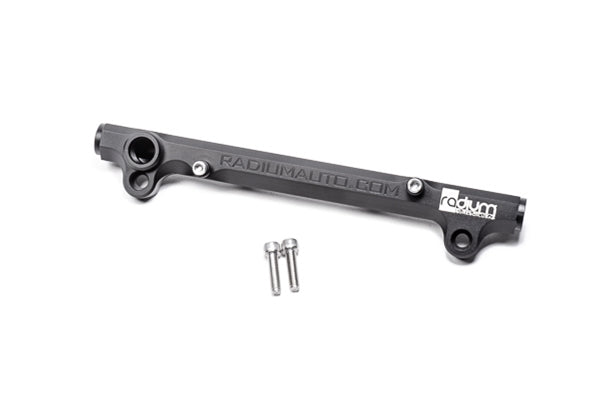

This basic kit includes only the items shown in the picture below. Replacement stainless steel fuel rail bolts and FPR line bolts are included. All fittings must be purchased separately.

FUEL INJECTOR COMPATIBILITY

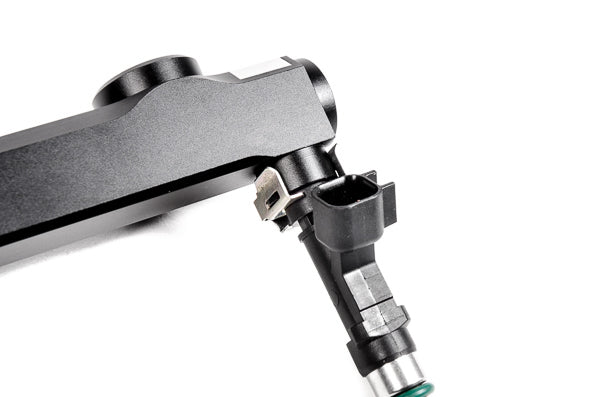

This fuel rail is compatible with factory or OEM equivalent fuel injectors. This means that the injectors used must match the OEM height and o-ring dimensions. If upgrading fuel injectors, consult your aftermarket injector supplier for details. Radium Engineering cannot specify any further injector dimensions other than stating "OEM equivalent".

PORTS AND FITTINGS

All three fuel rail ports are tapped for 8AN ORB fittings.

8AN ORB Adapter Fittings can be found HERE
8AN ORB Direct Mount Regulators can be found HERE
8AN ORB Fuel Pulse Dampers can be found HERE
Fuel Pressure Gauge Adapters can be found HERE

Appropriate fittings must be selected based on the specific application. Ample space around the fuel rail port(s) is necessary for larger accessories such as fuel pressure regulators, fuel pressure gauges, and fuel pulse dampers. To verify clearance, the dimensional drawings on the product pages can be used as a reference guide.
