COMPATIBILITY
20-0119-12 Fuel Rail, EVO 4-9
- Mitsubishi Evolution IV (4)
- Mitsubishi Evolution V (5)
- Mitsubishi Evolution VI (6)
- Mitsubishi Evolution VII (7)
- Mitsubishi Evolution VIII (8)
- Mitsubishi Evolution IX (9)
20-0119-PK Fuel Rail Plumbing, Mitsubishi EVO 7-9
- Mitsubishi Evolution VII (7)
- Mitsubishi Evolution VIII (8)
- Mitsubishi Evolution IX (9)
20-1119-PK Fuel Rail Plumbing, Mitsubishi EVO 4-6
- Mitsubishi Evolution IV (4)
- Mitsubishi Evolution V (5)
- Mitsubishi Evolution VI (6)
FUEL INJECTORS
There are two type of fuel rails made by Radium: upgrade rails and top feed conversion rails. Upgrade rails only upgrade the rail and the OEM fuel injectors can be reused. If an upgrade to the injectors is desired, they must be equivalent to the OEM injector, meaning they must be the same height and the upper & lower O-rings must match the OEM diameters and styles. Top feed conversion rails are used to convert a vehicle that has side feed (or sometimes air-assist) injectors over to a top feed injector.
This fuel rail is an upgrade rail. OEM or OEM equivalent injectors must be used.
Radium does not make fuel injector recommendations.
- Consult your tuner for injector brand or flow rate recommendations.
- Consult the injector manufacturer for a part number that has the correct dimensions.
OVERVIEW
20-0119-12 Fuel Rail, EVO 4-9

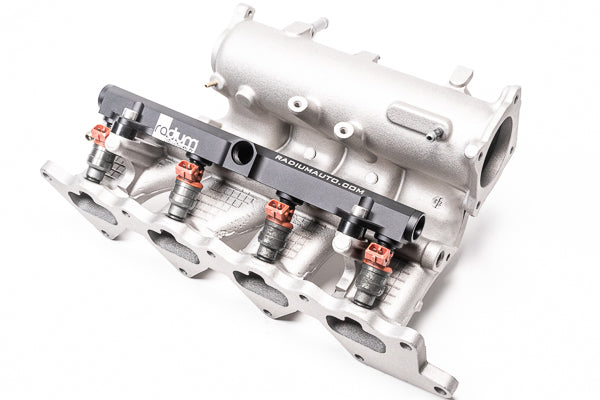

For the Mitsubishi Evolution 4 through 9, this fuel rail is manufactured with a large 0.69" internal bore to support all necessary engine power requirements. The rail is CNC machined from solid 6061 aluminum, anodized and laser etched for a high quality surface finish. It is compatible with all fuel types including popular alcohol mixtures such as E85.

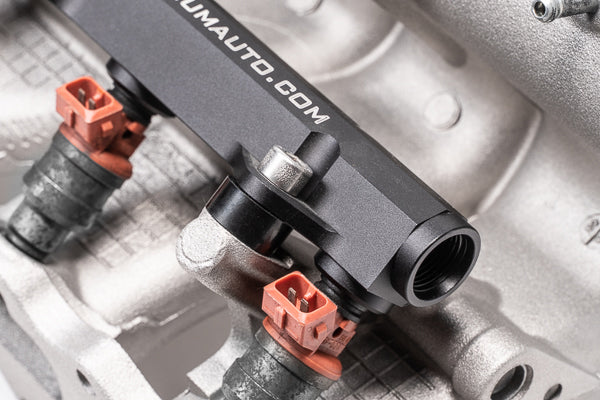

The fuel rail ports are tapped for 8AN ORB fittings.
- 8AN ORB Adapter Fittings can be found HERE
- 8AN ORB Direct Mount Regulators can be found HERE
- 8AN ORB Fuel Pulse Dampers can be found HERE
- Fuel Pressure Gauge Adapters can be found HERE
Appropriate fittings must be selected based on the specific application. Ample space around the fuel rail port(s) is necessary for larger accessories such as fuel pressure regulators, fuel pressure gauges, and fuel pulse dampers. To verify clearance, the dimensional drawings on the product pages can be used as a reference guide.
20-0119-PK Fuel Rail Plumbing, Mitsubishi EVO 7-9
The plumbing kit includes the items in the image below and allows easy hook-up of the fuel rail with factory feed system and factory regulator.
20-1119-PK Fuel Rail Plumbing, Mitsubishi EVO 4-6
The plumbing kit includes the items in the image below and allows easy hook-up of the fuel rail with factory feed system and factory regulator.
INCLUDED

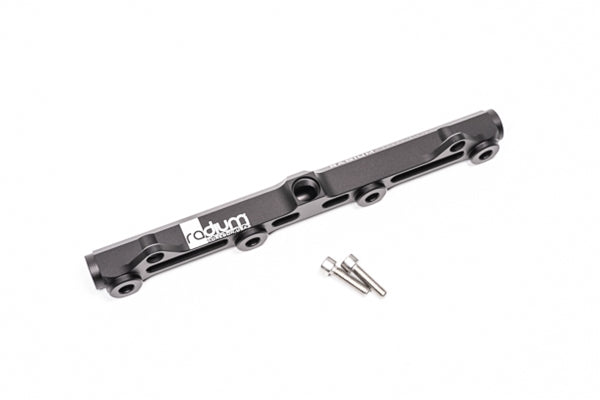

20-0119-12 Fuel Rail, EVO 4-9
- Anodized billet aluminum fuel rail
- Stainless steel mounting hardware

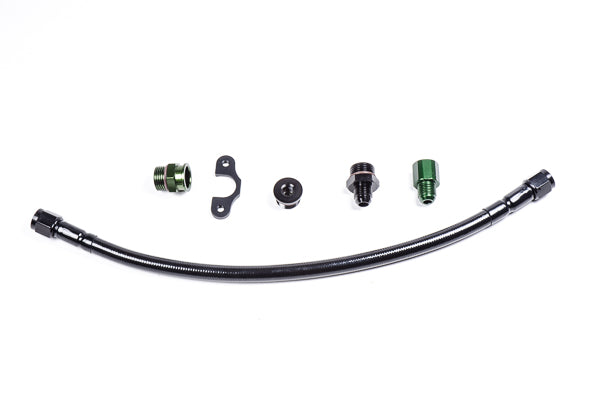

20-0119-PK Fuel Rail Plumbing, Mitsubishi EVO 7-9
- M14 inverted flare to 6AN male fitting
- 8AN ORB plug
- 8AN ORB to 6AN male fitting
- FPR adapter
- PTFE hose

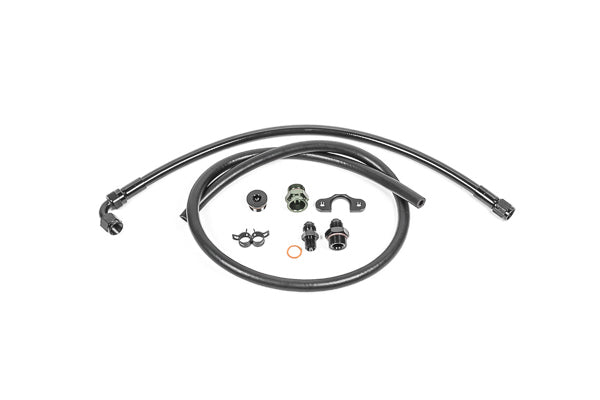

20-1119-PK Fuel Rail Plumbing, Mitsubishi EVO 4-6
- 6AN male to M12 fitting
- 8AN ORB plug
- 8AN ORB to 6AN male fitting
- FPR adapter
- 1/4" Spring clamps
- PTFE Hose
- 1/4" PCV/Fuel Hose
ADDITIONAL IMAGES
Fuel Rail, Mitsubishi EVO 4-9
