COMPATIBILITY

All Honda B-series intake manifolds, excluding B20 variations.

OVERVIEW

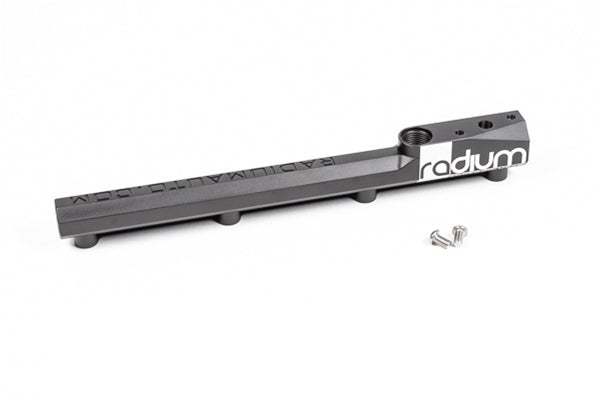

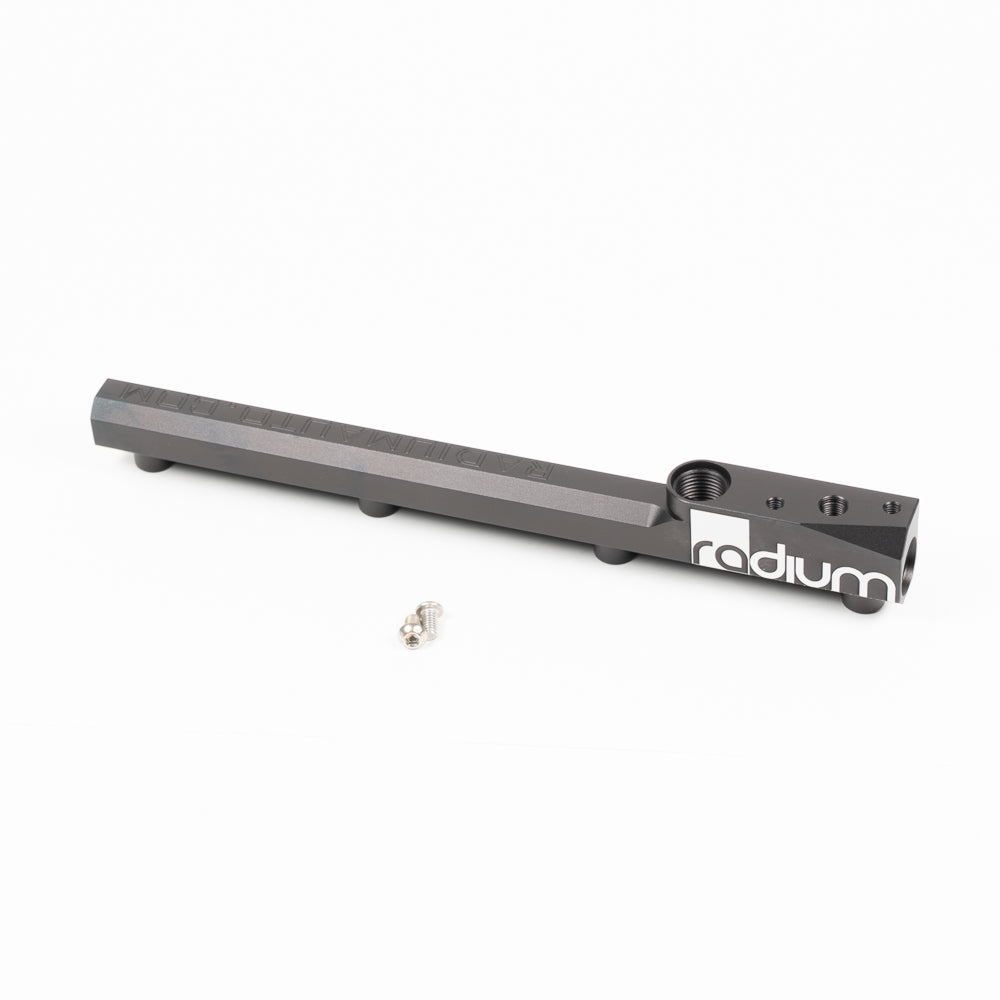

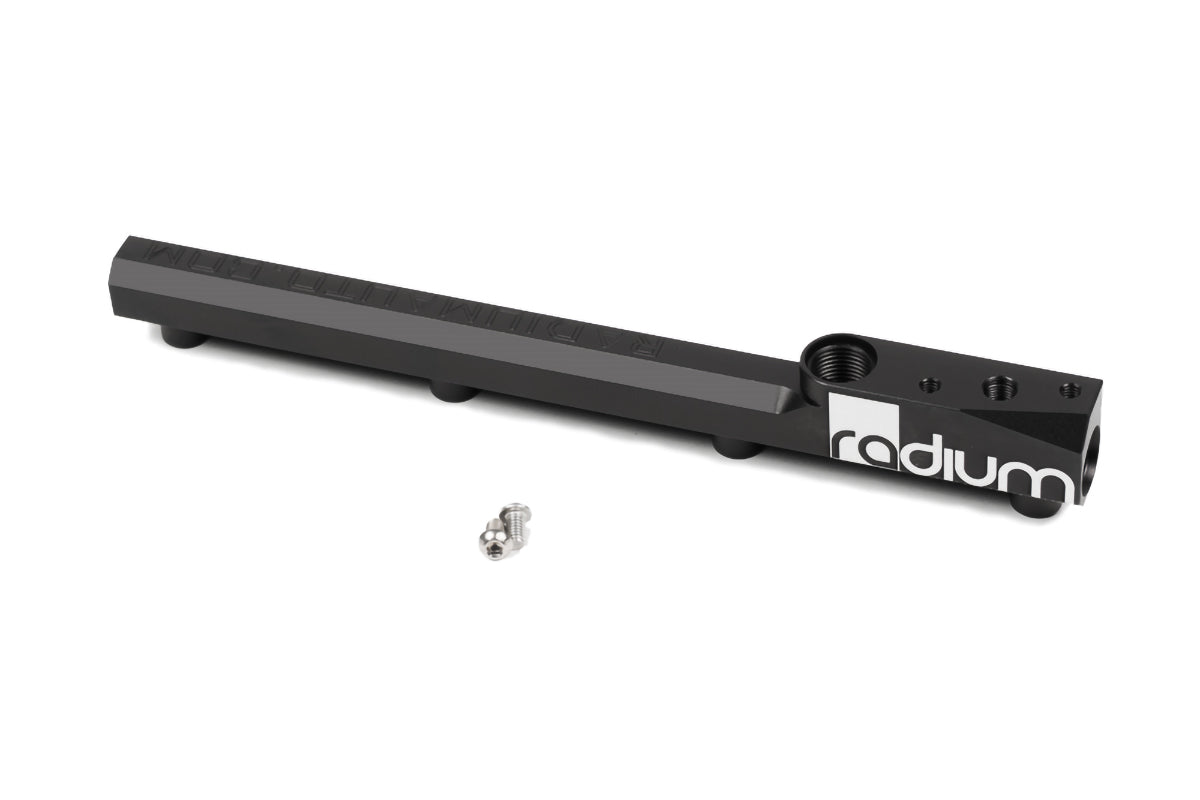

Manufactured with a large internal bore, the fuel rail can support all necessary engine power requirements. They are CNC machined from 6061 aluminum, anodized, and laser etched for a high quality surface finish. Like the OEM fuel rails, the injector bores are 11mm ID so factory injectors, or any equivalent aftermarket injector, can be used.

INDEPENDENT INSTALLATION VIDEO

FUEL INJECTORS

There are two type of fuel rails made by Radium: upgrade rails and top feed conversion rails. Upgrade rails only upgrade the rail and the OEM fuel injectors can be reused. If an upgrade to the injectors is desired, they must be equivalent to the OEM injector, meaning they must be the same height and the upper & lower o-rings must match the OEM diameters and styles. Top feed conversion rails are used to convert a vehicle that has side feed (or sometimes air-assist) injectors over to a top feed injector.

This fuel rail is an upgrade rail. OEM or OEM equivalent injectors must be used.

Radium does not make fuel injector recommendations.

• Consult your tuner for injector brand or flow rate recommendations.
• Consult the injector manufacturer for a part number that has the correct dimensions.

20-0370-02 Fuel Rail Honda B-Series PORTS AND FITTINGS The fuel rail ports are tapped for 8AN ORB and 1/8 NPT. 8AN ORB Adapter Fittings can be found HERE 8AN ORB Direct Mount Regulators can be found HERE 8AN ORB Fuel Pulse Dampers can be found HERE 1/8 NPT Adapter Fittings can be found HERE Fuel Pressure Gauge Adapters can be found HERE Appropriate fittings must be selected based on the specific application. Ample space around the fuel rail port(s) is necessary for larger accessories such as fuel pressure regulators, fuel pressure gauges, and fuel pulse dampers. To verify clearance, the dimensional drawings on the product pages can be used as a reference guide. INCLUDES Anodized Aluminum Fuel Rail Stainless hardware

20-0370-PK Fuel Rail Plumbing Kit Honda B-Series The plumbing kit includes the items shown in the image and allows easy hookup to the factory feed line at the OEM fuel filter. It is intended to be used with the factory pressure regulator, but can also work with an aftermarket regulator.
