• 19-24 Honda Talon 1000S2R
• 19-25 Honda Talon 1000X
• 16-21 Honda Pioneer 1000 M3
• 16-21 Honda Pioneer 1000 M5

• 19-24 Honda Talon 1000S2R
• 19-25 Honda Talon 1000X
• 16-21 Honda Pioneer 1000 M3
• 16-21 Honda Pioneer 1000 M5

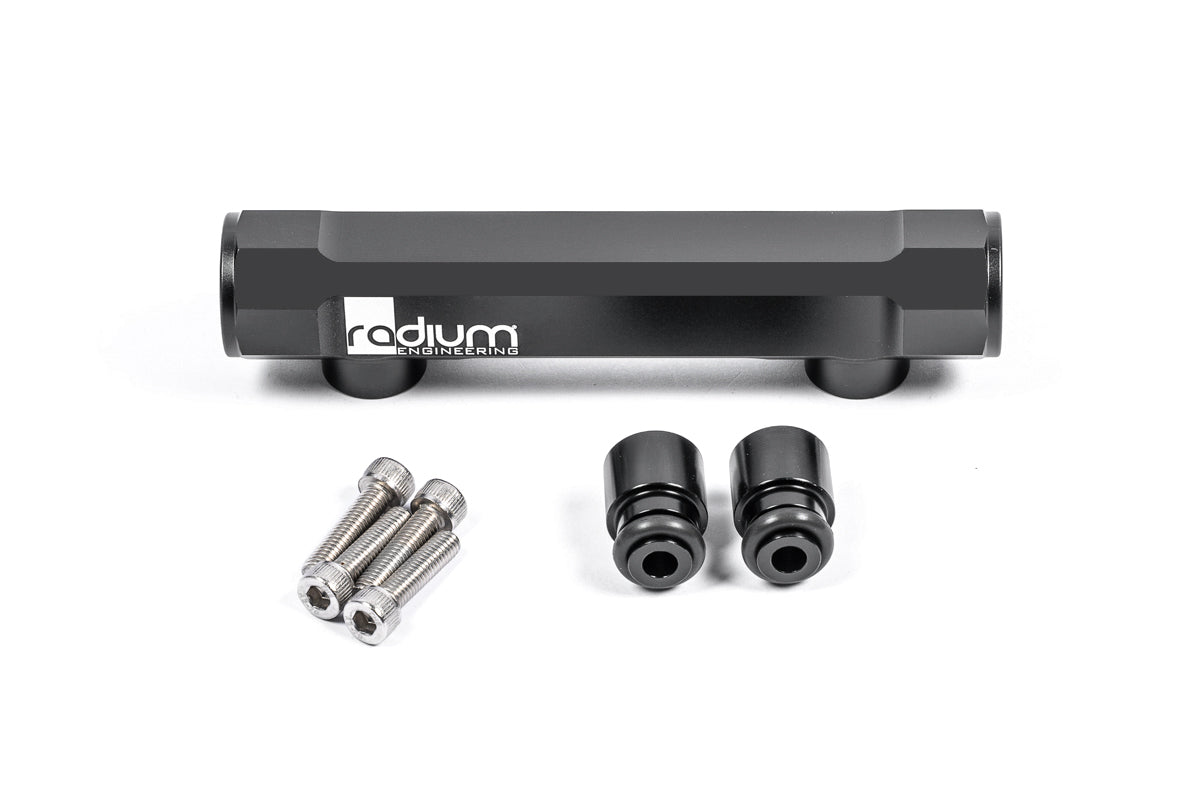

This large 8AN fuel rail is manufactured to support all necessary engine power requirements. The rail is CNC machined from solid 6061 aluminum, anodized and laser etched for a high quality surface finish. It is compatible with all fuel types including popular alcohol mixtures such as E85.

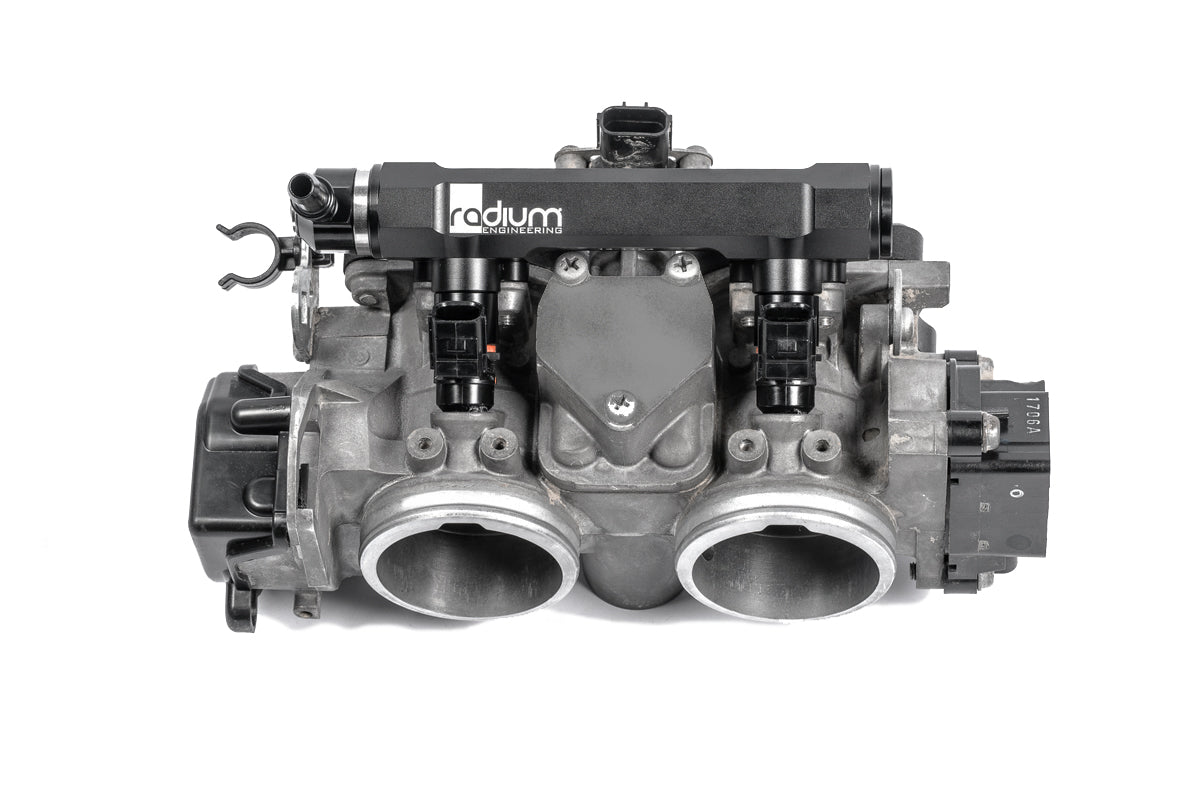

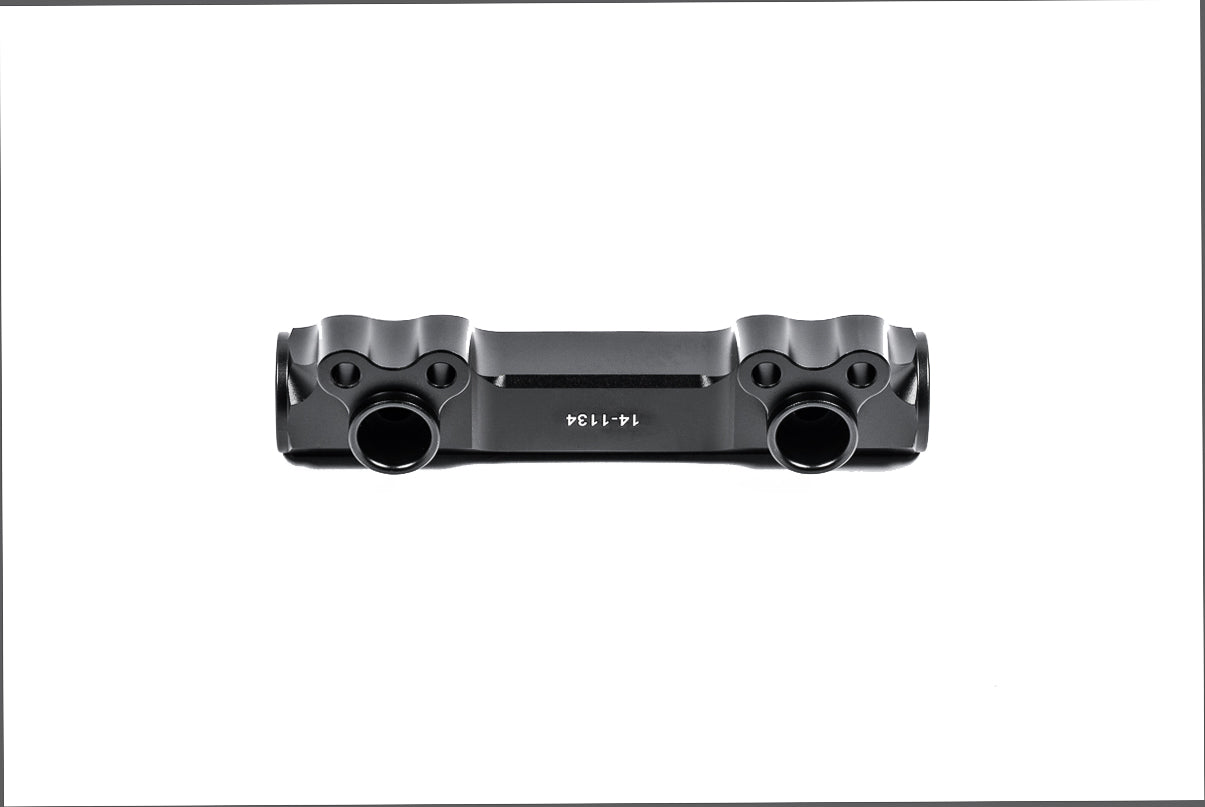

The fuel rail is compatible with popular Bosch EV14 injectors that use 14mm injector O-rings. Furthermore, factory injectors can be used when installing the provided billet injector hats.

The fuel rail ports are tapped for 8AN ORB fittings.

• 8AN ORB Adapter Fittings can be found HERE
• 8AN ORB Direct Mount Regulators can be found HERE
• 8AN ORB Fuel Pulse Dampers can be found HERE
• Fuel Pressure Gauge Adapters can be found HERE

Appropriate fittings must be selected based on the specific application. Ample space around the fuel rail port(s) is necessary for larger accessories such as fuel pressure regulators, fuel pressure gauges, and fuel pulse dampers. To verify clearance, the dimensional drawings on the product pages can be used as a reference guide.

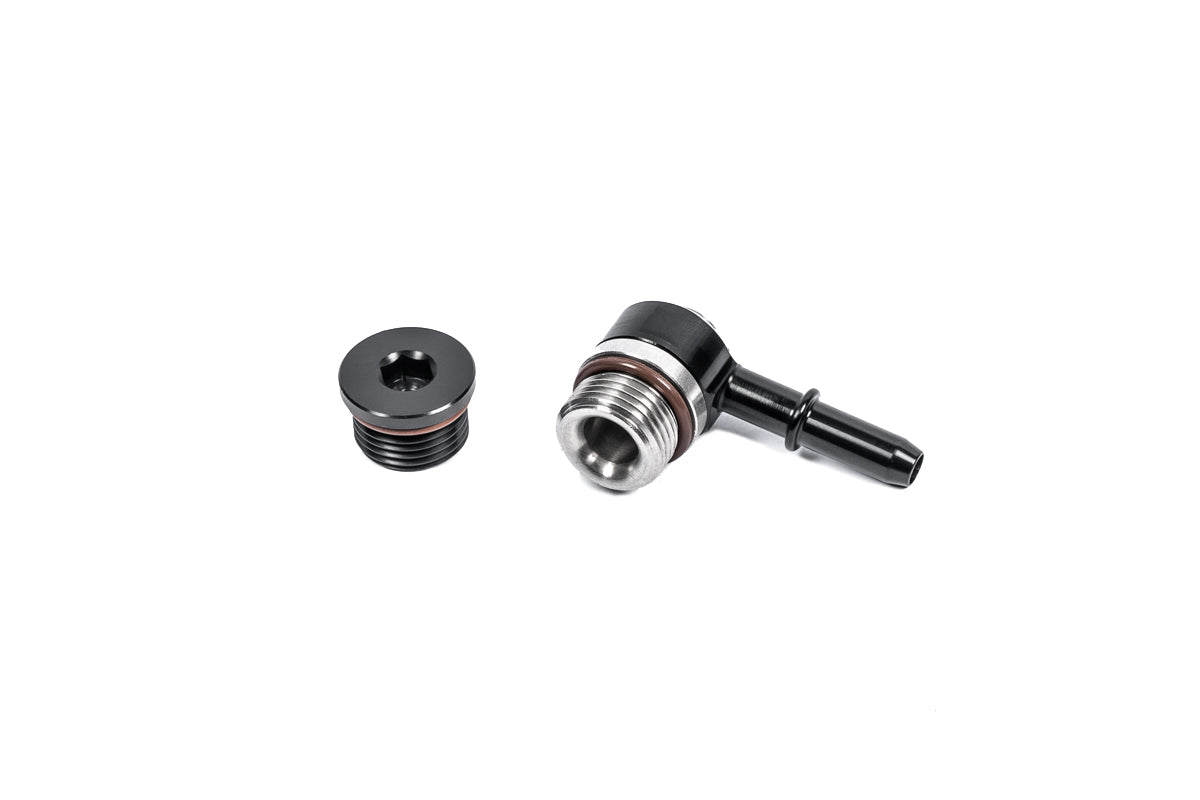

The plumbing kit includes the items in the image. It permits a plug and play connection to the factory fuel system.

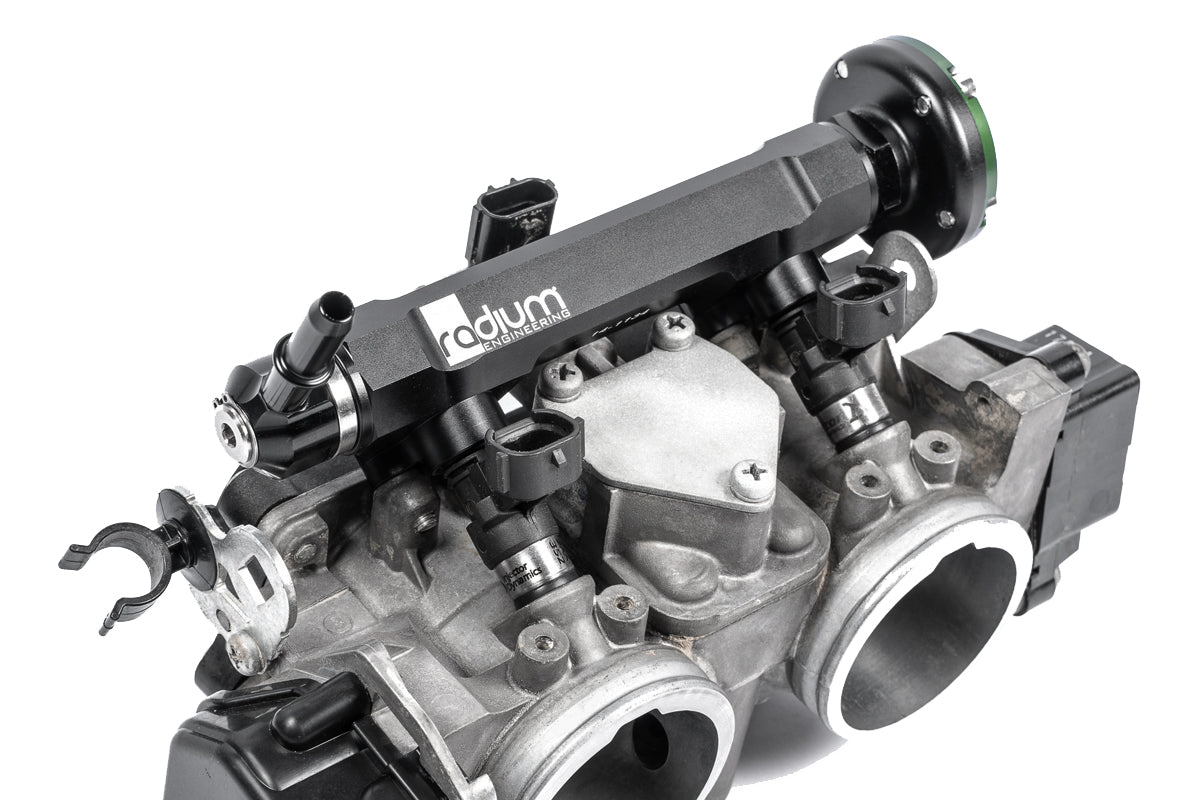

NOTE: An optional 20-0776 fuel pulse damper can be installed into the end port, as shown.
