Description

COMPATIBILITY

  • See details below for compatibility individually

OVERVIEW

Fuel rails can be upgraded for improved fuel flow and AN ORB threaded ports for custom fuel plumbing. This fuel rail and fuel rail plumbing kit are available for an assortment of M5x and S5x BMW engines. It is an upgrade over the OEM fuel rail. Rails are CNC machined from extruded 6063 aluminum, black anodized, and laser etched for a high quality surface finish. Plumbing kits include all necessary components to plumb the fuel rail into the vehicle.

FUEL INJECTORS

There are two type of fuel rails made by Radium: upgrade rails and top feed conversion rails.

  • Upgrade rails provide a new fuel rail that mimics original geometry, mounting, and the OEM fuel injectors can be reused. If an upgrade to the injectors is desired, they must be equivalent to the OEM injector, meaning they must be the same height and the upper & lower o-rings must match the OEM diameters and styles.
  • Top feed conversion rails are used to convert a vehicle that has side feed (or sometimes air-assist) injectors over to a top feed injector. These will require a universal injector and this section will have very specific instructions on what the dimensions of that injector must be. These need to be followed exactly.

This fuel rail is an upgrade rail. OEM or OEM equivalent injectors must be used.

Radium does not make specific fuel injector recommendations.

  • Consult your tuner for injector brand or flow rate recommendations.
  • Consult the injector manufacturer for a part number that has the correct dimensions.

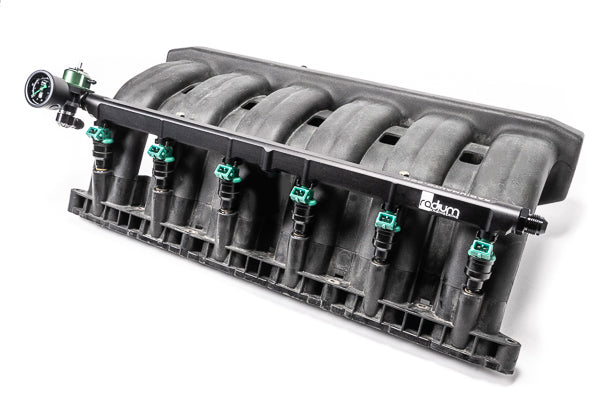

BMW M50


BMW M52 / S52

BMW M52TU / M54 / M56

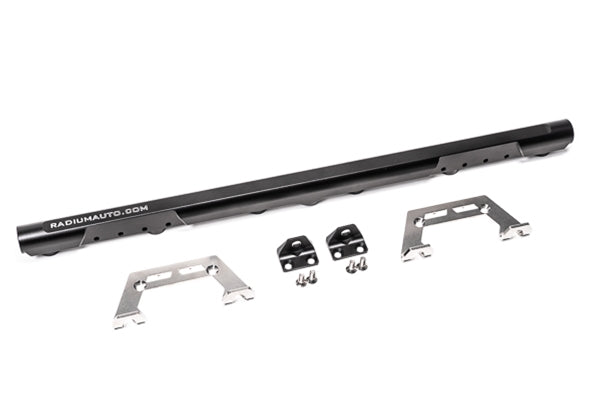

20-0770 Fuel Rail BMW M50 M52 M54 S50 S52

NOTE: not compatible with OEM M56 'coupling-type' fuel injectors.

PORTS AND FITTINGS

This fuel rail features three 8AN ORB ports, one in the center and one at each end. O-ring boss (ORB) fittings must be used in these ports. No fittings are included with this fuel rail and must be purchased separately.

  • 8AN ORB Adapter Fittings can be found HERE
  • 8AN ORB Direct Mount Regulators can be found HERE
  • 8AN ORB Fuel Pulse Dampers can be found HERE
  • Fuel Pressure Gauge Adapters can be found HERE.

Appropriate fittings must be selected based on the specific application. Ample space around the fuel rail port(s) is necessary for larger accessories such as fuel pressure regulators, fuel pressure gauges, and fuel pulse dampers. To verify clearance, the dimensional drawings on the product pages can be used as a reference guide.

INCLUDES

  • Black Anodized Laser Etched Fuel Rail
  • Mounting Feet for all Compatible Engines
  • Stainless Steel Mounting Hardware

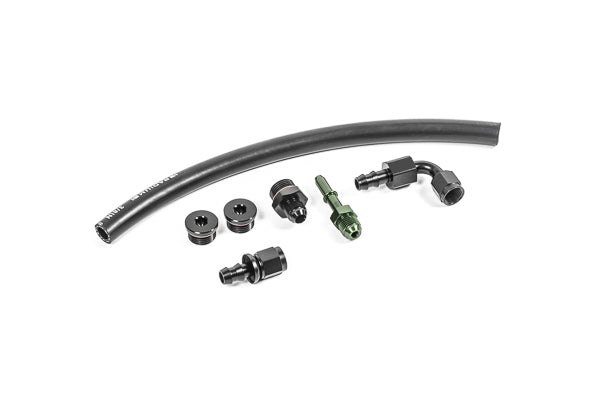

20-0807-PK Fuel Rail Plumbing BMW M54

COMPATIBILITY

  • 00-06 BMW 320i 320Ci
  • 00-06 BMW 325i, 325xi, 325Ci, 325ti
  • 00-06 BMW 330i, 330xi, 330Ci
  • 00-05 BMW 520i
  • 00-05 BMW 525i, 525xi
  • 03-05 BMW 530i, 525xi
  • 00-02 BMW Z3
  • 00-06 BMW Z4
  • 03-06 BMW X3
  • 00-06 BMW X5
  • 02-05 730i, 730Li
  • 00-02 Wiesmann MF 30

This plumbing kit is ONLY compatible with the BMW M54 (returnless fuel system). It mimics the OEM fuel rail feed line using 6AN hose and fittings.

INCLUDES

  • 8AN ORB to 6AN Male
  • 8AN ORB Plugs (x2)
  • 6AN to SAE Quick Connector
  • 6AN Straight PushLok Hose End
  • 6AN 90 Deg PushLok Hose End
  • 6AN EFI PushLok 3/8' Hose

Fuel Rail, BMW M50 M52 M54 S50 S52

$0.00
Shipping calculated at checkout.

Install Instructions PDFs

Installation Instructions (PDF)
