COMPATIBILITY

20-0301 FPR Adapter 8AN ORB 11mm Bore 39mm Spacing M6

Mazda MX-5 B6 Fuel Pressure Regulator
Mazda MX-5 BP Fuel Pressure Regulator
Mazda MX-5 BP Fuel Pulse Damper
Mitsubishi EVOX 4B11T Fuel Pressure Regulator
Toyota 1GR-FE Fuel Pressure Regulator
Toyota 2JZ-GE Fuel Pressure Regulator
Toyota 2JZ-GTE Fuel Pressure Regulator
Toyota 2RZ-FE Fuel Pressure Regulator
Toyota 2UZ-FE Fuel Pressure Regulator
Toyota 3RZ-FE Fuel Pressure Regulator
Toyota 3S-GTE (Gen4-5) Fuel Pressure Regulator
Saab 9-2X Aero 2.0L Fuel Pressure Regulator
Subaru EJ20 GDA WRX Fuel Pressure Regulator
Subaru EJ221 Fuel Pressure Regulator
Subaru EJ222 Fuel Pressure Regulator
Subaru EJ223 Fuel Pressure Regulator
Subaru EZ30 Phase-I Fuel Pressure Regulator
Suzuki G16B Fuel Pressure Regulator

20-0302 FPR Adapter 8AN ORB 16mm Bore 39mm Spacing M6

Eagle Talon 4G63 (2G DSM) Fuel Pressure Regulator
Mitsubishi Eclipse 4G63 (2G DSM) Fuel Pressure Regulator
Mitsubishi EVO IV Fuel Pressure Regulator
Mitsubishi EVO V Fuel Pressure Regulator
Mitsubishi EVO VI Fuel Pressure Regulator
Mitsubishi EVO VII Fuel Pressure Regulator
Mitsubishi EVO VIII Fuel Pressure Regulator
Mitsubishi EVO IX Fuel Pressure Regulator

20-0303 FPR Adapter 8AN ORB 11mm Bore 32mm Spacing M5

Nissan RB26DETT Fuel Pressure Regulator
Nissan RB25DET Fuel Pressure Regulator
Nissan RB20DET Fuel Pressure Regulator
Nissan SR20DET Fuel Pressure Regulator
Nissan KA24DE Fuel Pressure Regulator
Nissan CA18DET Fuel Pressure Regulator
Saab 9-2X Aero 2.5L Fuel Pressure Regulator
Subaru EJ20X GC8 WRX Fuel Pressure Regulator
Subaru EJ22E Fuel Pressure Regulator
Subaru EJ22T Fuel Pressure Regulator
Subaru EJ251 Fuel Pressure Regulator
Subaru EJ255 Fuel Pressure Regulator
Polaris RZR Fuel Pressure Regulator
Mazda RX-7 13B-REW Fuel Pressure Regulator

20-0595 FPR Adapter 8AN ORB 7mm Bore 39mm Offset M6

Honda D16Y7 Fuel Pressure Regulator
Honda D16Y8 Fuel Pressure Regulator
Honda B20 Fuel Pressure Regulator
Honda F20A4 Fuel Pressure Regulator
Honda F20B Fuel Pressure Regulator
Honda F20C Fuel Pressure Regulator
Honda F22C1 (04-05 Only) Fuel Pressure Regulator
Honda F23A Fuel Pressure Regulator

20-0603 FPR Adapter 8AN ORB 7mm Bore 39mm Spacing M6

Honda D16Z6 Fuel Pressure Regulator
Honda B16 Fuel Pressure Regulator
Honda B18B Fuel Pressure Regulator
Honda F22A1 Fuel Pressure Regulator
Honda F22A4 Fuel Pressure Regulator
Honda F22A6 Fuel Pressure Regulator
Honda H22A1 Fuel Pressure Regulator
Honda H22A4 Fuel Pressure Regulator
Honda H23 Fuel Pressure Regulator

20-0842 FPR Adapter 8AN ORB 16mm Bore 50mm Spacing M6

Eagle Talon 4G63 (1G DSM) Fuel Pressure Regulator
Plymouth Laser 4G63 (1G DSM) Fuel Pressure Regulator
Mitsubishi Eclipse 4G63 (1G DSM) Fuel Pressure Regulator
Mitsubishi Galant VR4 Fuel Pressure Regulator

14-0285 8AN ORB to M12x1.25 Female

Toyota 1JZ-GTE Non VVT-i Fuel Pressure Regulator
Toyota 1JZ-GTE VVT-i Fuel Pressure Regulator
Toyota 3S-GE (Gen1-3) Fuel Pressure Regulator
Toyota 3S-GTE (Gen1-3) Fuel Pressure Regulator
Toyota 1UZ-FE Fuel Pressure Regulator
Mazda RX-7 FC Series 4 Fuel Pressure Regulator

20-0459 FPD Adapter 8AN ORB 27mm Bore

Nissan VQ35HR Fuel Pulse Damper
Nissan VQ37VHR Fuel Pulse Damper
Nissan VQ40DE Fuel Pulse Damper
Nissan VR38DETT Fuel Pulse Damper

20-0460 FPD Adapter 8AN ORB 11mm Bore 42mm Spacing M6

Nissan VQ35DE Fuel Pulse Damper
Nissan VR38DETT Fuel Pulse Damper
Nissan VR38DETT Fuel Pressure Regulator

20-0663 8AN ORB to Toyota Pressure Sensor Adapter

2022+ Toyota GR Corolla
2020+ Toyota GR Yaris
2018+ Toyota 2.0L Engines
2018+ Toyota 2.5L Engines

20-1303 Ford Sensor Adapter 8AN ORB 16mm Bore 41mm Offset Spacing M5

05-10 Ford Mustang Fuel Pressure Sensor
04-10 Ford Explorer Fuel Pressure Sensor
05-09 Ford Focus Fuel Pressure Sensor
05-08 Ford F-150 Fuel Pressure Sensor
05-10 Ford F-250 Fuel Pressure Sensor
05-10 Ford F-350 Fuel Pressure Sensor
11-14 Shelby GT500 Fuel Pressure Sensor

20-1459 FPD Adapter 8AN ORB 27mm Bore

Nissan VK56DE Fuel Pulse Damper

OVERVIEW

These anodized billet 6061 aluminum adapter fittings allow an OEM fuel pressure regulator (FPR) or fuel pulse damper (FPD) to be reused in an application other than the OEM fuel rail. All fittings permit the unit to be clocked into the proper position.

20-0301 FPR Adapter 8AN ORB 11mm Bore 39mm Spacing M6

This fitting can adapt to virtually any fuel rail with an 8AN ORB female port and the necessary space around it to allow the FPR to fit. It is threaded M6x1.0mm where is accepts the FPR and has a 39mm hole spacing. Compatible FPR must have an 11mm bore and 39mm mount hole spacing.

20-0302 FPR Adapter 8AN ORB 16mm Bore 39mm Spacing M6

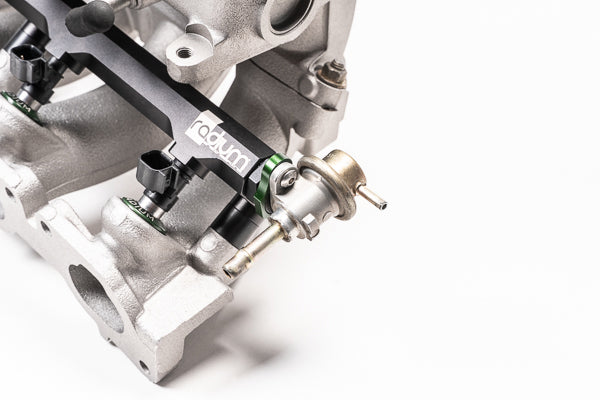

20-0303 FPR Adapter 8AN ORB 11mm Bore 32mm Spacing M5

This fitting can adapt to virtually any fuel rail with an 8AN ORB female port and the necessary space around it to allow the FPR to fit. It is threaded M5x0.8mm where is accepts the FPR and has a 32mm hole spacing. Compatible FPR must have an 11mm bore and 32mm mount hole spacing.

20-0595 FPR Adapter 8AN ORB 7mm Bore 39mm Offset M6

This fitting can adapt to virtually any fuel rail with an 8AN ORB female port and the necessary space around it to allow the FPR to fit. It is threaded M6x1.0mm where is accepts the FPR and has an offset 39mm hole spacing. Compatible FPR must have an 7mm bore and 39mm mount hole spacing.

20-0603 FPR Adapter 8AN ORB 7mm Bore 39mm Spacing M6

20-0842 FPR Adapter 8AN ORB 16mm Bore 50mm Spacing M6

This fitting can adapt to virtually any fuel rail with an 8AN ORB female port and the necessary space around it to allow the FPR to fit. It is threaded M6x1.0mm where is accepts the FPR and has a 50mm hole spacing. Compatible FPR must have a 16mm bore and 50mm mount hole spacing.

14-0285 8AN ORB to M12x1.25 Female

This fitting is used to adapt any FPR or sensor that is threaded M12x1.25 to an 8AN ORB female port. These metric FPR units should include a sealing washer to use when installing into the fitting.

20-0459 FPD Adapter 8AN ORB 27mm Bore

This fitting will adapt OEM pulse dampers commonly used in Nissan applications to an 8AN male thread. This can be installed into any 8AN ORB female port.

20-0460 FPD Adapter 8AN ORB 11mm Bore 42mm Spacing M6

This fitting can adapt to virtually any fuel rail with an 8AN ORB female port and the necessary space around it to allow the FPR to fit. It is threaded M6x1.0mm where is accepts the FPR and has a 42mm hole spacing. Compatible FPR must have an 11mm bore and 42mm mount hole spacing.

20-0663 8AN ORB to Toyota Pressure Sensor Adapter

Originally designed specifically for the 2022+ Toyota Corolla GR, this fitting can adapt to virtually any fuel rail with an 8AN ORB female port. This adapter clamps onto the OEM Toyota pressure sensor used in several Toyota applications with a 9.5mm bore.

20-1303 Ford Sensor Adapter 8AN ORB 16mm Bore 41mm Offset Spacing M5

This fitting can adapt to virtually any fuel rail with an 8AN ORB female port and the necessary space around it to allow the FPR to fit. It is threaded M56x0.8mm where is accepts the FPR and has an offset 41mm hole spacing. Compatible FPR must have a 16mm bore and 41mm mount hole spacing.

20-1459 FPD Adapter 8AN ORB 27mm Bore

This fitting will adapt OEM pulse dampers commonly used in Nissan applications to an 8AN male thread. This can be installed into any 8AN ORB female port.
