COMPATIBILITY

• F90000274
• Walbro/TI Automotive F90000285
• Walbro/TI Automotive F90000295⁽¹⁾
• TI Automotive E5LM (BKS1000 Brushless Controller Kit)⁽¹⁾
• TI Automotive E5LM (BKS1001 Brushless Controller Kit)⁽¹⁾
• Bosch Motorsports BR540⁽¹⁾
• Deatschwerks DW400⁽²⁾
• Deatschwerks DW440 (Brushless)

⁽¹⁾These pumps do not have an integrated check valve. Adapters with check valves are also available HERE
⁽²⁾Before May 2019, these pumps did not have an internal check valve. Adapters with check valves are also available HERE

OVERVIEW

Pump outlet adapters are used to convert the hose-barbed outlet of many fuel pumps to 6AN male.

The two billet aluminum adapter halves are secured together with stainless steel bolts that clamp tightly around the pump outlet. A stainless steel retainer and FKM O-ring seal for a leak free connection. All components are E85 compatible.

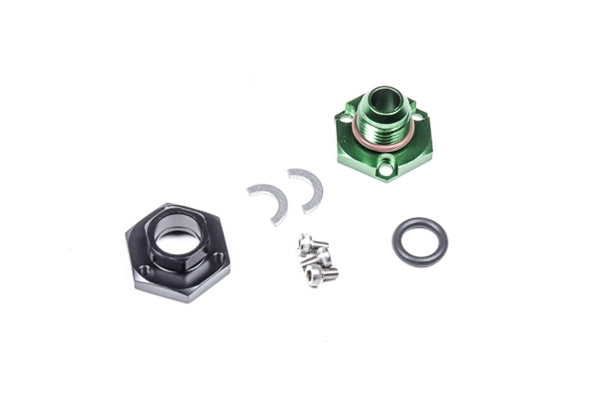

	20-0298 FUEL PUMP OUTLET ADAPTER This pump outlet adapter is identified by a green upper fitting. It was designed to be as short as possible without sacrificing flow. 20-0298 is 0.42' shorter than 20-0599 (below).

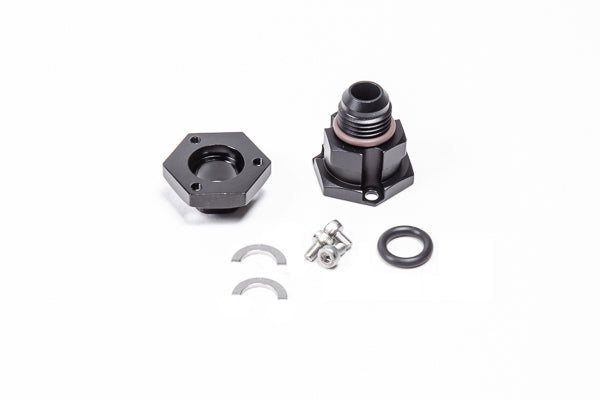

	20-0599 FUEL PUMP OUTLET ADAPTER, EXTENDED This pump outlet adapter is identified by a black upper fitting. It is slightly taller specifically to position the fuel pump in an advantageous height in the fuel tank. NOTE: 20-0599 is 0.42' taller than 20-0298 (above).
