COMPATIBILITY

• Refer to the details below for compatibility for each individual part

OVERVIEW

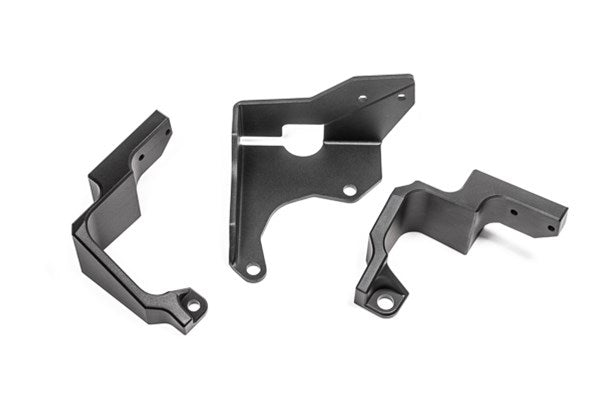

To install a Multi-Port Fuel Pressure Regulator into specific Corvettes, these mounting brackets locate onto the brake master cylinder studs and position the MPR to the inner side near the engine.

NOTES

• These mounts are specific to a Multi-Port Fuel Pressure Regulator
• Aftermarket fuel lines and fittings will need to be configured separately

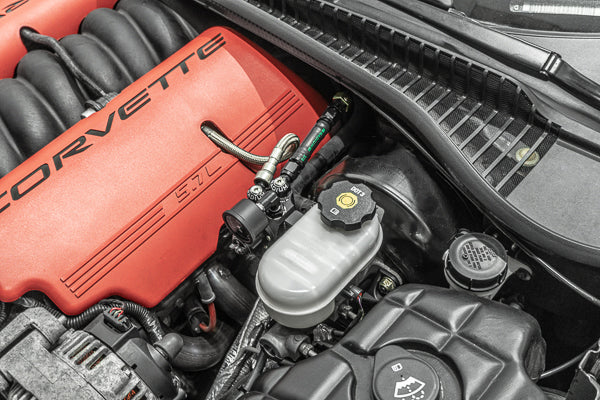

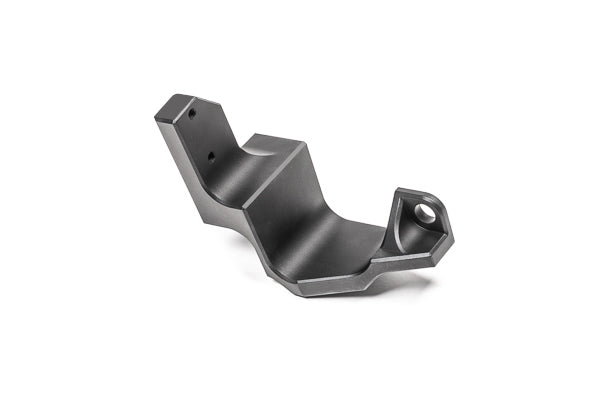

	13-0447 FPR Mount 97-08 Corvette COMPATIBILITY 97-08 Chevrolet Corvette Compatible with manual and automatic transmissions. This FPR mount features two vertical M6x1mm threaded holes 1.125" apart. For securing the regulator, the M6x1mm bolts provided with MPR can be used. INCLUDES Anodized Billet Aluminum Mount (x1)

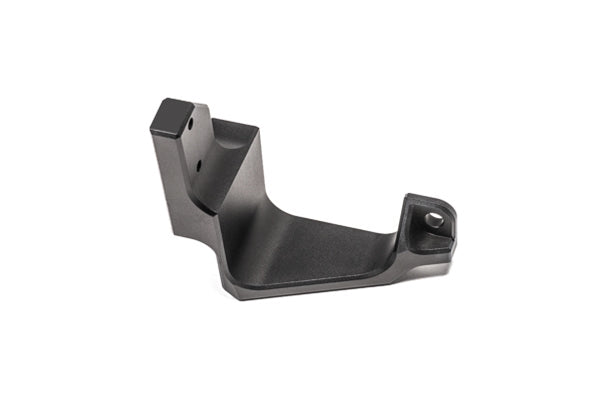

	13-0457 FPR Mount 09-13 Corvette COMPATIBILITY 09-13 Chevrolet Corvette Compatible with manual and automatic transmissions. This FPR mount features two vertical M6x1mm threaded holes 1.125' apart. For securing the regulator, the M6x1mm bolts provided with MPR-RA can be used. INCLUDES Anodized Billet Aluminum Mount (x1)

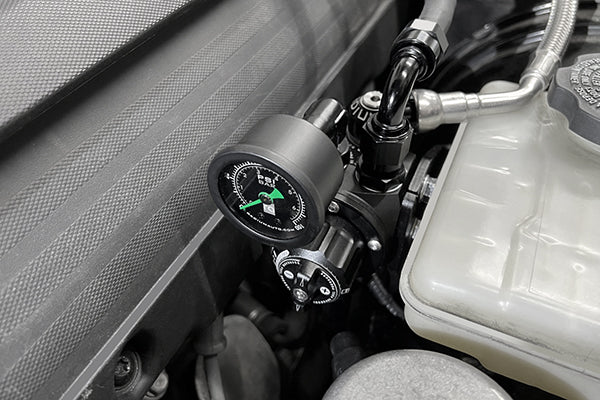

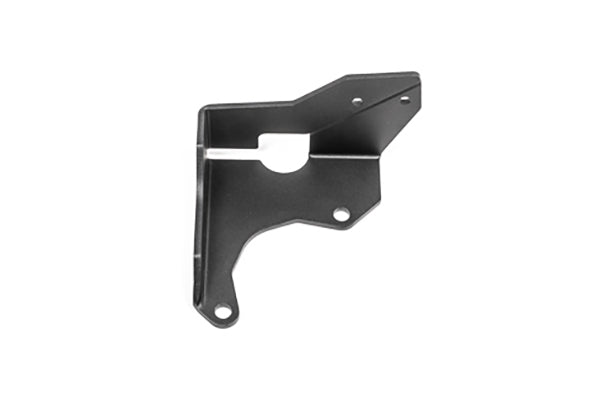

	13-1467 FPR Mount 14-19 Corvette COMPATIBILITY 14-19 Chevrolet Corvette Compatible with manual and automatic transmissions. This FPR mount features two vertical 6.5mm holes 1.125" apart. For securing the regulator, the M6x1mm bolts and nuts provided with MPR can be used. INCLUDES Anodized Aluminum Sheet Metal Mount (x1)
