OVERVIEW

This universal Radium Fuel Pressure Regulator (FPR) is built around the common OEM Bosch regulator inserts. These Bosch units are found in many applications, including:

• Audi 1.8L Turbo
• Ford Falcon BA, BF, FG XR6 Turbo
• Ford Territory Turbo
• FPV F6 Typhoon Turbo
• Volkswagen 1.8L Turbo

Radium also offers two versions that include a genuine Bosch regulator top in 3.0 Bar (43.5 psi) static and 4.0 Bar (58.2 psi) static. These Bosch regulator tops are vacuum referenced with a 1:1 ratio and are NOT adjustable.

The compact Radium Engineering billet aluminum FPR housing provides a convenient package for plumbing and mounting. The regulator top is secured with a stainless steel snap ring and can easily be removed using snap-ring pliers. The two main high pressure ports are threaded for 6AN ORB. The 6AN male return port is integrated into the housing. There is also a 1/8 NPT female port for a gauge, pressure transducer, etc. Each FPR housing is laser etched and anodized for a superior finish.

NOTES

• The exact min, static, and max pressures are influenced by the flow rate of the fuel pump being used
• These FPRs are tested using a common Walbro 255lph pump. If a higher flowing pump is used, the minimum pressure ratings may be higher than advertised
• For applications with more pump flow, consider using one of our adjustable high flow fuel pressure regulators

INCLUDES

• Billet 6061 Aluminum Housing
• 6AN Male Adapter Fitting
• 6AN ORB Plug Fitting
• 1/8-27 NPT Port Plug
• Integrated -6AN Male Return Port
• Stainless Steel Mounting Hardware
• Stainless Steel Snap Retaining Ring
• Anodized Aluminum Mounting Bracket

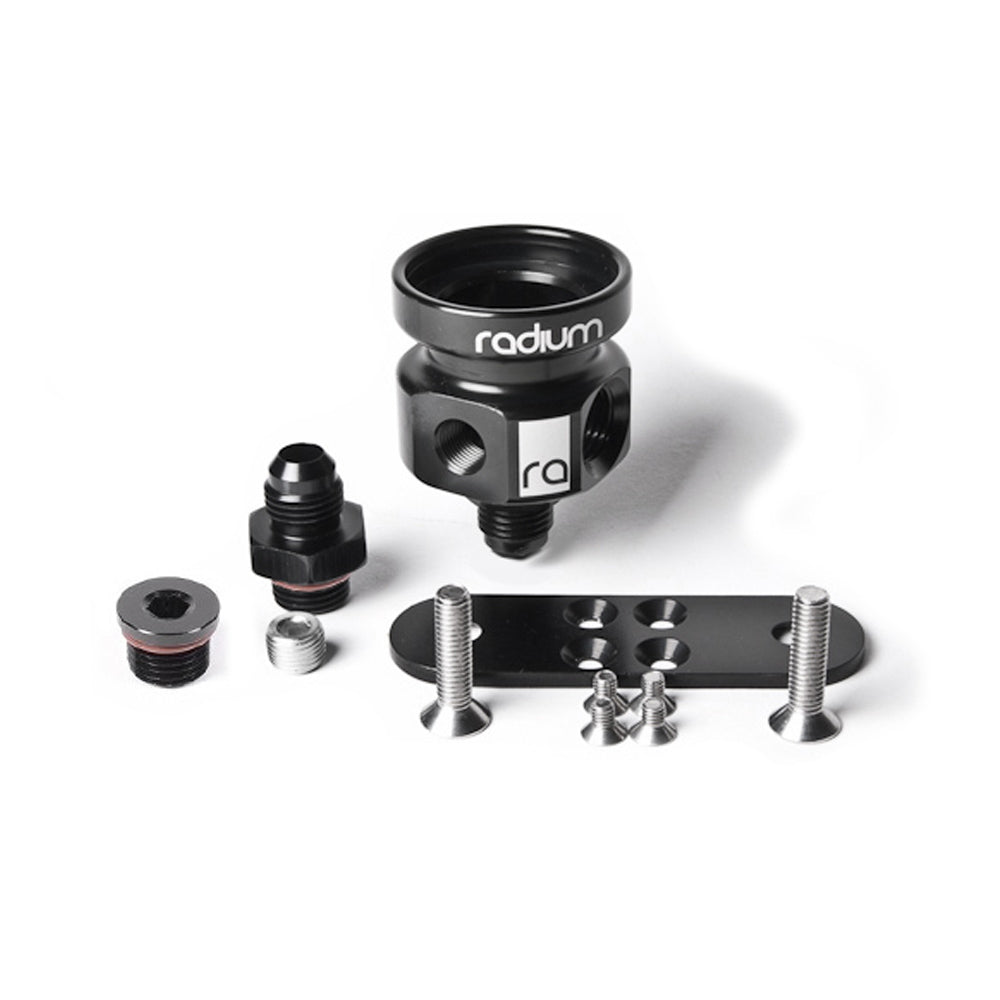

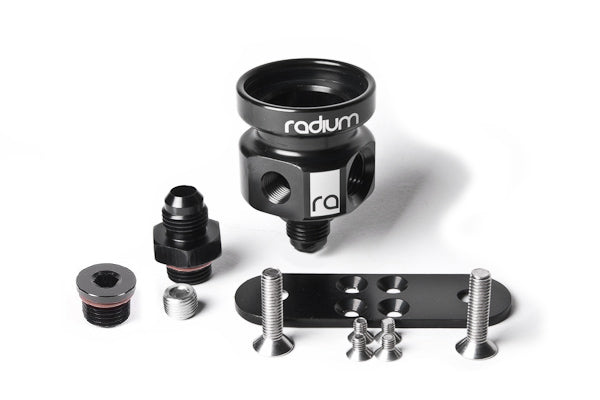

	20-0014 Fuel Pressure Regulator with No Top This unit does not include a regulator top insert and is intended for users who already have one. This option includes everything needed with the exception of the regulator top insert.
	20-0010-00 Fuel Pressure Regulator with 3.0Bar Bosch Top These come assembled with the Bosch regulator unit installed in the housing, as shown below. This unit is rated to 3 bar (43.5psi) at 255lph.

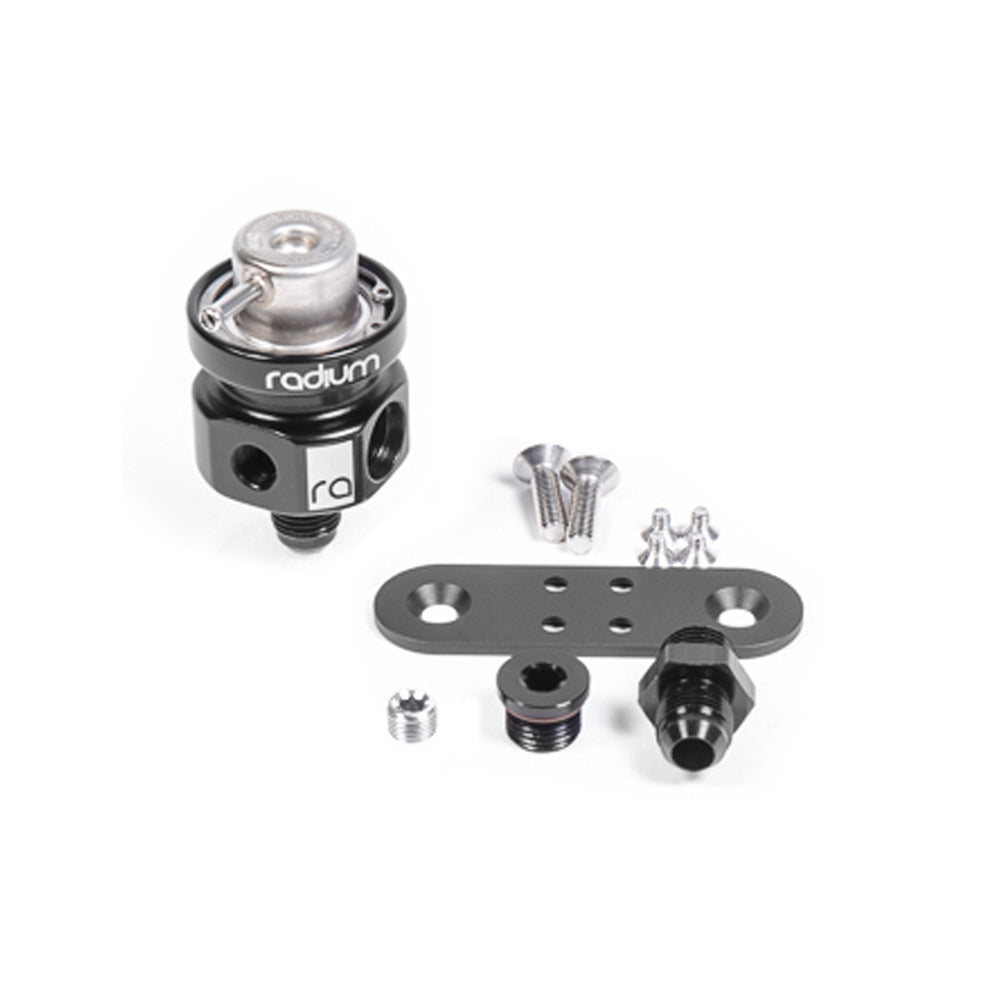

	20-0010-01 Fuel Pressure Regulator with 4.0Bar Bosch Top These come assembled with the Bosch regulator unit installed in the housing, as shown below. This unit is rated to 4 bar (58.2psi) at 255lph.
