OVERVIEW

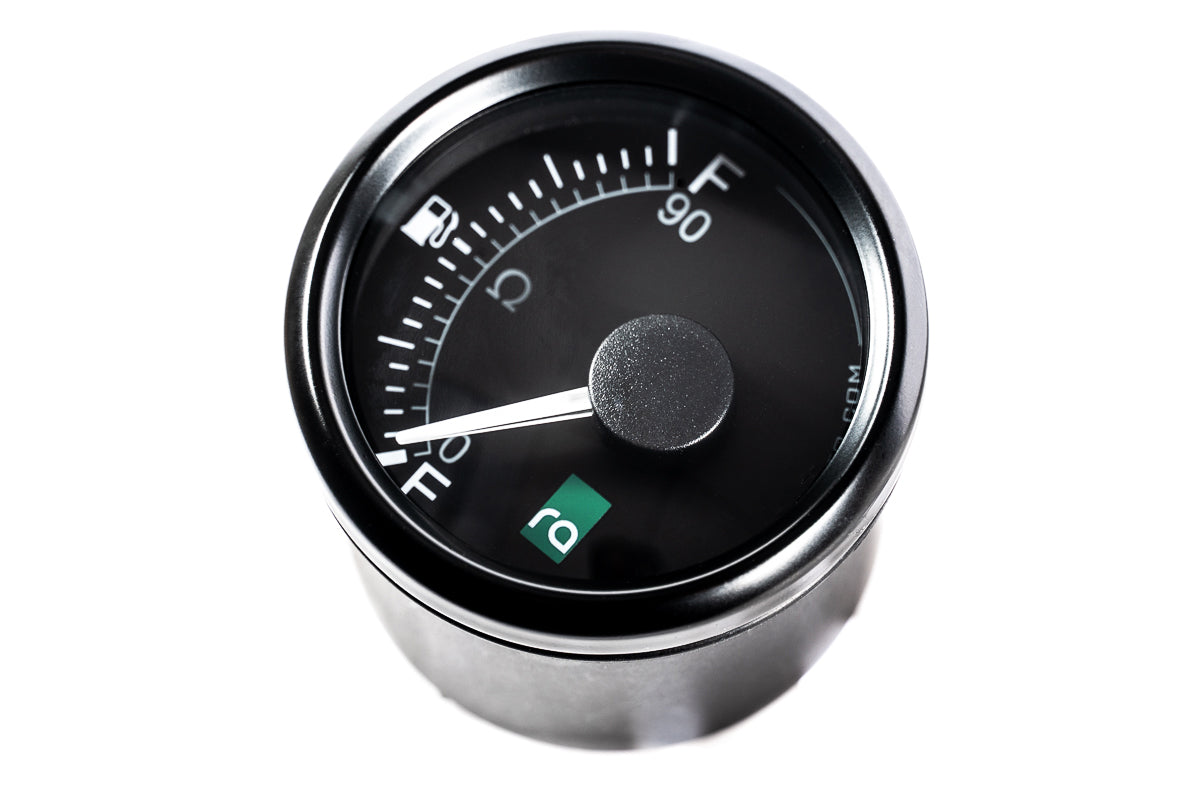

20-1847 Fuel Level Gauge, 0-90Ω
The fuel level gauge can be used with any 0-90 ohm fuel level sensor. Displays EMPTY to FULL and the corresponding 0-90Ω measurement. With a simple toggle of a button, there are 8 illuminated colors to choose:
- WHITE

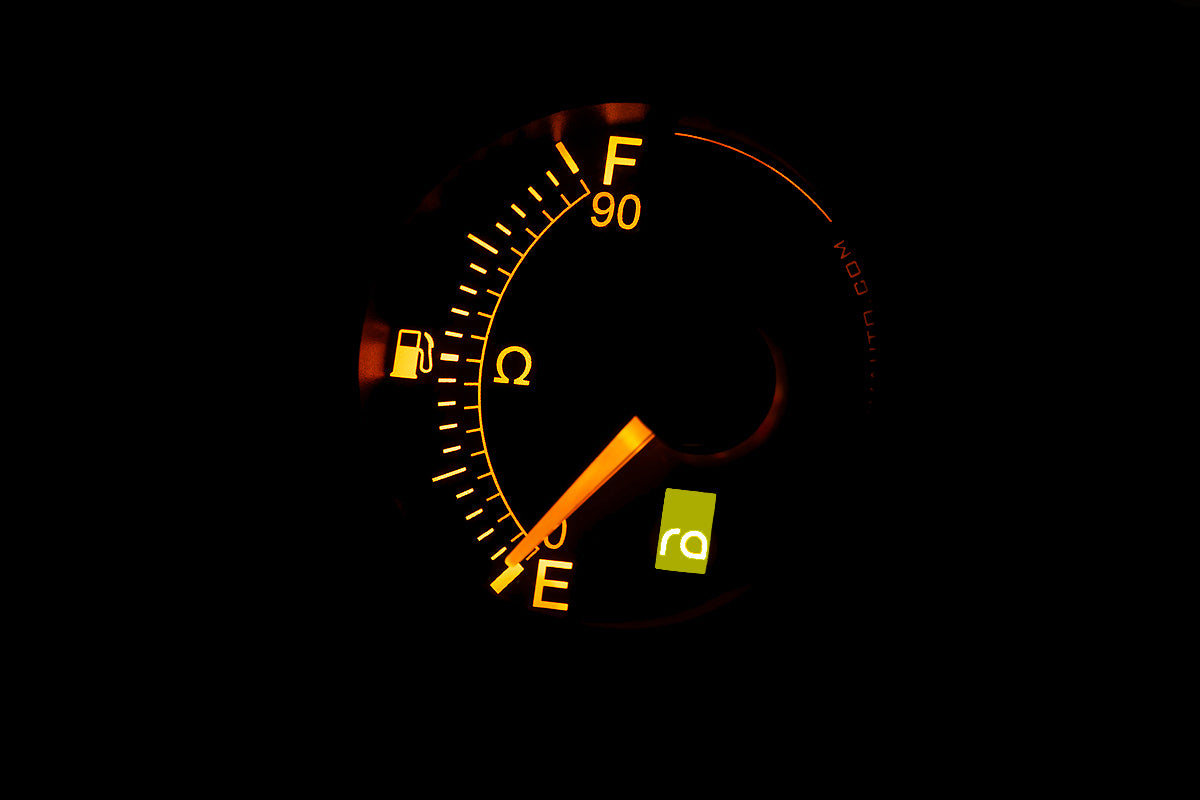

- AMBER

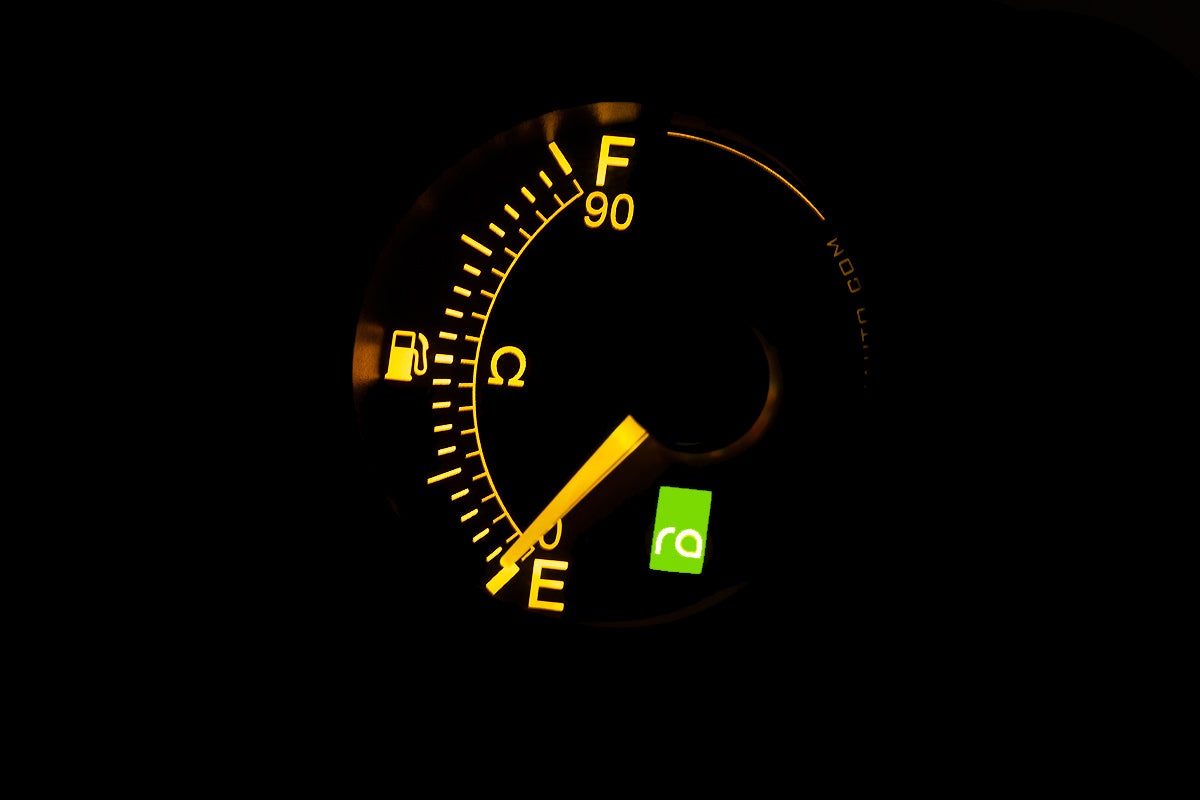

- YELLOW

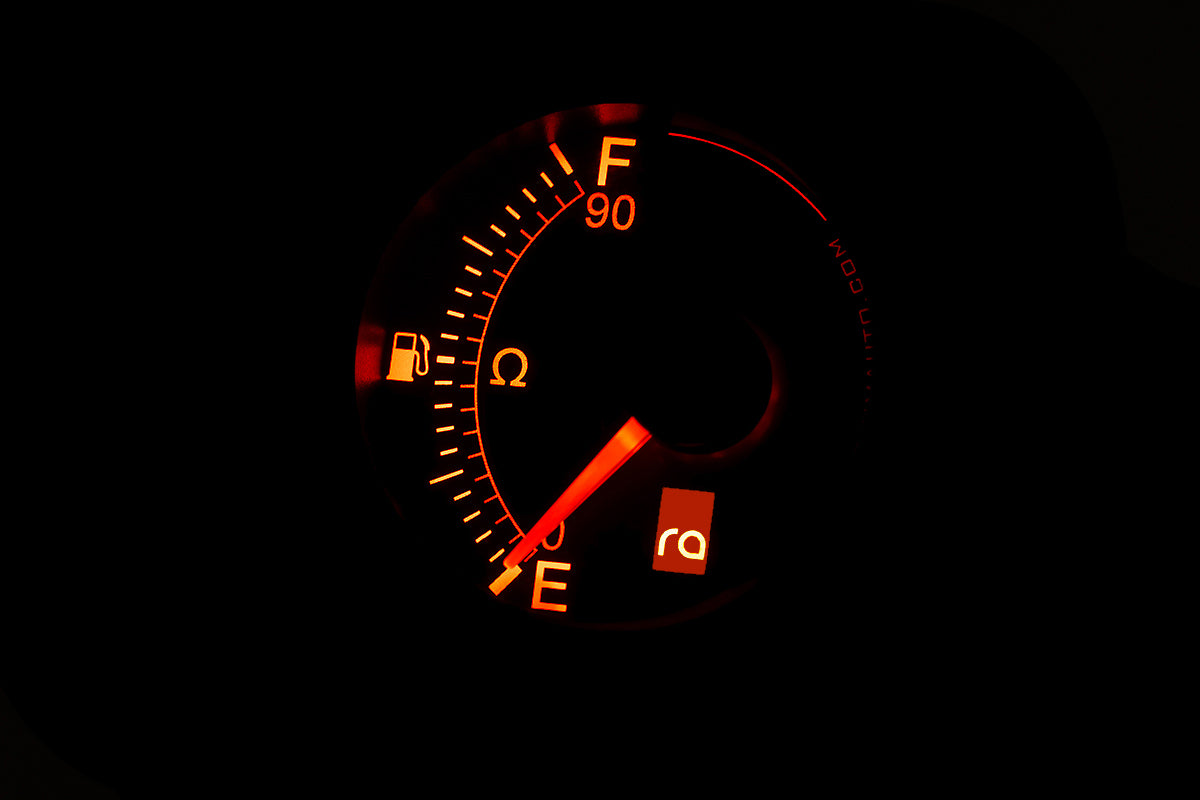

- RUST

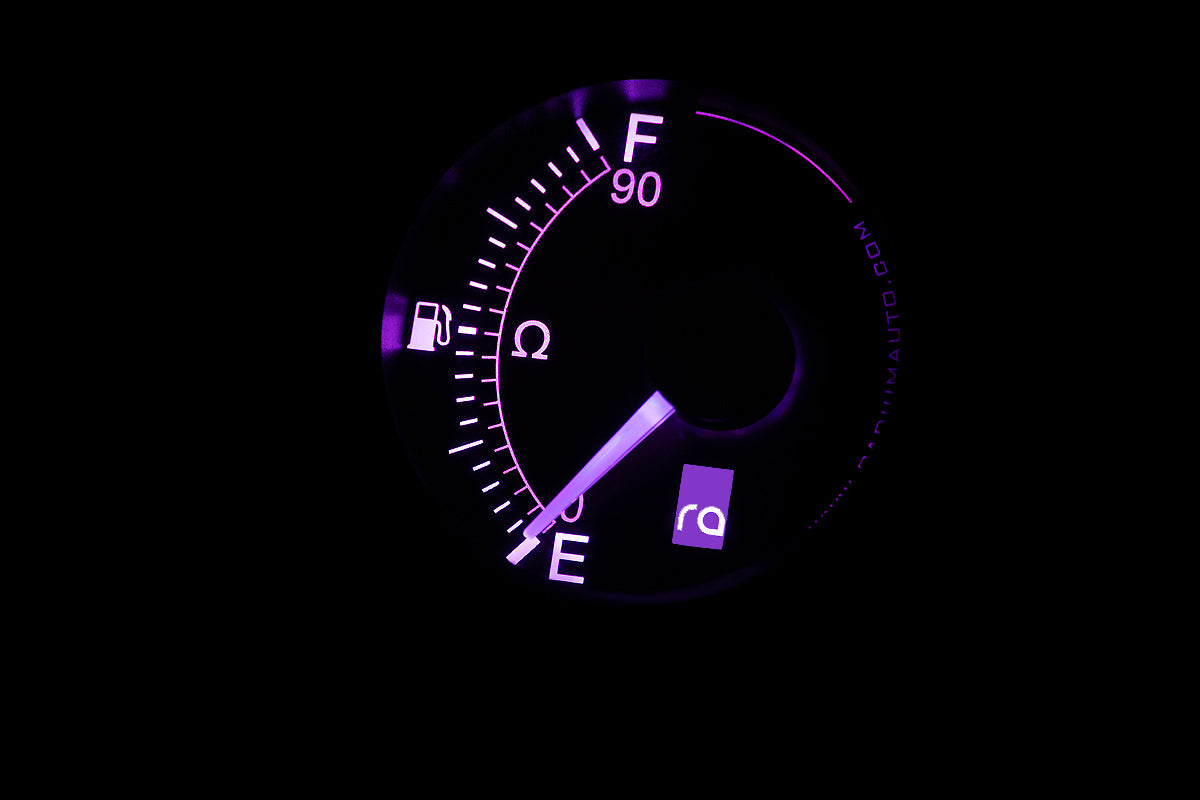

- PURPLE

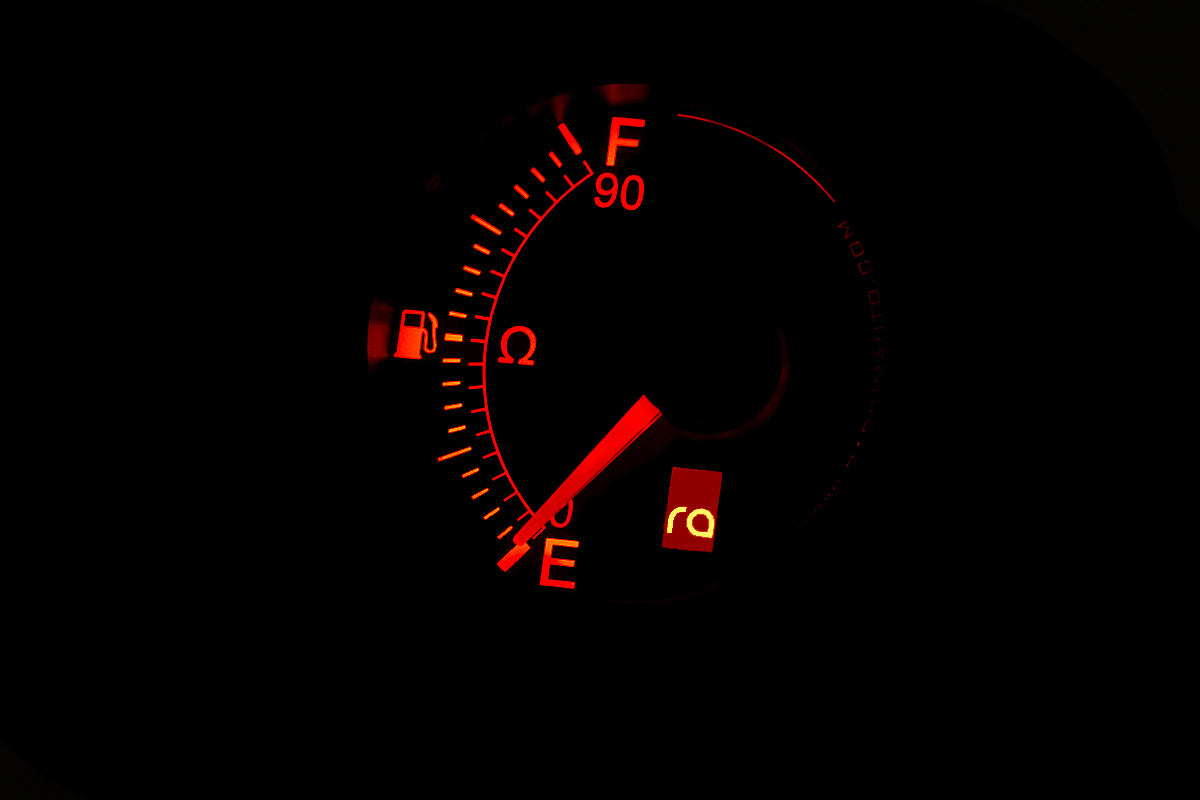

- RED

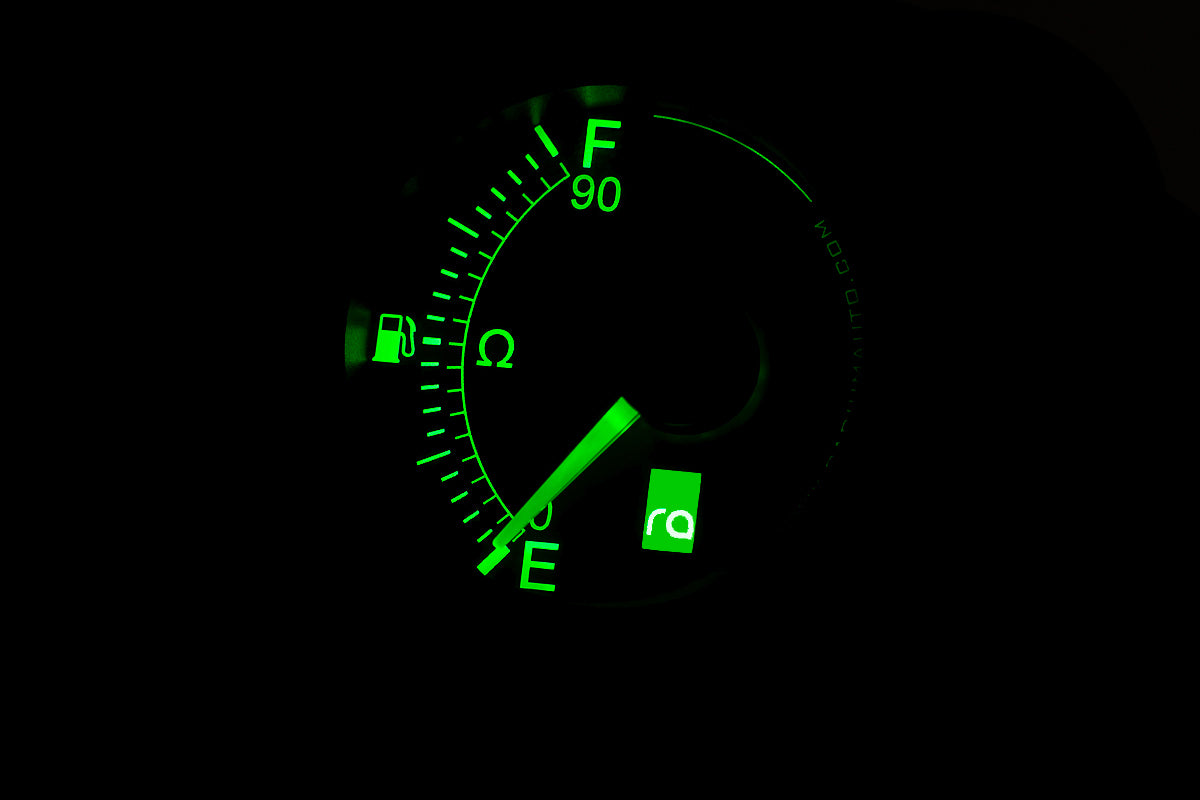

- GREEN

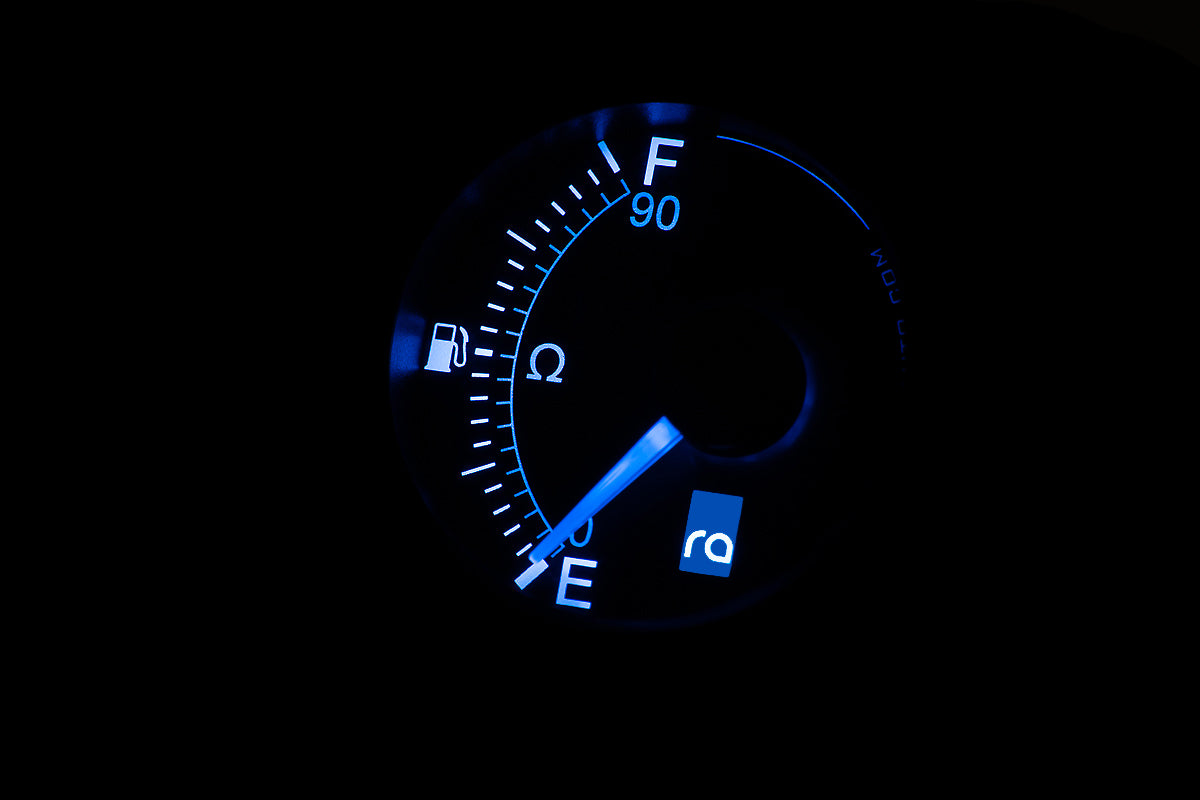

- BLUE

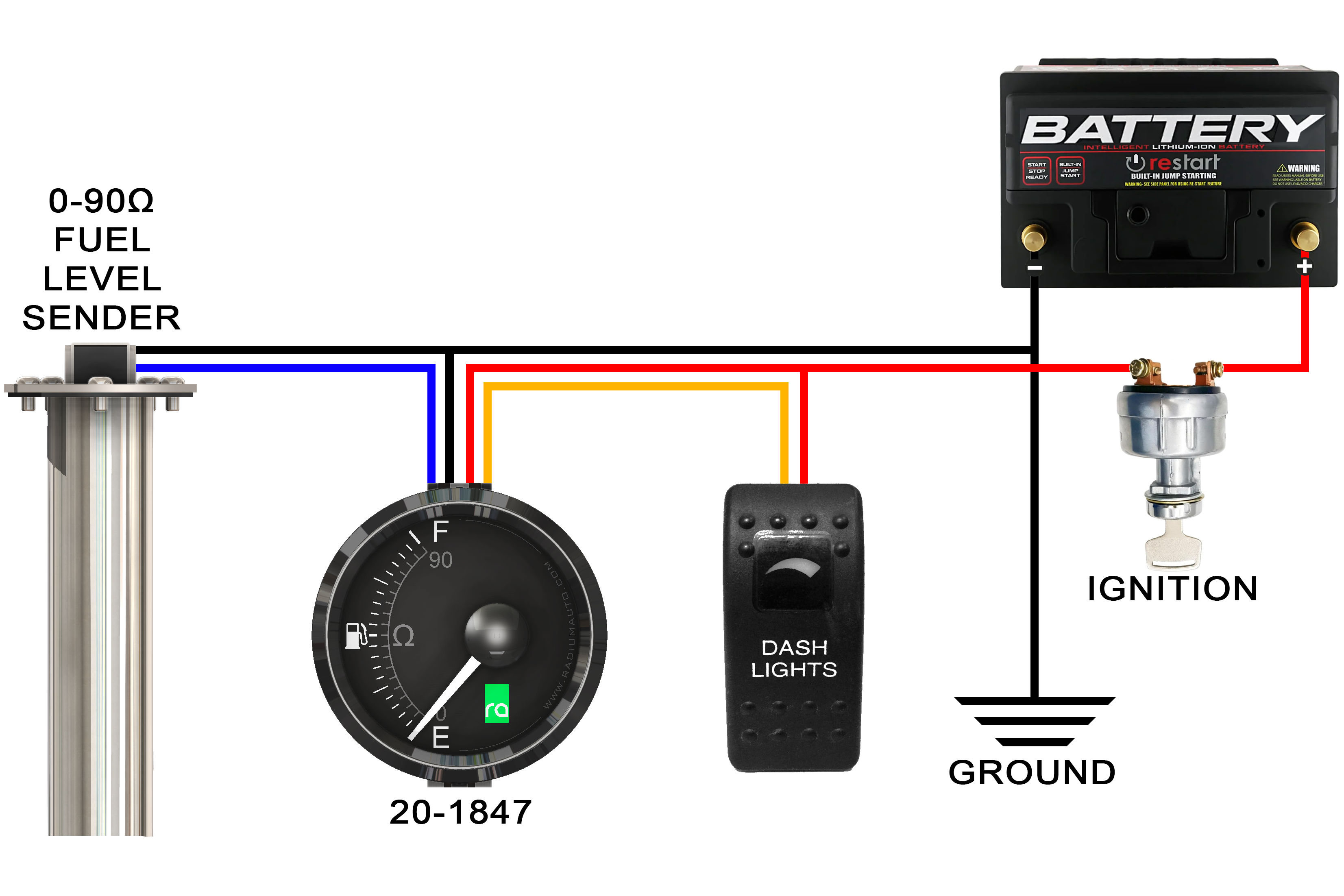

The removeable 4-pin connector simplifies installation. Available with black bezel and black face only.

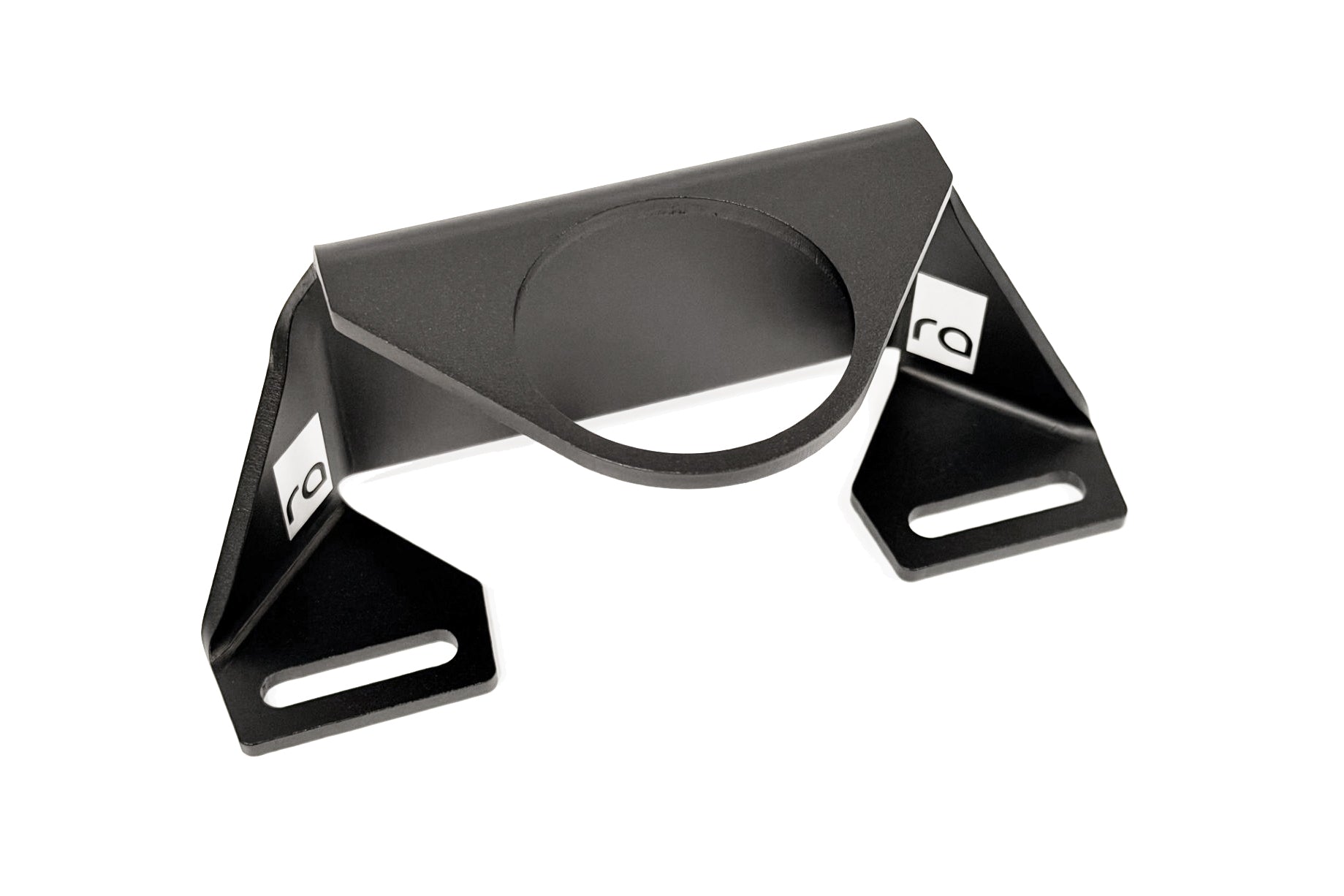

20-2585 Fuel Level Gauge Mount

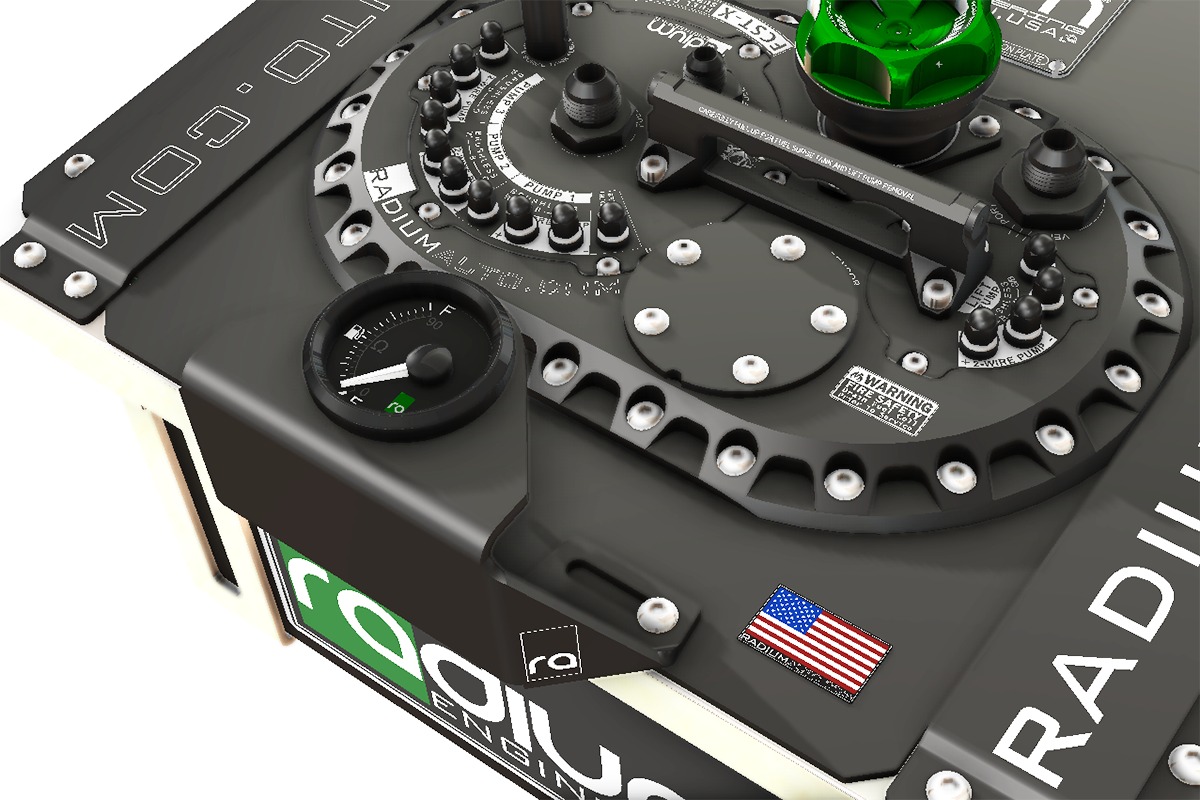

If a Radium Engineering fuel cell is installed, this mount will secure directly to the perimeter. Any pair of fuel cell plate screws will lineup to the slotted mounting holes.
SPECS & FEATURES
52MM FUEL LEVEL GAUGE
- Resistance Signal: 0-90 Ω
- Operation: Stepper Motor
- IP67: Water Resistant to 1m and Dust-Tight
- Operating Voltage: 9-32 VDC
- Operating Temperature: -30~70C (-22F~158)
- Curved Glass (Anti-Fogging Function)
- 8 Illuminated Colors: White, Amber, Yellow, Rust, Purple, Red, Green, Blue

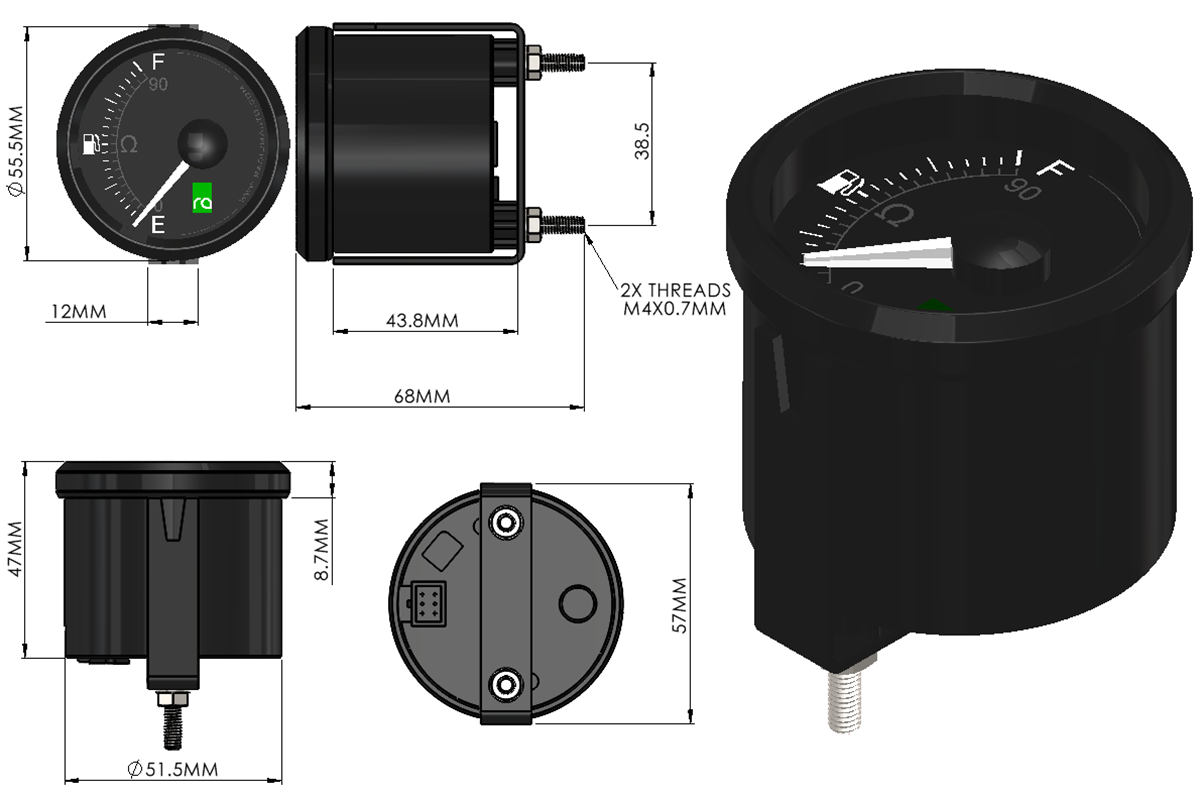

- Gauge Bezel Outside Diameter: 55.5mm
- Required Mounting Hole: 52-53mm
- Electrical Connector: Removeable
FUEL LEVEL GAUGE MOUNT
- Anodized Aluminum
- Height: 2.7" (69mm)
- Width: 6.4" (163mm)
- Depth: 2.7" (68mm)
INCLUDED

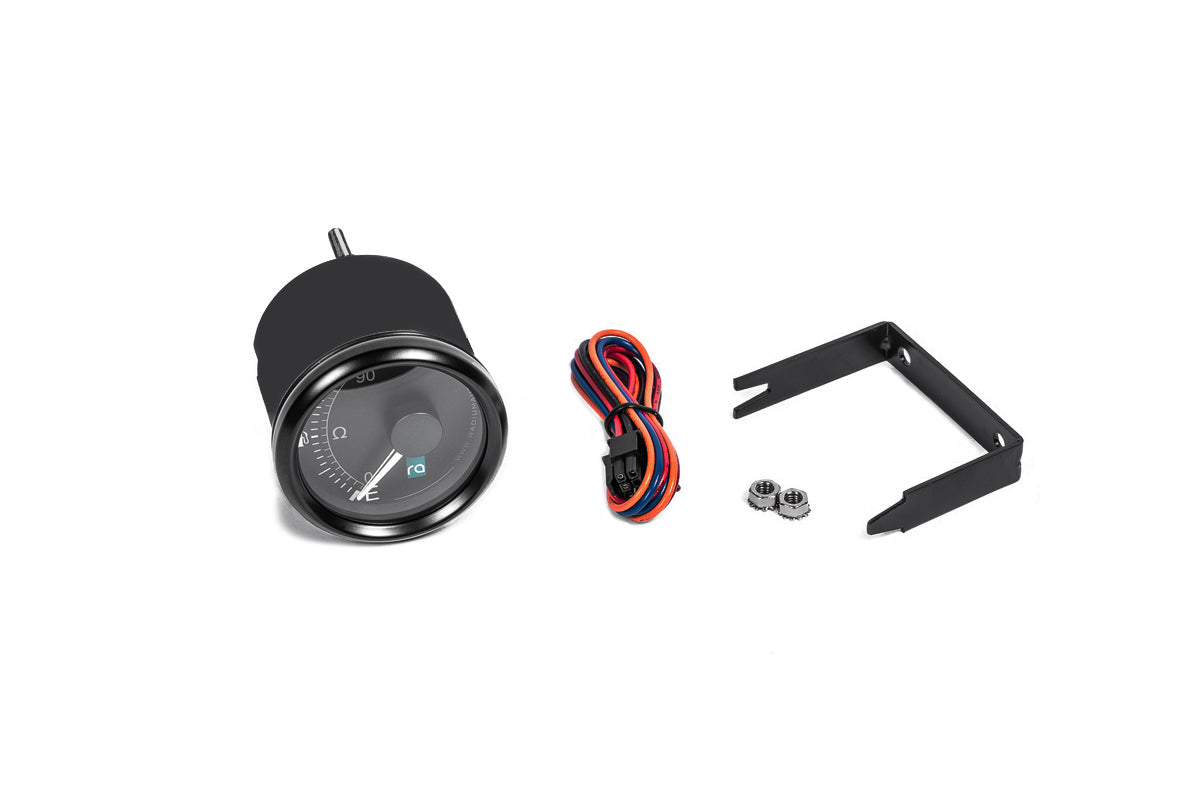

20-1847 Fuel Level Gauge, 0-90Ω
- Fuel level gauge
- Mounting bracket
- Mounting hardware
- Wire connector flying lead
20-2585 Fuel Level Gauge Mount
- Anodized aluminum bracket with laser engraving
ADDITIONAL IMAGES
52mm Fuel Level Gauge, 0-90Ω
