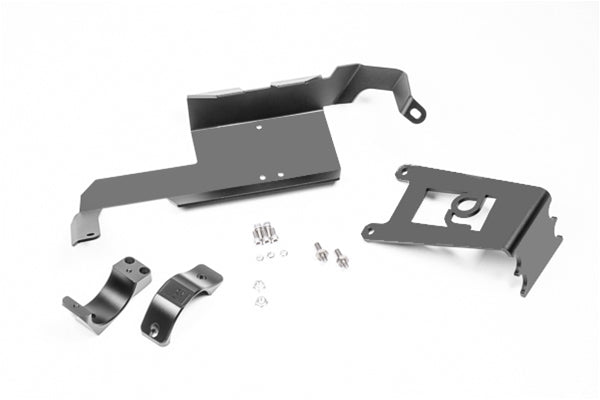

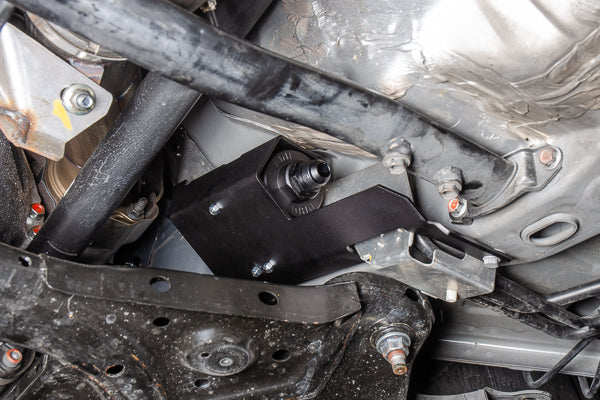

This kit consist of a specially designed heat shield, filter mounting bracket and associated hardware for installing a Radium Engineering fuel filter(sold separately) in the Nissan R35 GT-R. The anodized aluminum bracket secures to the Nissan R35 GT-R chassis using pre-existing threaded bosses. This location is ideal because it is substantially far from the hot downpipes. Also provided is a hose bracket and hardware that secures the fuel hoses further towards the front of the vehicle. All hardware is stainless steel.

• Nissan R35 GT-R

• Uses Threaded Bosses in OEM Chassis
• No Permanent Modifications Required
• Billet Anodized Aluminum Clamps
• Clamp Diameter: 60mm (2.36")
• Stainless Steel Hardware

• Anodized aluminum mounting bracket
• Anodized aluminum fuel filter mount
• Anodized aluminum heat shield
• Stainless steel mounting hardware

NOTES

• Fuel filter not included
• For information on Radium fuel filters, please see THIS PRODUCT PAGE
• Aftermarket fuel lines and fittings will need to be configured separately
• This clamp will also work with an external Bosch 0 580 254 044 fuel pump
