Hardware for installing a Radium Engineering fuel filter in the following vehicles.
COMPATIBILITY
-Toyota Supra (MK4/JZA80)
-Toyota Soarer (Z30)
-Lexus SC300
-Lexus SC400

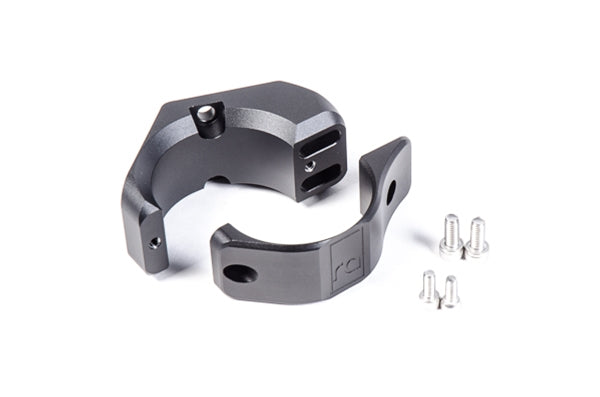

The lower half of the billet aluminum clamp secures to the unibody using the OEM fuel filter threaded bosses. The filter is then secured using the upper half of the billet aluminum clamp. All hardware is stainless steel.
COMPATIBILITY
-Toyota Supra (MK4/JZA80)
-Toyota Soarer (Z30)
-Lexus SC300
-Lexus SC400
The lower half of the billet aluminum clamp secures to the unibody using the OEM fuel filter threaded bosses. The filter is then secured using the upper half of the billet aluminum clamp. All hardware is stainless steel.

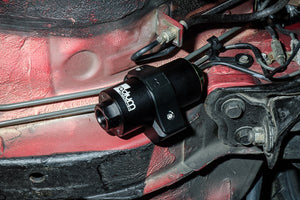

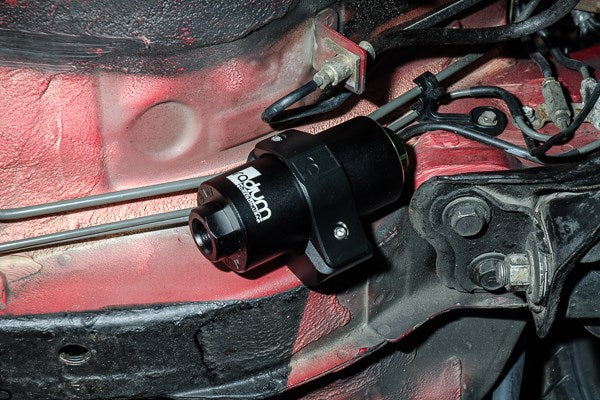

Toyota Supra JZA80 shown above.

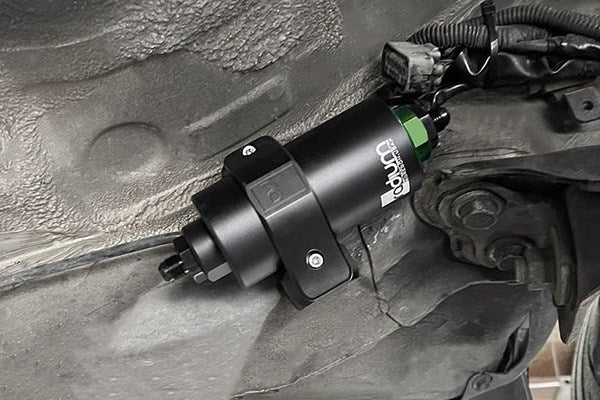

Lexus SC300 (Z30) shown above.
FEATURES
-Uses threaded bosses in OEM filter location
-No permanent modifications required
-Billet anodized aluminum clamps
-Clamp diameter: 60mm (2.36")
-Stainless steel hardware
NOTES
1. The filter is not included in the mount kit, but can be selected above.
2. For information on Radium fuel filters, please see THIS PRODUCT PAGE
3. Aftermarket fuel lines and fittings will need to be configured separately.
4. This clamp will also work with an external Bosch 0 580 254 044 fuel pump.
