COMPATIBILITY

• 89-97 Mazda MX-5 (NA)
• 99-05 Mazda MX-5 (NB)

OVERVIEW

This Radium Engineering kit is an OEM fuel filter replacement. Because this filter is larger and less restrictive than the OEM Mazda filter, there is less stress put on the fuel pump. Lower pre filter pressures permit less current draw and thus lower fuel temperatures. This phenomenon permits an increase in fuel flow. NOTE: The filters can withstand alternate fuels such as methanol, ethanol, E85, etc. For more information, go HERE.

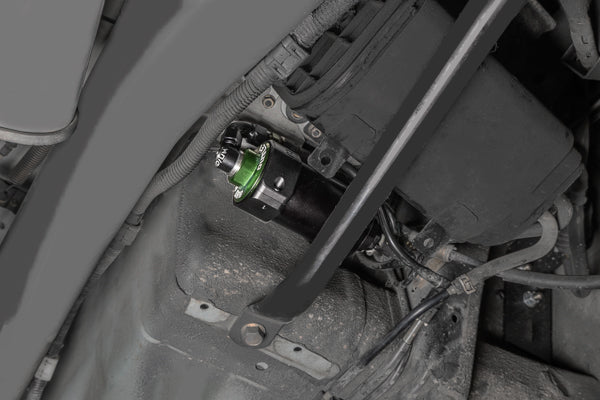

The factory Mazda fuel filter is plumbed between the fuel pump and the fuel rail. It is located just to the inside of the RH rear tire. The NA chassis uses barbed fittings and the NB chassis uses SAE quick connect fittings. Both variations are provided (2 fittings will not be used). A Mazda MX-5 NB1 install is shown below, however, the NA chassis is similar.

This is a quick install with no cutting or drilling required. Basic hand tools are all that is needed.

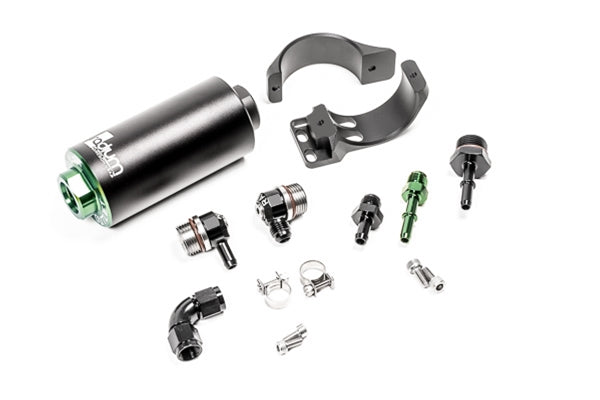

	20-1021-03 FUEL FILTER KIT 89-05 MAZDA MX-5, 10 MICRON STAINLESS FILTER INCLUDES Selectable Fuel Filter Elements Anodized Aluminum Filter Housing Anodized Aluminum 2-Piece Clamp Anodized Aluminum Fittings Stainless Steel Hardware
	20-1021-05 FUEL FILTER KIT 89-05 MAZDA MX-5, 6 MICRON MICROGLASS FILTER INCLUDES Selectable Fuel Filter Elements Anodized Aluminum Filter Housing Anodized Aluminum 2-Piece Clamp Anodized Aluminum Fittings Stainless Steel Hardware
	20-1585 FUEL FILTER MOUNT KIT, NO FILTER OR PLUMBING INCLUDES Anodized Aluminum 2-Piece Clamp Stainless Steel Hardware
