COMPATIBILITY

• Toyota Supra MK5

OVERVIEW

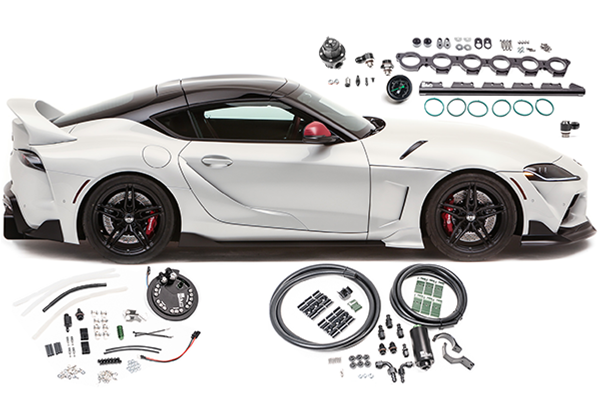

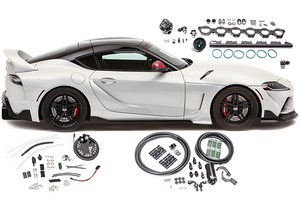

This comprehensive kit includes all the Radium Engineering components required to construct a high performance port injection fuel delivery system for the Toyota MK5 GR Supra.

The fuel pump hanger retrofits with the factory direct injection LPFP adding an additional pump specifically for port injection. It can be configured with a variety of different fuel pump options. More details on the 20-0760 fuel hanger can be found HERE.

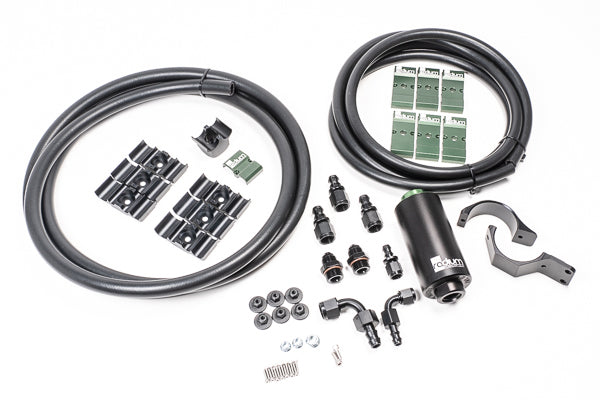

The fuel lines, a high flow fuel filter, AN fittings, and undercarriage hard line retainers replace all OEM components. More details on the 20-0761-0X fuel hanger plumbing kits can be found HERE.

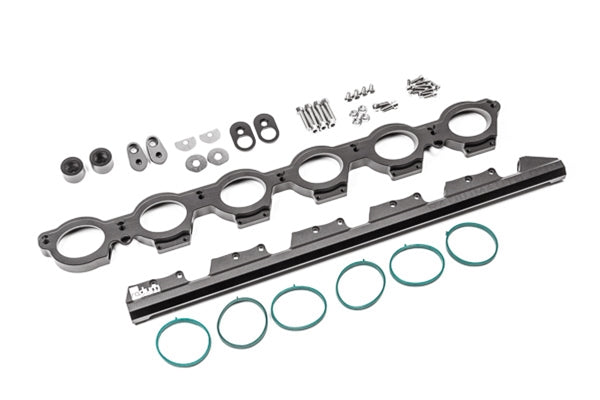

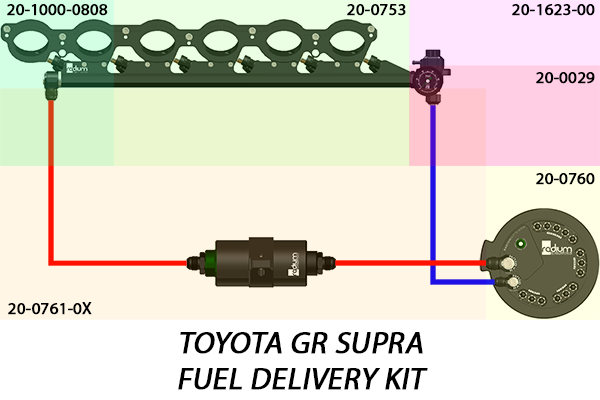

Fuel enters the engine through a 8AN banjo fitting on the inlet of a high flow B58 port injection fuel rail. More details on the 20-0753 fuel rail can be found HERE. NOTE: Fuel Injectors are required.

The included FPR regulates fuel pressure with boost pressure at a 1:1 ratio. More details on the 20-1623-00 DMR can be found HERE.

The DMR is monitored and adjusted using a 0-100psi gauge. More details regarding the 20-0029 gauge can be found HERE.

NOT INCLUDED

• Fuel injectors
• Port injection control electronics (you can use any controller available)
• Some compatible fuel pumps not available from Radium directly

HOW TO ORDER

• Required items are preselected. If you already have any of the parts with check boxes next to them, you can uncheck them to remove them from the package
• Select a fuel pump hanger that matches the part number of the fuel pump(s) you wish to install into it.
• Select the fuel hanger plumbing kit by filter type. Stainless are 10 micron and Microglass are a finer 6 micron filtration. Stainless filters have elements that can be cleaned and reused.
• Choose your fuel pumps, make sure that they match the hanger selected earlier. If using a pump not available from Radium, choose none to receive no pumps. Pumps will NOT come preinstalled into the hanger: assembly is required.
• DIY fuel pump wiring kits are preselected. If you do not need wiring kits, deselect the ones you do not want.
• After all selections are made double check them for accuracy and add item to cart and proceed to checkout.
