• Toyota Supra MK4

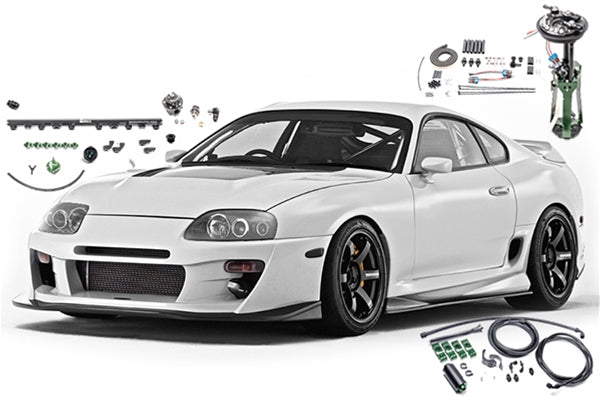

This comprehensive kit includes all the Radium Engineering components required to construct a high performance fuel delivery system for the MKIV Toyota Supra. The Radium in-tank fuel pump hanger, feed and return lines, fuel rail, and pressure regulator completely replace the restrictive OEM fuel system with a setup capable of supporting well over 1,000hp and safe to use with ethanol fuels.

The in-tank fuel hanger replaces the factory unit and can be configured with a variety of different fuel pump options. More details on the fuel hanger can be found HERE. The fuel lines include pre-fabricated PTFE hoses and retainers and is then sent through a high flow fuel filter. AN fittings and other required parts are provided to plumb everything to and from the fuel rail.

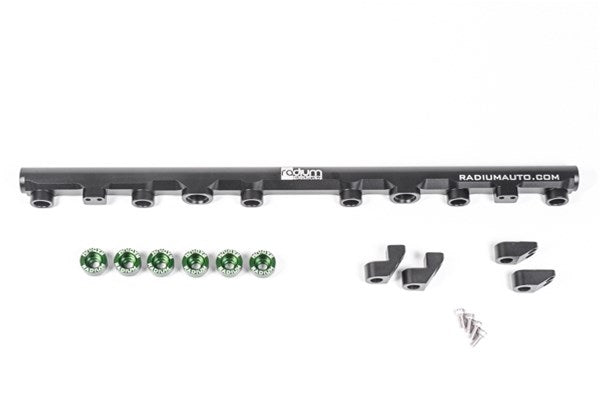

The included fuel rail, fittings, and regulator feed the 2JZ-GTE engine and converts to top feed injectors (not included). More details on the fuel rail can be found HERE.

HOW TO ORDER

• Required items are preselected. If you already have any of the parts with check boxes next to them, you can uncheck them to remove them from the package
• Select a fuel pump hanger that matches the part number of the fuel pump(s) you wish to install into it.
• Select the fuel hanger plumbing kit by filter type. Stainless are 10 micron and Microglass are a finer 6 micron filtration. Stainless filters have elements that can be cleaned and reused.
• Choose your fuel pumps, make sure that they match the hanger selected earlier. If using a pump not available from Radium, choose none to receive no pumps. Pumps will NOT come preinstalled into the hanger: assembly is required.
• DIY fuel pump wiring kits are preselected. If you do not need all 3 wiring kits, deselect the ones you do not want.
• After all selections are made double check them for accuracy and add item to cart and proceed to checkout.

• 14-0153 8AN ORB to 10AN Male fitting
• 14-0150 8AN ORB plug
• 20-0776 FPD-R 8AN ORB
• 20-0029 Fuel pressure gauge 0-100psi
• 20-1510, 20-1511, or 20-1512 Fuel pump hanger (selectable)
• 20-0415-03 or 20-0415-05 Hanger plumbing kit (selectable)
• 20-0215 or 20-0371 Fuel Rail (selectable)
• 20-1623-00 or 20-1623-01 Direct mount regulator
• Optional Walbro F90000274 430lph fuel pumps
• Optional Ti Automotive BKS1001 590lph brushless fuel pumps
• Optional 17-0031 DIY wiring kits

NOT INCLUDED

• Fuel injectors
• Some compatible fuel pumps not available from Radium directly
