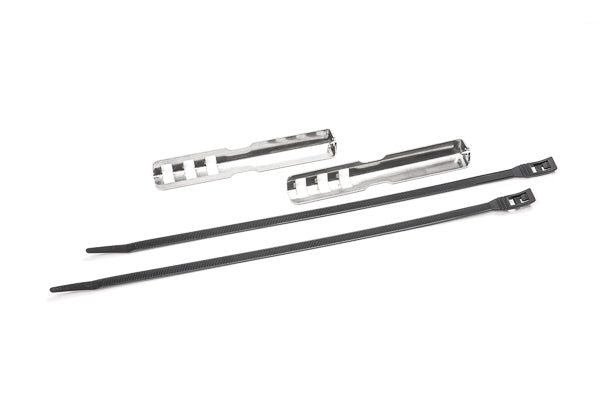

These lift pump mounts come standard with the 20-1990-XX, 20-1992-XX, 20-1993-00, and 20-1995-00 FCST-X. They were designed specifically for 39mm OD fuel pumps installed into 6 gallon, 10 gallon, and 10.5 gallon Radium Engineering fuel cells. The internal depth of these fuel cells is 7.7" (196mm). This is measured from the underside of the fill plate to the bottom of the lift pump filter sock. But these brackets are very forgiving with respect to fuel cell depth.

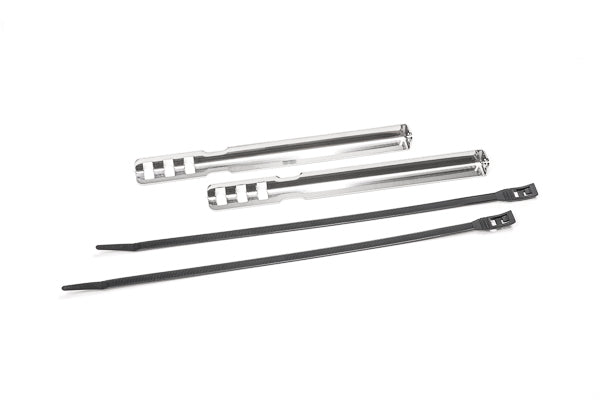

These lift pump mounts come standard with the 20-1990-XX, 20-1992-XX, 20-1993-00, and 20-1995-00 FCST-X. They were designed specifically for 39mm OD fuel pumps installed into 14 gallon, and 22 gallon Radium Engineering fuel cells. The internal depth of these fuel cells is 11.4" (290mm). This is measured from the underside of the fill plate to the bottom of the lift pump filter sock. But these brackets are very forgiving with respect to fuel cell depth.

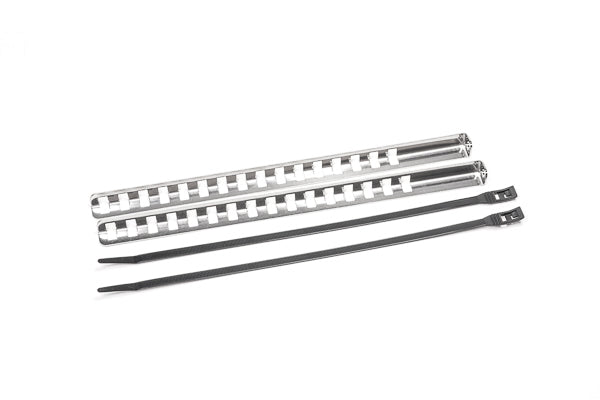

These lift pump mounts do not come standard with any FCST-X. They were designed specifically for 39mm OD fuel pumps. But because these brackets are so long, different diameter pumps can be used. These lift pump mounts permit an additional 4-1/8" (105mm) over the long 20-1213 mounts provided with the 20-1990-XX, 20-1992-XX, 20-1993-00, and 20-1995-00 FCST-X. This is measured from the underside of the fill plate to the bottom of the lift pump filter sock. But these brackets are very forgiving with respect to fuel cell depth. If modifying to a specific fuel cell depth, simply cut to length using a band saw, cut-off wheel, etc. NOTE: Longer hose and/or wiring may be necessary.

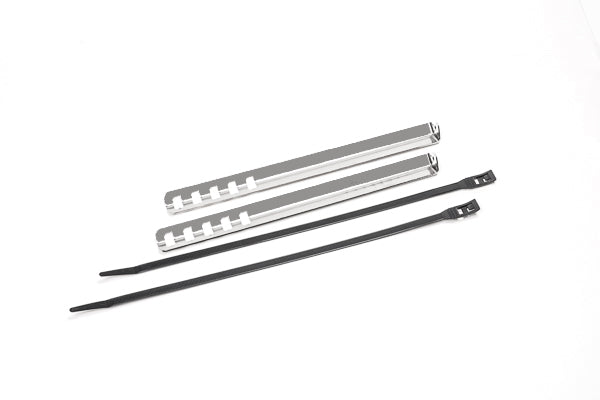

These lift pump mounts come standard with the 20-1991-00 FCST-X. They were designed specifically for 46mm OD fuel pumps installed into 6 gallon, 10 gallon, and 10.5 gallon Radium Engineering fuel cells. The internal depth of these fuel cells is 7.7" (196mm). This is measured from the underside of the fill plate to the bottom of the lift pump filter sock. But these brackets are very forgiving with respect to fuel cell depth.

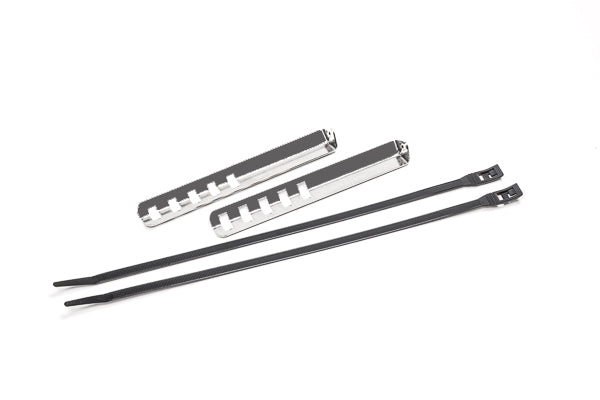

These lift pump mounts come standard with the 20-1991-00 FCST-X. They were designed specifically for 46mm OD fuel pumps installed into 14 gallon, and 22 gallon Radium Engineering fuel cells. The internal depth of these fuel cells is 11.4" (290mm). This is measured from the underside of the fill plate to the bottom of the lift pump filter sock. But these brackets are very forgiving with respect to fuel cell depth.

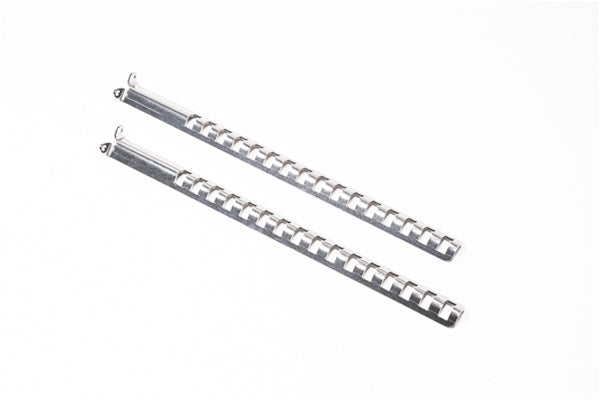

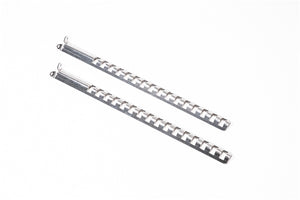

These mounts are specific to the following FCSTs ONLY: 20-014X-XX, 20-049X-XX, 20-069X-XX, and 20-099X-XX. The kits include 2 laser cut polished stainless steel brackets. These lift pump mounts permit an additional 8" (203mm) over the standard mounts provided with the FCST. They will properly place the lift pump at a fuel cell depth up to 17" (432mm). If modifying to a specific fuel cell depth, simply cut to length using a band saw, cut-off wheel, etc.

Note: longer hose and wiring may be required when fitting these

• 20-1990-xx (all variations)
• 20-1992-xx (all variations)
• 20-1993-00
• 20-1995-00

Note: These brackets are already included with all of the FCST-X units listed above

• 20-1990-xx (all variations)
• 20-1992-xx (all variations)
• 20-1993-00
• 20-1995-00

Note: These brackets are already included with all of the FCST-X units listed above

• 20-1990-xx (all variations)
• 20-1992-xx (all variations)
• 20-1993-00
• 20-1995-00

Compatible with shallow depth fuel cells such as Radium 6 and 10 gallon cells, and the spare tire cell. Can be used in the following FCST-X models:

• 20-1991-00

Note: These brackets are already included with all of the FCST-X units listed above

Compatible with deeper fuel cells such as Radium 14 and 22 gallon cells. Can be used in the following FCST-X models:

• 20-1991-00

Note: These brackets are already included with all of the FCST-X units listed above

This lift pump bracket is used for extra deep cells and is compatible with the discontinued FCST models Use with all 20-049x, 20-069x and 20-099x series of FCST
