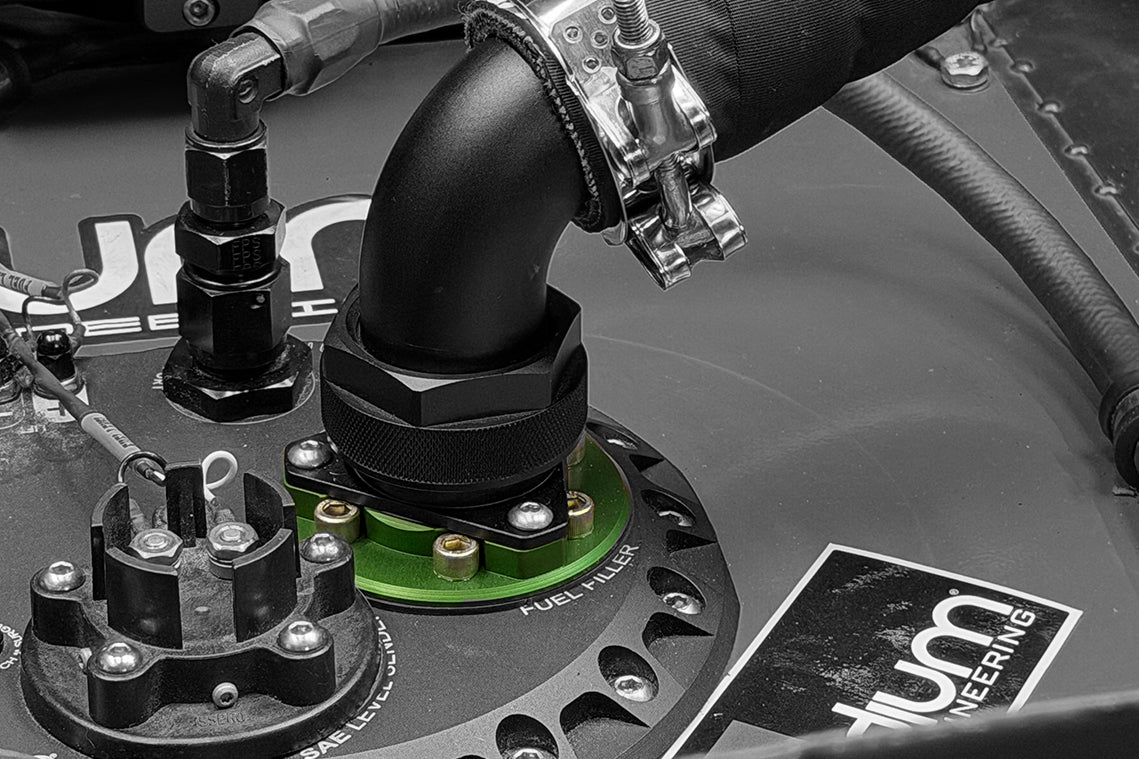

This adapter can be used to adapt any of the current 3-bolt fuel cell filler necks currently used by the FCST-X onto a legacy FCST that uses a 6-bolt hole pattern fuel filler. The adapter adds less than 1/2 inch of height to the filler cap or neck when installed.

To include the same safety measures as the previous models, rollover protection is built-in using the same one-way valve that legacy FCST fillers used. A new gasket is also included.

COMPATIBLE FILLERS

This adapter is compatible with 3 filler options which can be selected in the options on this page. It will also be compatible with all FCST refueling kits found HERE.

20-1197-V Direct Mount Fill Neck & Cap

20-1197-V

Direct filler cap with vent and rollover valve built-in.

20-1027 Straight 1.5in Barb Filler Neck

20-1027

Filler neck with a 1.5" straight barb for connecting a filler hose that routes to an external/remote fuel filling point

20-1047 Remote Mount Fill Neck 24AN Elbow

20-1047

Filler neck with a 24AN connection and a 1.5" barb on a 75° angle for connecting a filler hose that routes to an external/remote fuel filling point. This filler neck's elbow can be clocked to point any direction needed.

• Anodized aluminum adapter
• Rollover valve
• 6-Bolt Gasket
• Stainless Steel Hardware

Note: The o-ring and mounting hardware for the 3-bolt side will be included with the chosen filler neck.
