OVERVIEW

IMPORTANT: Service Parts are only available on RadiumAuto.com and are not eligible for any wholesale discounts.

In each Radium hanger, surge tank, FCST, etc. there is a small electrical parts kit in the box. These kits include ring terminals, heat shrink, hex nuts, etc. used when assembling the wiring portion of the product. Replacements of those electrical parts kits are available here.

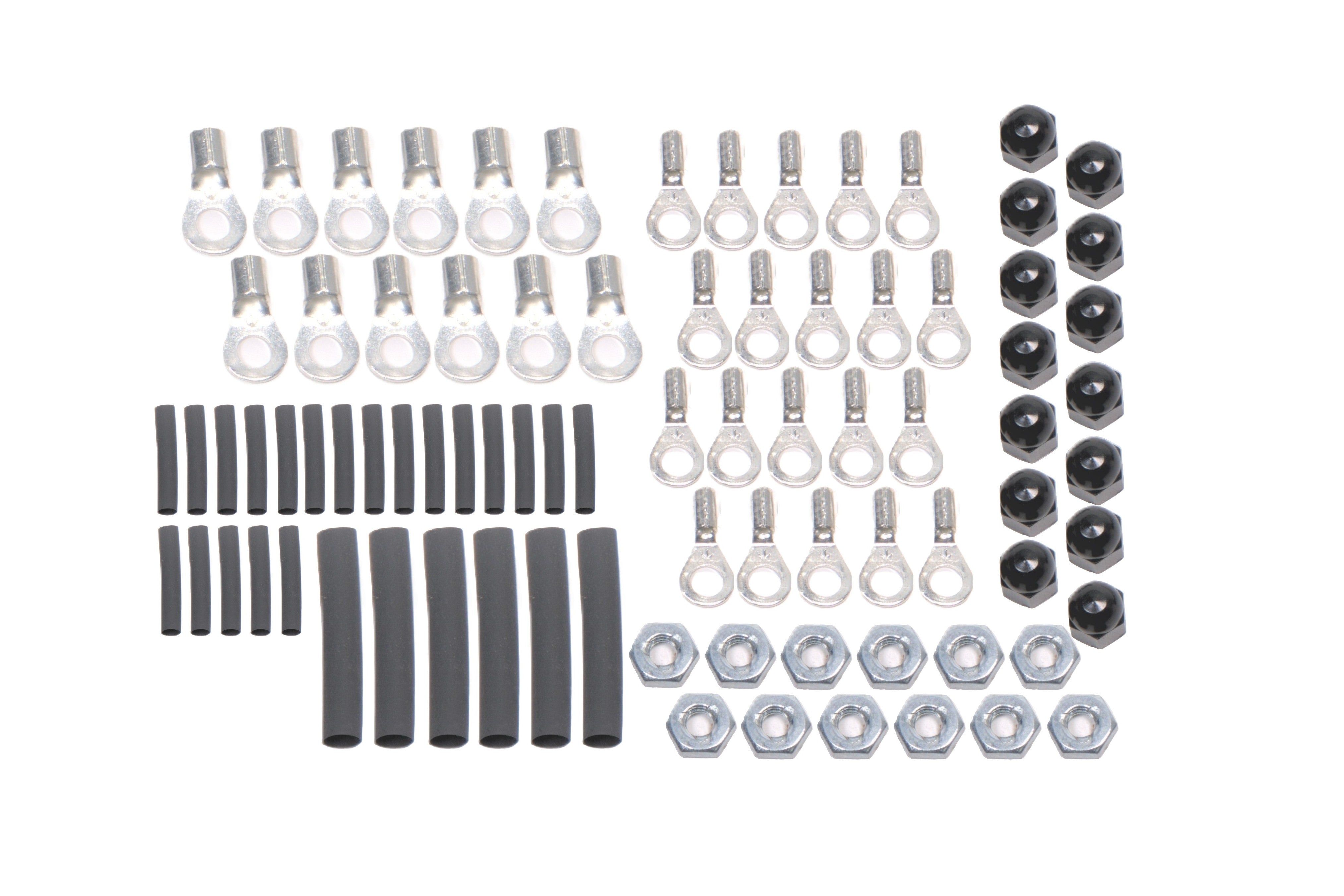

	RED ELECTRICAL KIT APPLICATIONS 20-034x-00 Early Subaru Hanger 20-0780-00 Late Subaru Hanger 20-1800 Mustang Hanger 20-1802 Mustang Hanger 20-197x BMW E9x FHST 20-1342 Evo 7-9 Hanger 20-1640 Evo X Hanger 20-1642 Evo X Hanger INCLUDES Ring terminal, 10-12 wire gauge, #10 stud (x4) Ring terminal, 18-22 wire gauge, #10 stud (x6) #10-32 Locking Hex Nut (x4) #10-32 Aluminum Acorn Nut (x10) 1/8" Heat Shrink x 3/4" Long (x6) 3/16" Heat Shrink x 1-1/4" Long (x2)

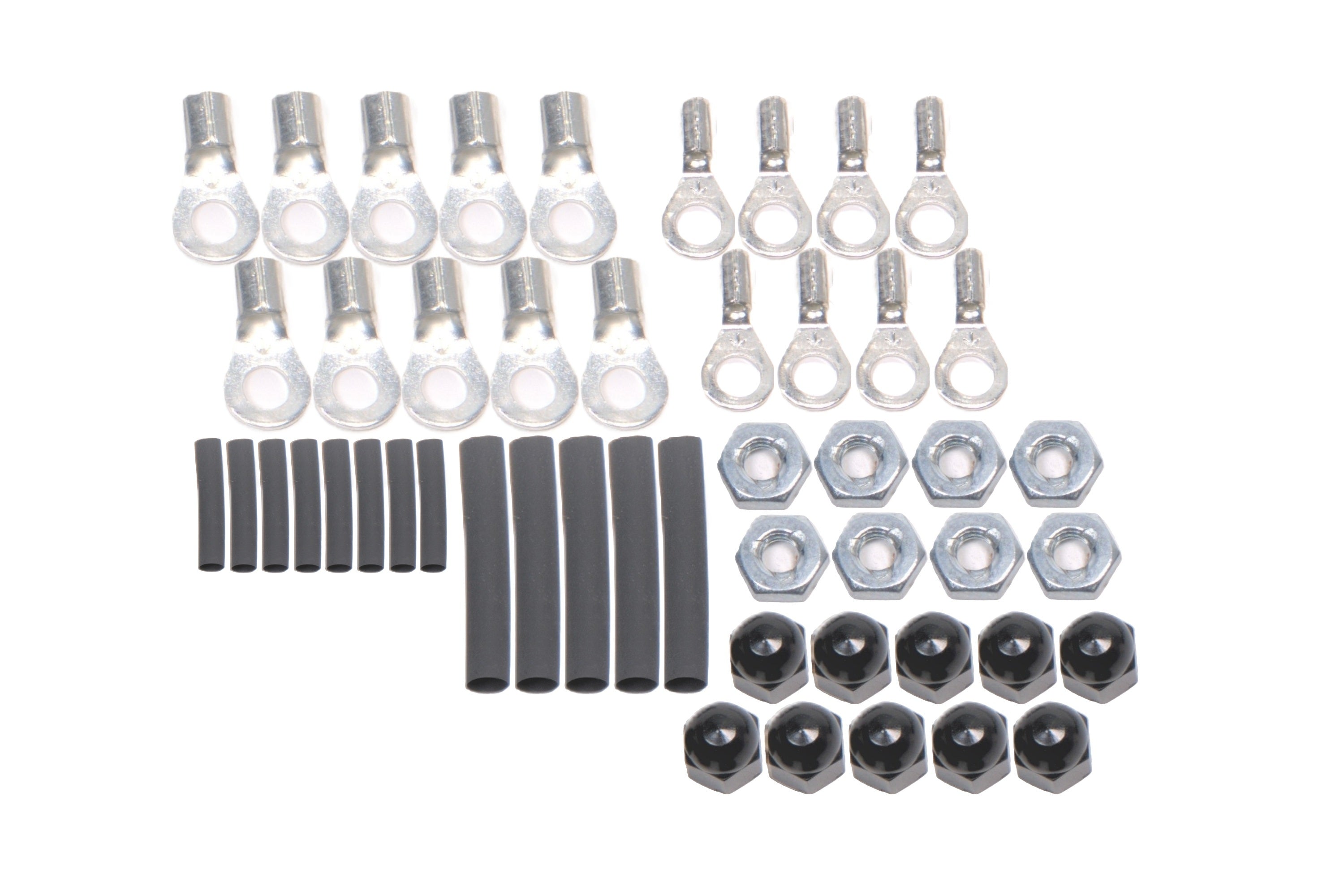

	BRUSHLESS MPFST ELECTRICAL KIT APPLICATIONS 20-0443-00 MPFST INCLUDES Ring terminal, 10-12 wire gauge, #10 stud (x10) Ring terminal, 18-22 wire gauge, #10 stud (x8) #10-32 Locking Hex Nut (x8) #10-32 Aluminum Acorn Nut (x10) 1/8" Heat Shrink x 3/4" Long (x8) 3/16" Heat Shrink x 1-1/4" Long (x5)

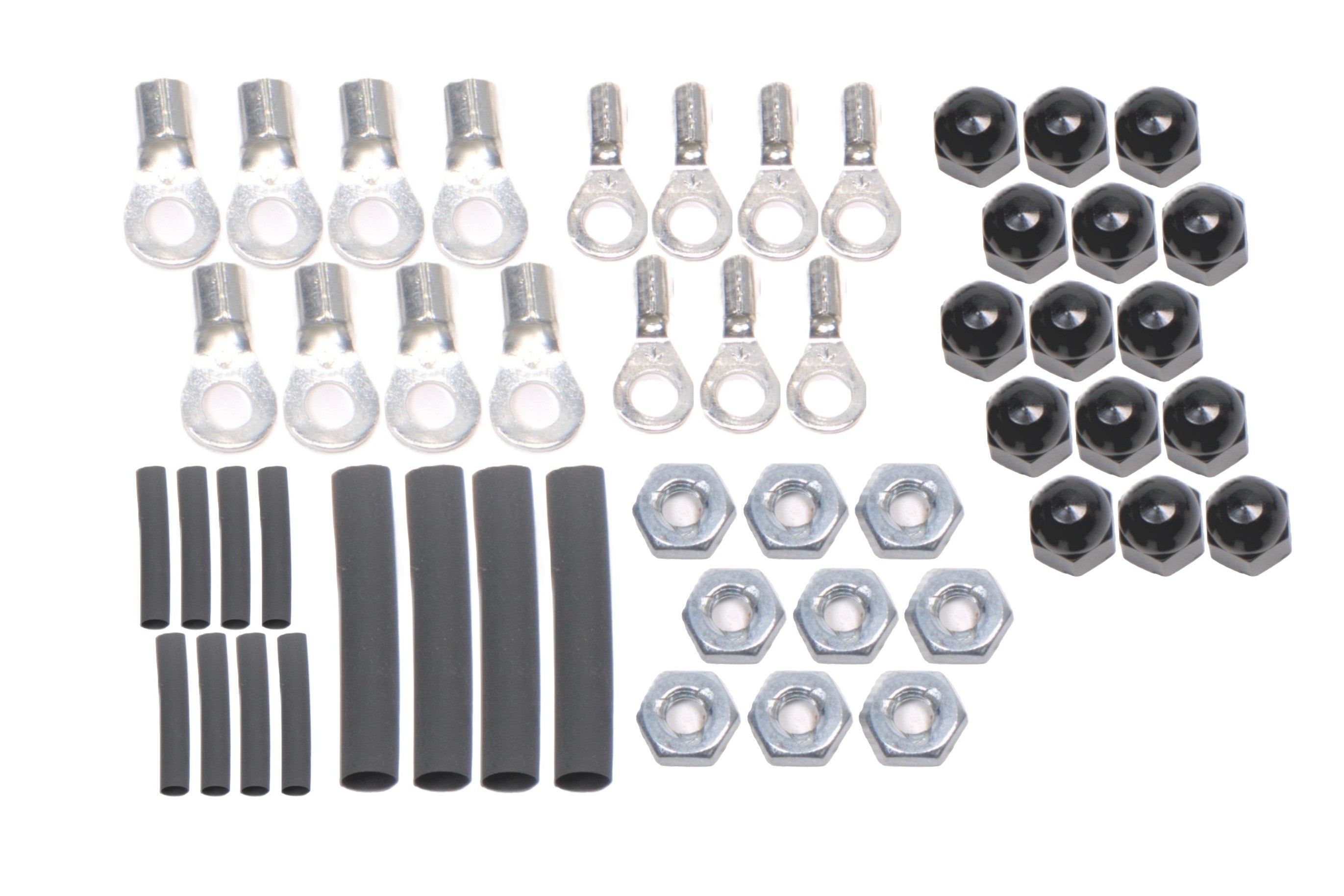

	GREEN ELECTRICAL KIT APPLICATIONS 20-073x-00 Early Nissan Hanger 20-0740-00 R32 GT-R Hanger 20-0742-00 R32 GT-R Hanger 20-1510 MK4 Supra Hanger 20-1512 MK4 Supra Hanger 20-0950 FD RX-7 FHST 20-0952 FD RX-7 FHST 20-1322 GM Triple Pump Hanger 20-1820 370Z FHST 20-1822 370Z FHST 20-1330 Evo 6 Hanger 20-1112 C8 Corvette Hanger INCLUDES Ring terminal, 10-12 wire gauge, #10 stud (x8) Ring terminal, 18-22 wire gauge, #10 stud (x7) #10-32 Locking Hex Nut (x9) #10-32 Aluminum Acorn Nut (x15) 1/8" Heat Shrink x 3/4" Long (x8) 3/16" Heat Shrink x 1-1/4" Long (x4)

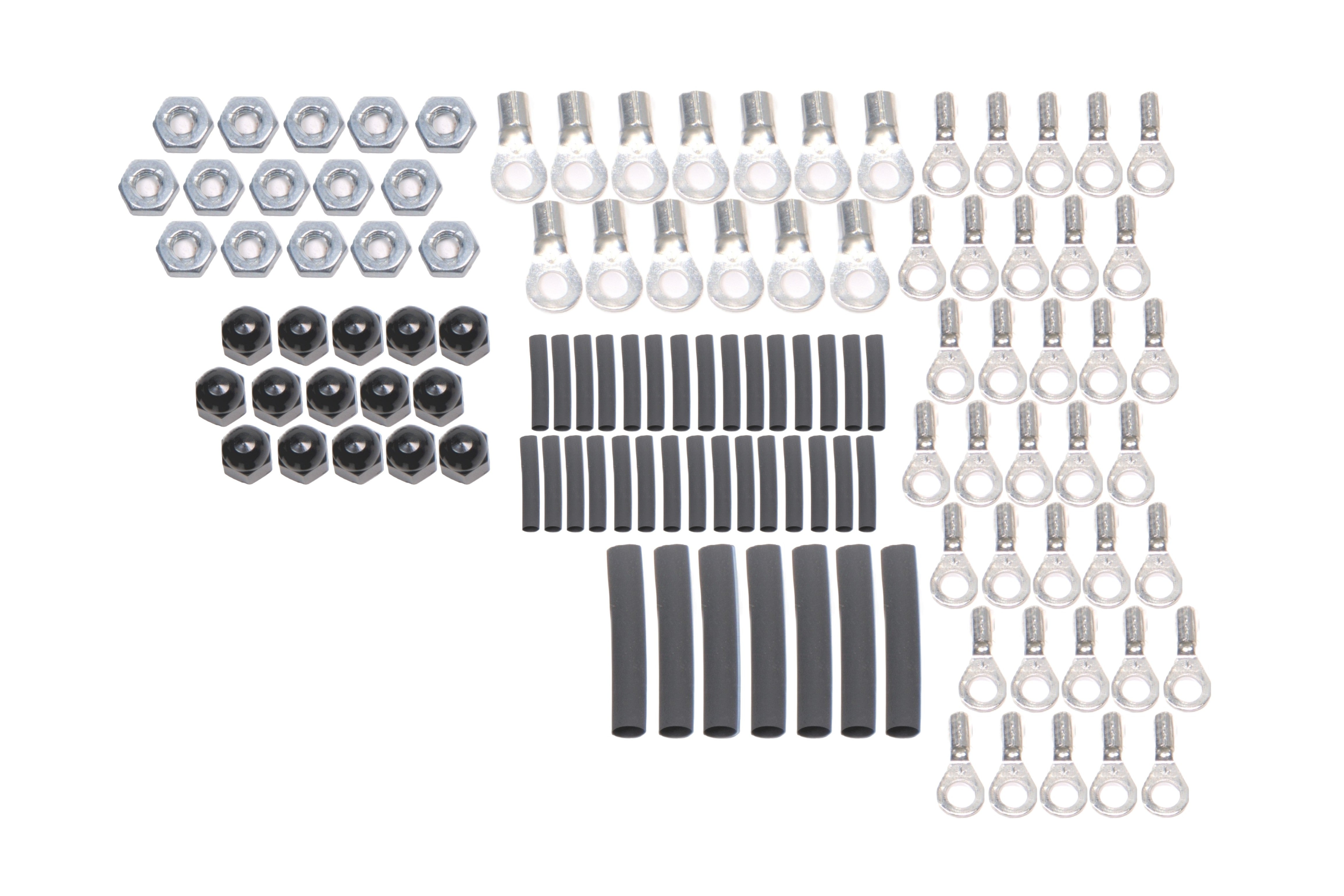

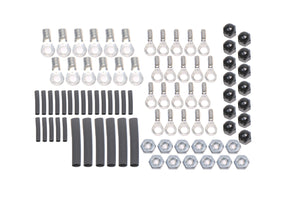

	BLUE ELECTRICAL KIT APPLICATIONS 20-0741-00 R32 GT-R FHST 20-0951 FD RX-7 FHST 20-0572 R35 GT-R Hanger 20-1170 BMW E36 Hanger 20-1180 BMW E46 Hanger 20-108x 2016+ Civic Hanger 20-1110 C8 Corvette Hanger 20-1111 C8 Corvette Hanger INCLUDES Ring terminal, 10-12 wire gauge, #10 stud (x13) Ring terminal, 18-22 wire gauge, #10 stud (x30) #10-32 Locking Hex Nut (x15) #10-32 Aluminum Acorn Nut (x15) 1/8" Heat Shrink x 3/4" Long (x30) 3/16" Heat Shrink x 1-1/4" Long (x7)
	PURPLE ELECTRICAL KIT APPLICATIONS 20-063x-00 Late Nissan Hanger 20-0760 MK5 Supra Hanger 20-1511 MK4 Supra Hanger 20-0860 R8/Lamborghini FHST 20-0940 Chaser/Cresta Hanger 20-0980 C5/C6 Corvette Hanger 20-1320 GM Hanger 20-1073 FR-S/BRZ Hanger 20-1074 GR86 Hanger 20-1020 Miata Hanger 20-1801 Mustang Hanger 20-1821 370Z FHST 20-183x 350X FHST 20-1010 C7 Corvette Hanger 20-1643 Evo X Hanger 20-1644 Evo X Hanger INCLUDES Ring terminal, 10-12 wire gauge, #10 stud (x12) Ring terminal, 18-22 wire gauge, #10 stud (x20) #10-32 Locking Hex Nut (x12) #10-32 Aluminum Acorn Nut (x14) 1/8" Heat Shrink x 3/4" Long (x20) 3/16" Heat Shrink x 1-1/4" Long (x6)

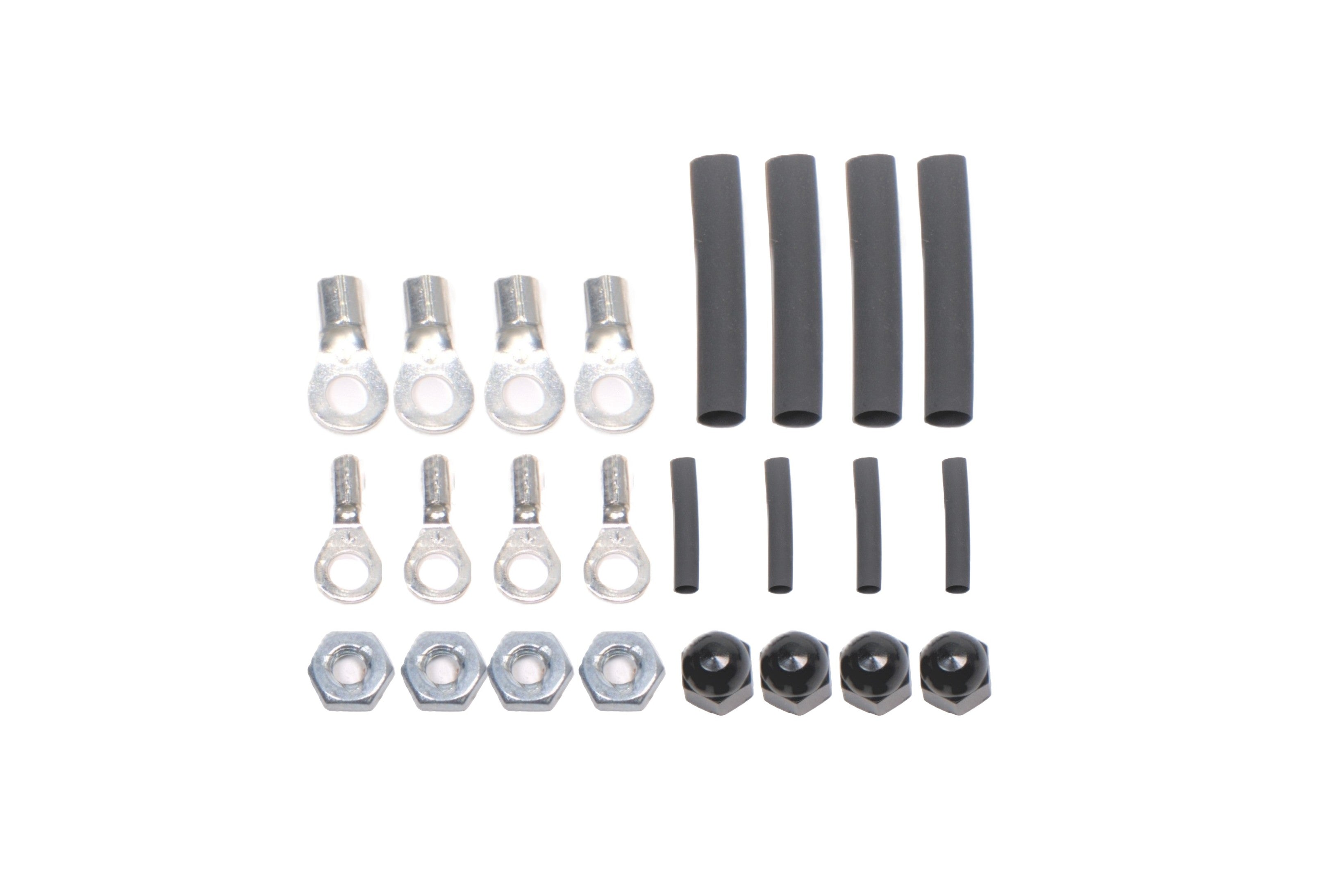

	FST/FST-R ELECTRICAL KIT APPLICATIONS 20-0960 Standard FST 20-1933 FST-R 20-1995-00 FCST-X 20-179x Honda CRX Hanger 20-279x Acura NSX Hanger 20-379x Honda Del Sol Hanger INCLUDES Ring terminal, 10-12 wire gauge, #10 stud (x4) Ring terminal, 18-22 wire gauge, #10 stud (x4) #10-32 Locking Hex Nut (x4) #10-32 Aluminum Acorn Nut (x4) 1/8" Heat Shrink x 3/4" Long (x4) 3/16" Heat Shrink x 1-1/4" Long (x4)

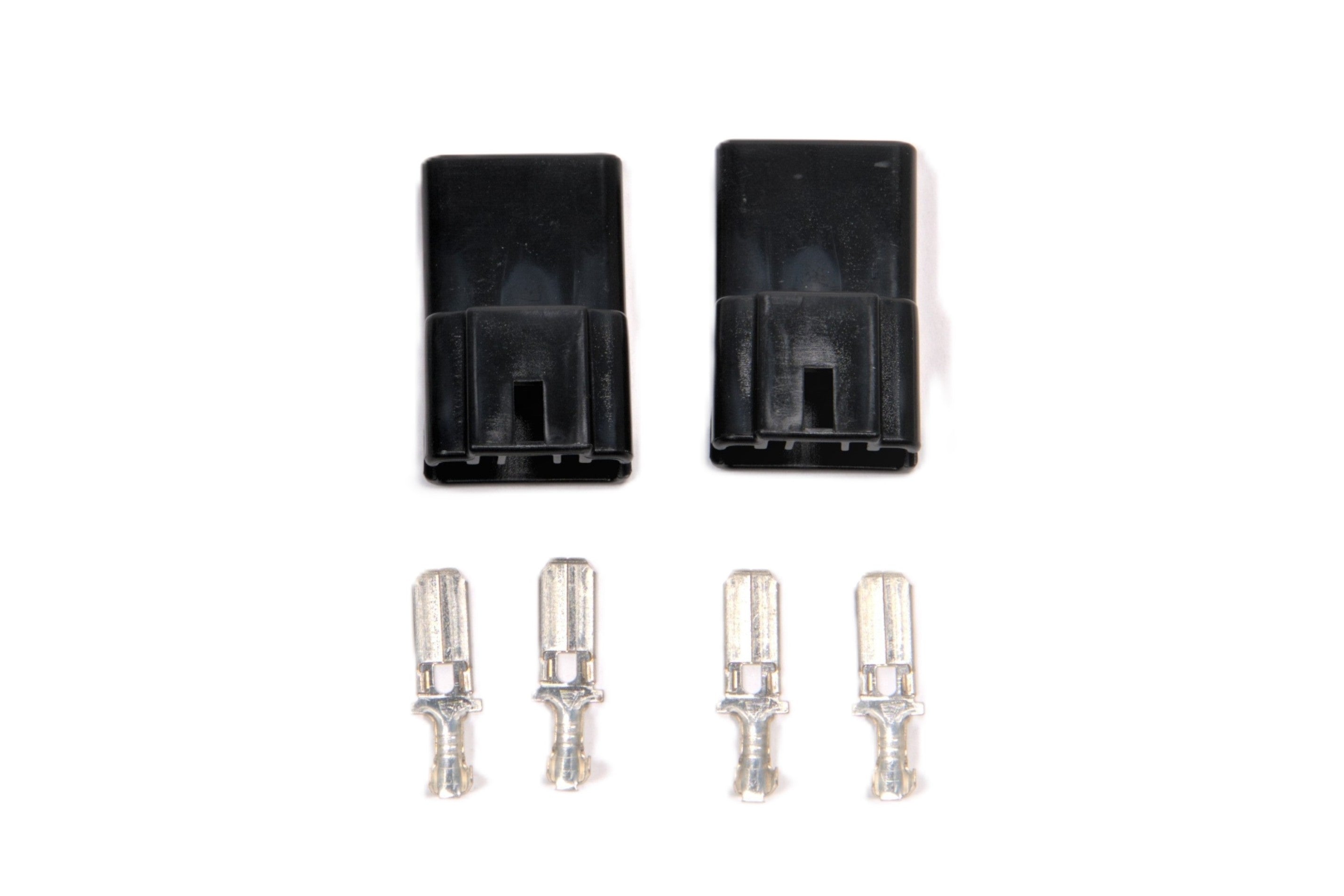

	FEMALE CONNECTOR ELECTRICAL KIT APPLICATIONS 20-063x-00 Late Nissan Hanger 20-0760 MK5 Supra Hanger 20-095x FD RX-7 Hanger 20-132x GM Hanger 20-078x-00 Late Subaru Hanger 20-034x-00 Early Subaru Hanger 20-0740-00 R32 GT-R FHST 20-0742-00 R32 GT-R FHST 20-180x Mustang Hanger 20-164x Evo X Hanger 20-1170 BMW E36 Hanger 20-108x 16+ Civic Hanger 20-0644-00 Evo X Hanger INCLUDES Female Connector (x2) Male Terminals (x4)

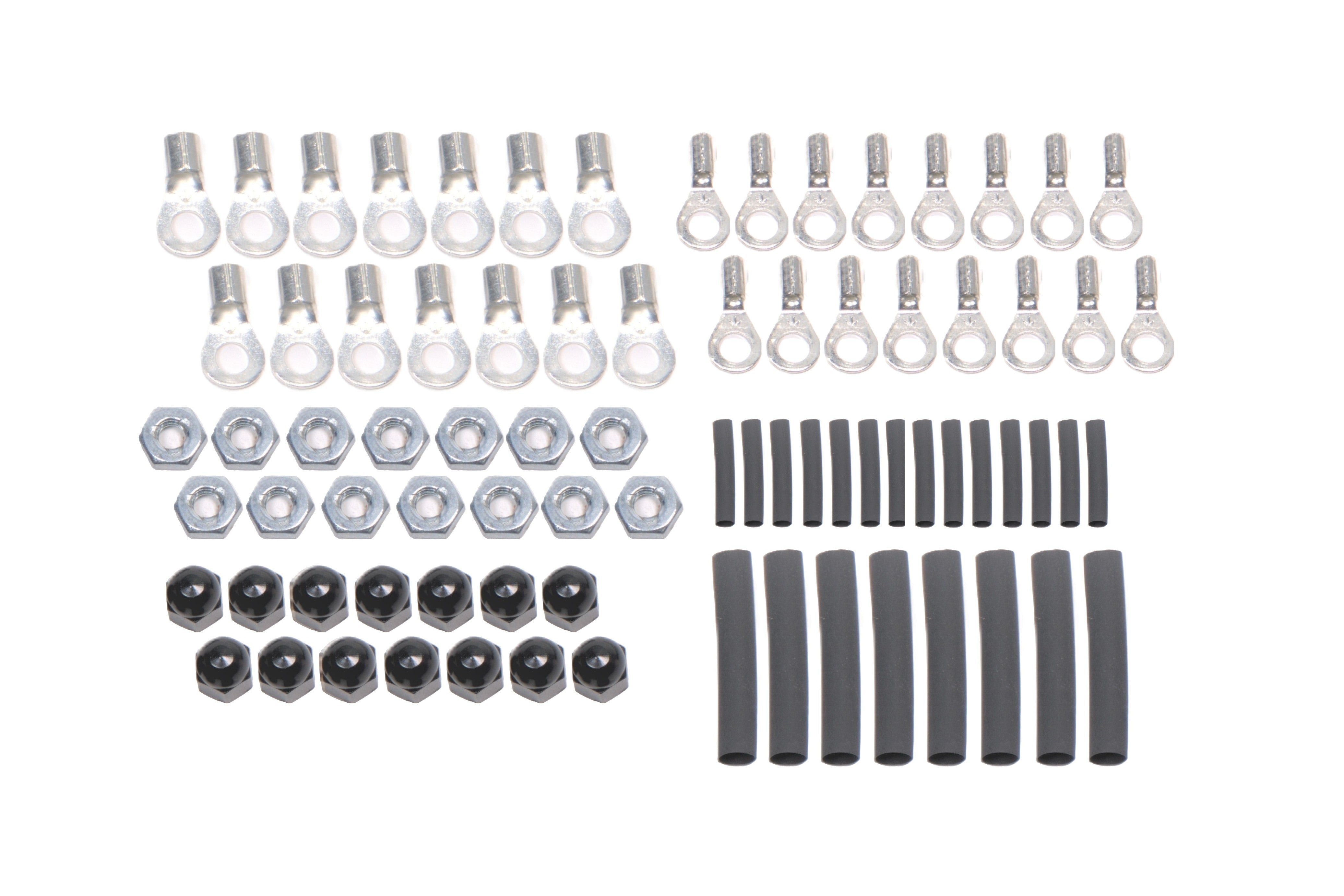

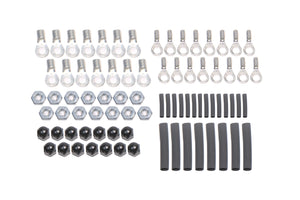

	FCST-X ELECTRICAL KIT APPLICATIONS 20-1990-xx FCST-X 20-1991-00 FCST-X 20-1992-xx FCST-X 20-1993-00 FCST-X 20-1996 Spare Module 20-1997 Spare Module 20-1998 Spare Module 20-1999 Spare Module INCLUDES Ring terminal, 10-12 wire gauge, #10 stud (x16) Ring terminal, 18-22 wire gauge, #10 stud (x14) #10-32 Locking Hex Nut (x14) #10-32 Aluminum Acorn Nut (x14) 1/8" Heat Shrink x 3/4" Long (x14) 3/16" Heat Shrink x 1-1/4" Long (x8)
