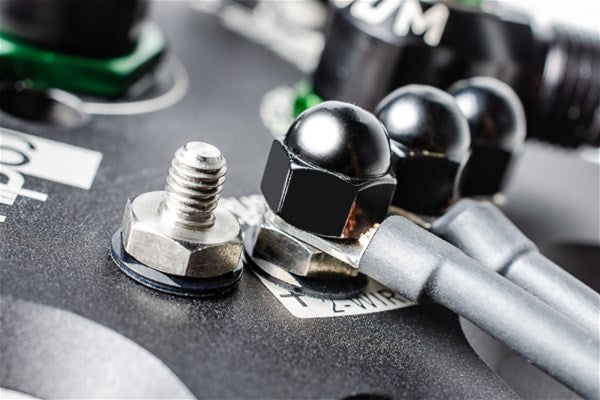

These hermetically sealed bulkhead studs are great for passing high current through a wall or panel. All that is required is a drilled hole. See dimensional requirements below.

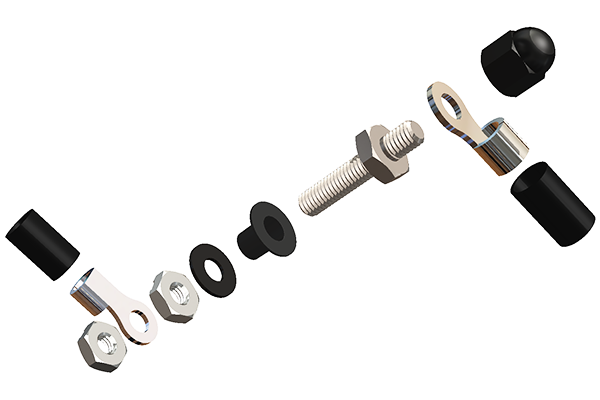

This kit includes 6 stud kits rated to 30amps each. Each electrical conductive stud is custom CNC machined from 304 stainless steel. A special insulating sleeve is included preventing panel conduction and galvanic corrosion. Each ring terminal accepts 10-12 AWG wire. The anodized aluminum nut and heat shrink insulates the exposed areas from accidental shorts. Each stud includes 2 top locking nuts for a reliable connection. The kit is compatible with all fuel types including gasoline, diesel, ethanol, methanol, E85, etc.

DIMENSIONAL REQUIREMENTS

• Drilled Hole Diameter: 0.220"-0.234" (15/64" drill)
• Material Thickness: 0.262"-0.322"

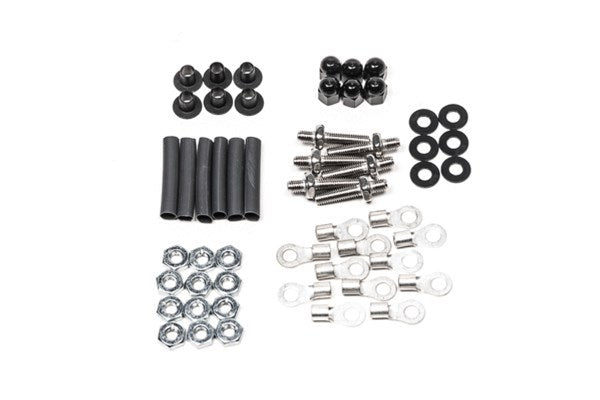

• (6) Electrical studs
• (12) Locking hex nuts
• (6) Anodized aluminum acorn nuts
• (6) Upper insulators
• (6) Lower insulating washers
• (12) Ring terminals
• (6) Black heat shrink
