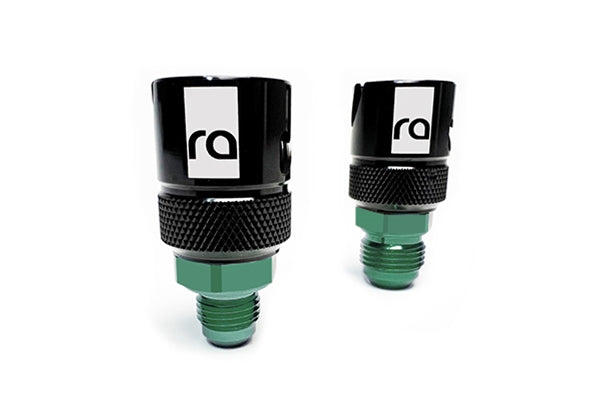

++PRODUCT TO BE DISCONTINUED++

Radium Engineering will be discontinuing these fittings when current inventory is sold out.

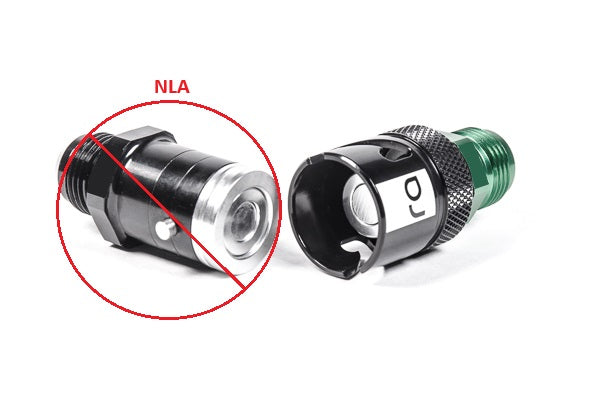

Remaining inventory consists ONLY OF THE OUTER HALF OF THE FITTINGS, 8AN SIZE.
These require an INNER FITTING to mate to (no longer available).

Important Notes:
-Not compatible with methanol fuel.
-These fittings flow equally in both directions and can be installed either way.
-The higher the operating pressure, the more difficult it becomes to connect and disconnect the coupler.
-Due to the dry break coupler design, there will be some inherent flow restriction (pressure drop).
-Naturally there might be a drop when engaging and disengaging.
-Do not disconnect fittings while pumps are running.

Technical Data:
-Overall length: -6AN kit = 82mm, -8AN kit = 87mm
-Weight: -6AN kit = 62g, -8AN kit = 69g
-Average pressure drop across coupler: 1-2psi
-Flow loss: 2% at 800LPH
