Description

OVERVIEW

PTFE is the gold standard for chemically inert hose material, offering exceptional resistance to the harsh fluids commonly found in modern performance vehicles. Radium Engineering’s PTFE hoses are now carbon-lined to help dissipate static charge buildup—an important feature in high-flow fueling systems.

Beyond fuel, PTFE hoses are compatible with oil, transmission fluid, power steering fluid, and coolant. With virtually zero permeation, they won’t emit vapors like traditional rubber hoses, making them a cleaner, safer choice.

Every Radium PTFE hose has been pressure-tested in-house to 1,200 psi, though PTFE is generally rated to handle pressures exceeding 2,500 psi. These hoses are also built to perform in extreme temperatures, from -94°F to +480°F.

Each hose features a seamless extruded PTFRE core wrapped in a stainless steel wire braid and finished with a durable braided PET jacket. All hose ends are constructed from type-II black anodized aluminum for excellent corrosion resistance and a clean, professional finish.

We strongly advise that assembly of this hose be performed by experienced installers and pressure testing of each assembly is performed before the hose is used.

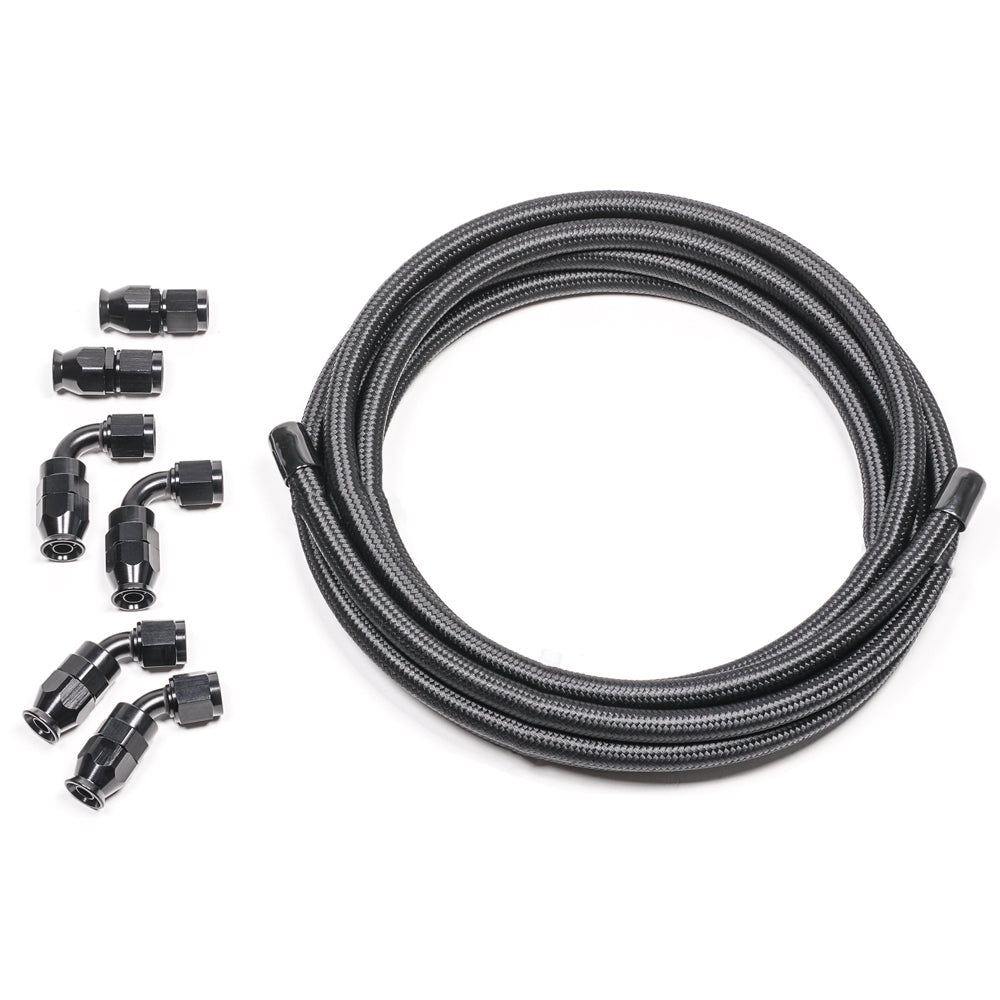

	20-1206 6AN UNIVERSAL PTFE HOSE KIT, BLACK, CARBON Radium PTFE hose kits feature a carbon lined PTFE inner core that is conductive and anti-static to prevent electrostatic discharge. DIMENSIONS 0.33" Inner Diameter 0.50" Outer Diameter INCLUDES Black braided PTFE hose, 14.75ft (4.5m) Black PTFE hose end, straight (x2) Black PTFE hose end, 45 degree (x2) Black PTFE hose end, 90 degree (x2)
	20-1208 8AN UNIVERSAL PTFE HOSE KIT, BLACK, CARBON Radium PTFE hose kits feature a carbon lined PTFE inner core that is conductive and anti-static to prevent electrostatic discharge. DIMENSIONS 0.42" Inner Diameter 0.60" Outer Diameter INCLUDES Black braided PTFE hose, 14.75ft (4.5m) Black PTFE hose end, straight (x2) Black PTFE hose end, 45 degree (x2) Black PTFE hose end, 90 degree (x2)

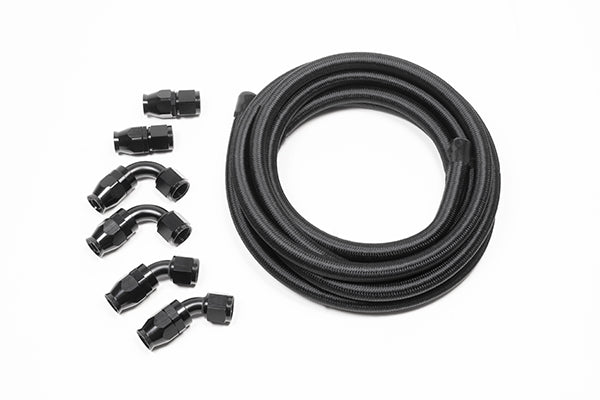

	20-1210 10AN UNIVERSAL PTFE HOSE KIT, BLACK, CARBON Radium PTFE hose kits feature a carbon lined PTFE inner core that is conductive and anti-static to prevent electrostatic discharge. DIMENSIONS 0.51" Inner Diameter 0.70" Outer Diameter INCLUDES Black braided PTFE hose, 14.75ft (4.5m) Black PTFE hose end, straight (x2) Black PTFE hose end, 45 degree (x2) Black PTFE hose end, 90 degree (x2)

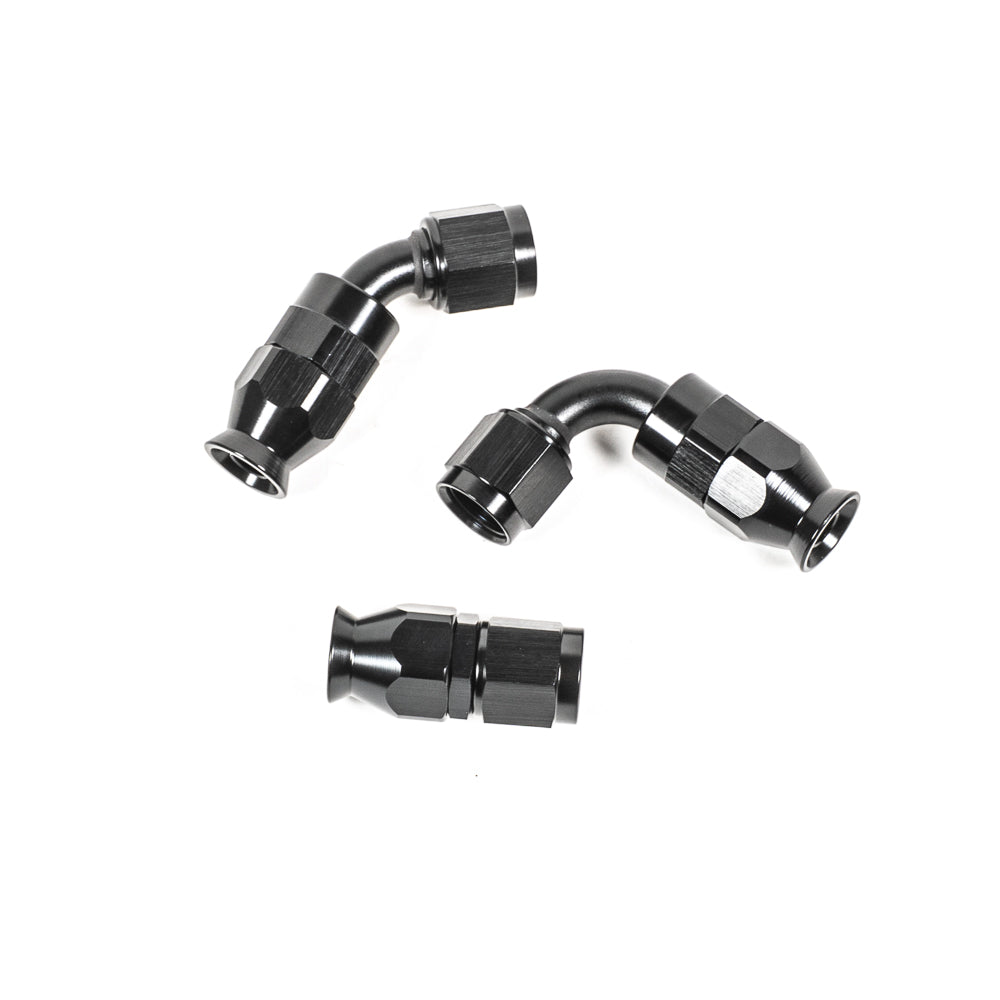

	Additional PTFE Hose Ends PTFE hose ends are specific to PTFE hose and cannot be used with rubber hose. Each fitting is machined from aluminum and anodized black. All hose ends are swiveling type. Radium does not offer any other PTFE hose end sizes or angles other than what is listed on this page. If another size or angle is needed, you can use any PTFE specific hose ends from any other supplier.
