Description

OVERVIEW

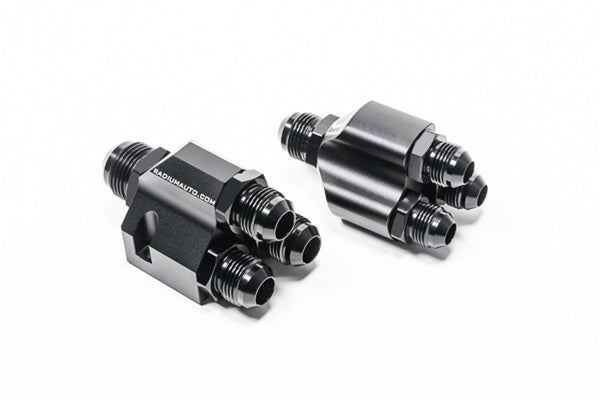

These CNC machined 6061 aluminum fuel distribution blocks ensure the most direct path for unrestricted flow. Both distribution blocks features three AN ORB female ports on one side and one larger AN ORB female port on the opposing side. Because the surface is anodized for corrosion resistance, it can be used in all fluids including: alcohol (ethanol/methanol), gasoline, coolant, water, air, oil, etc.

NOTE: Use oil lubrication on the O-rings prior to installing the fittings.

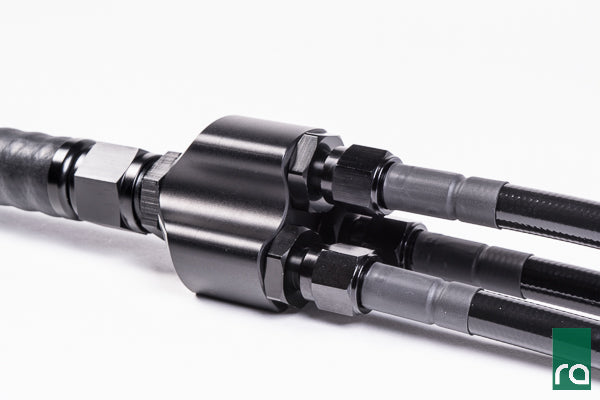

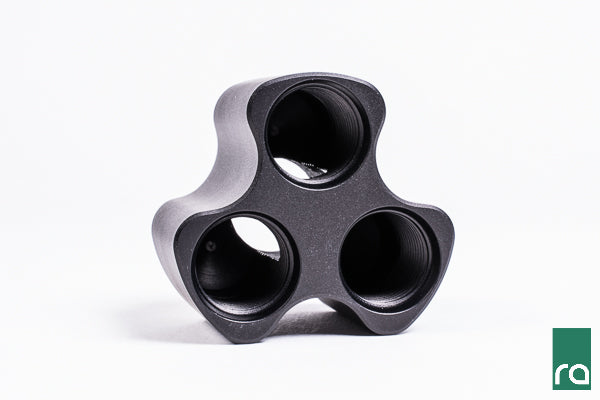

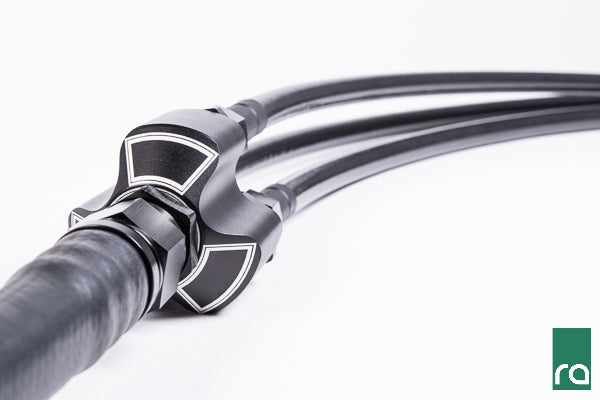

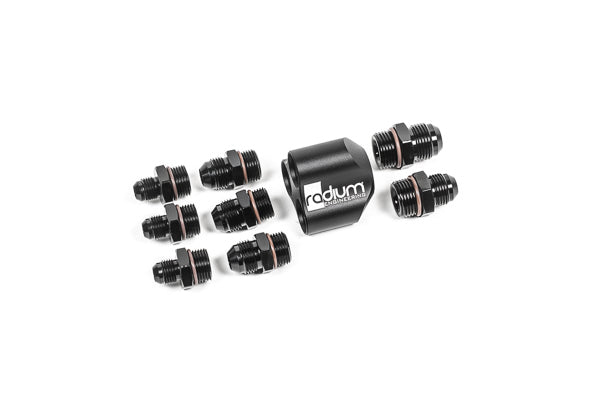

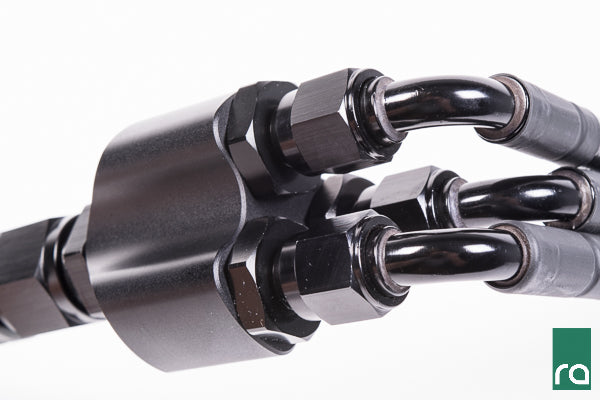

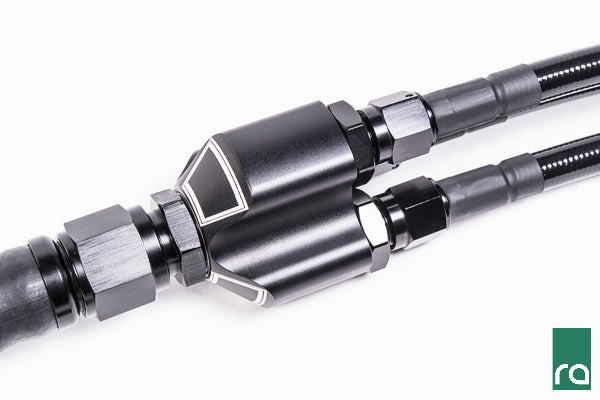

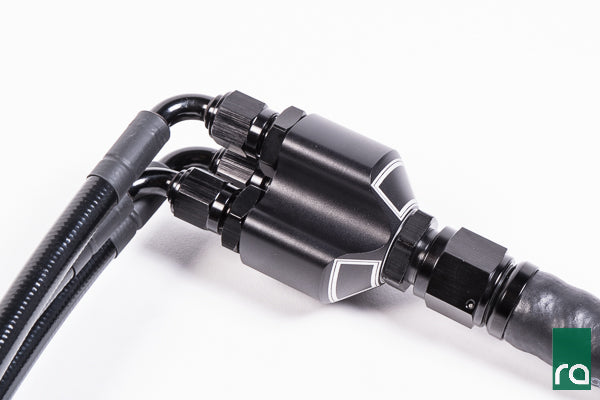

20-0237 DISTRIBUTION BLOCK WITH FITTINGS

This block is machined with one 10AN ORB port and three 8AN ORB ports. The kit includes enough fittings to permit any 6AN-8AN-10AN combination.

INCLUDES

Aluminum Threaded Block (x1)
8AN ORB to 6AN Male Fitting (x3)
8AN ORB to 8AN Male Fitting (x3)
10AN ORB to 8AN Male Fitting (x1)
10AN ORB to 10AN Male Fitting (x1)

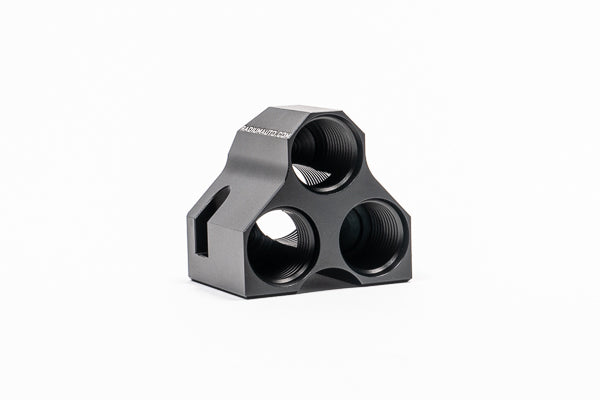

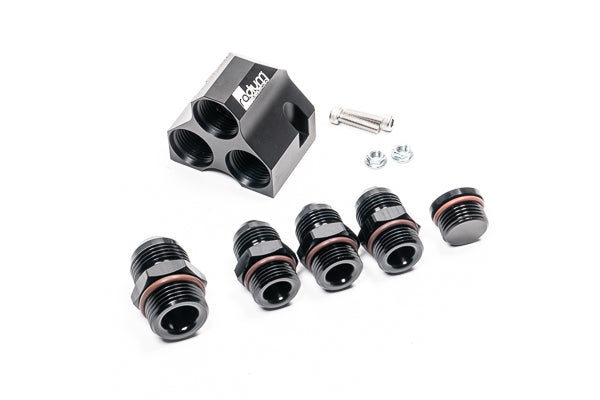

20-0737 DISTRIBUTION BLOCK WITH FITTINGS

This block is machined with one 12AN ORB port and three 10AN ORB ports. There are enough fittings to make a 3 into 1 adapter. However, it can be converted to 2 into 1 if the 10AN ORB plug is used as shown below.

The billet block has a nice flat surface which can be mounted using the provided hardware.

INCLUDES
