OVERVIEW

These fuel fillers are designed to mount directly to Radium Engineering fuel cell surge tanks. There are fuel fillers on this page specific to both the FCST (while supplies last) and the FCST-X.

20-1197-V FCST-X 3-Bolt Direct Mount Fill Neck and Cap Vented

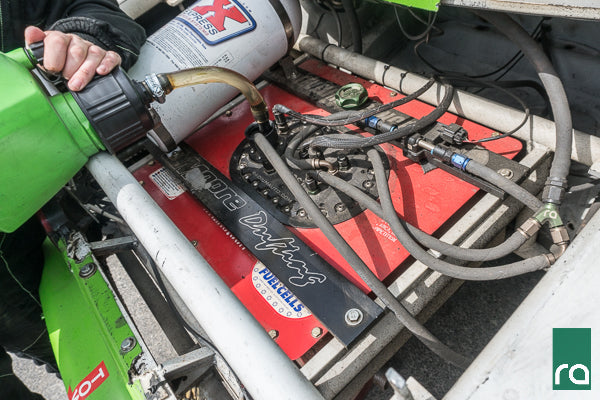

This direct mounted fill neck and cap is perfect for filling directly into the fuel cell.

Fits FCST-X only. Does NOT fit FCST.

20-1060 FCST-X Fill Neck Block-Off Kit

This blocks-off the filler hole on the Radium FCST-X (ONLY).

Fits FCST-X only. Does NOT fit FCST.

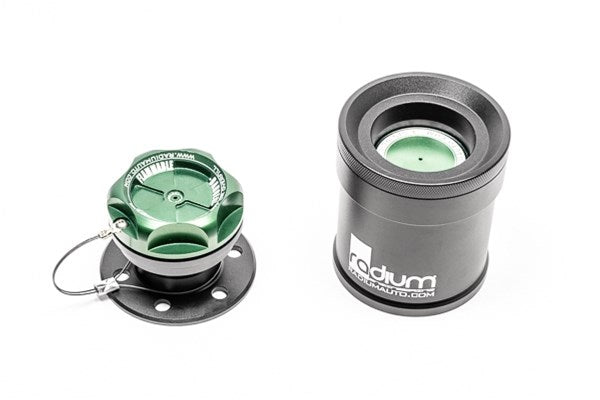

20-0495-V FCST 6-Bolt Dry Break 1.5in Female Direct Mount Vented

Designed for direct mounting onto a fuel cell. For mating, a 6-bolt flange with a 2.18" PCD bolt circle (as found on the older FCST) is required. The components, materials, and seals are compatible with all fuel types (unleaded and leaded gasoline, diesel, AV gas, methanol, ethanol, E15, E85, etc.). When installed the full height of the dry break is 3.43" (Dry Break to Gasket). It mates to both the 20-0496 and 20-0996 1.5" dry break probes found on Radium dry break dump cans.

This product does not fit the FCST-X.
