COMPATIBILITY

Mitsubishi EVO 7 with 5-Spd manual transmission
Mitsubishi EVO 8 with 5-Spd and 6-Spd transmissions
Mitsubishi EVO 9 with 5-Spd and 6-Spd transmissions
Mitsubishi EVO 10 with 5-Spd manual transmission
Mitsubishi Galant EC5 with 5-Spd manual transmission

OVERVIEW

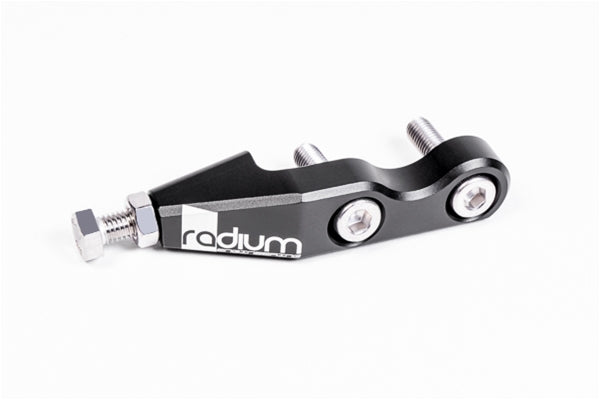

The Radium Engineering clutch fork return stop addresses a common problem on the Mitsubishi EVO pull-type clutch slave cylinder. During hard shifting and fast clutch pedal operation, the clutch fork can return too far and cause the throw-out bearing to become unclipped from the clutch fork. This results in expensive transmission removal to fix. The Radium clutch return stop prevents the fork from over-traveling, eliminating a throw-out bearing issue. Inexpensive insurance to protect your clutch. The clutch stop is multi-axis CNC machined in order to position the hex bolt precisely square with the clutch fork.

INCLUDES

• CNC machined/anodized clutch fork stop
• Stainless steel adjustment screw and lock nut
• Stainless steel mounting bolts
