OVERVIEW

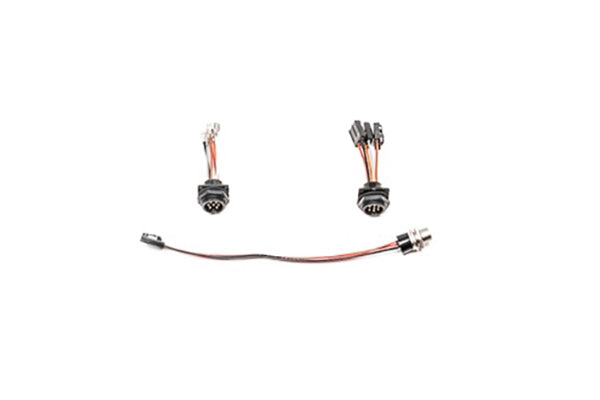

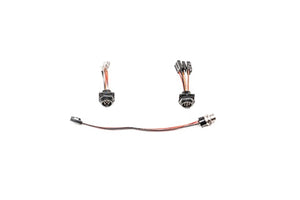

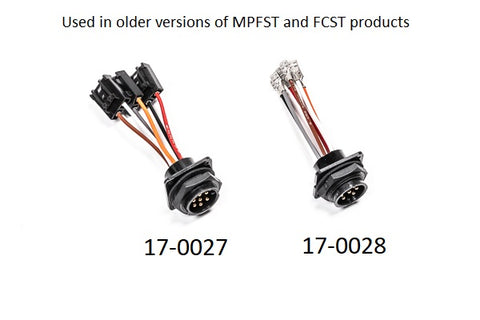

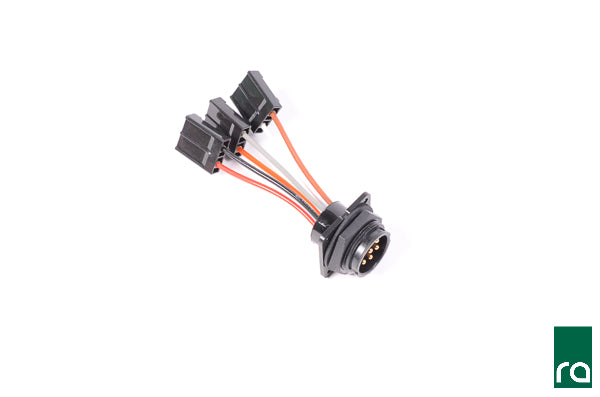

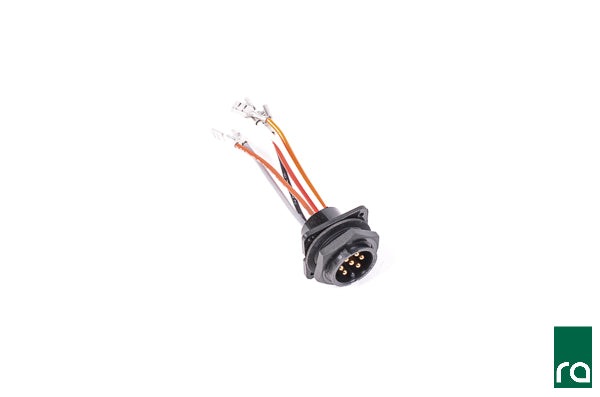

These plastic (7 pin) bulkhead connectors were used in legacy Radium Engineering products prior to switching to threaded stud connectors. Limited stock is available of some of the old bulkhead versions. This page reflects current availability, no other connectors are available any longer. These part numbers will not be restocked once they are sold out.



If the correct pump connector for your application is not available on this page, then one of the part numbers above will need to be modified by cutting the wires and soldering on new connectors.

PANEL REQUIREMENTS

All panels must be 0.06-0.18 inches thick to install this connector. See the drawing below for cutouts for each bulkhead connector. A gasket is included on the large connector for sealing against panel surface.
