OVERVIEW

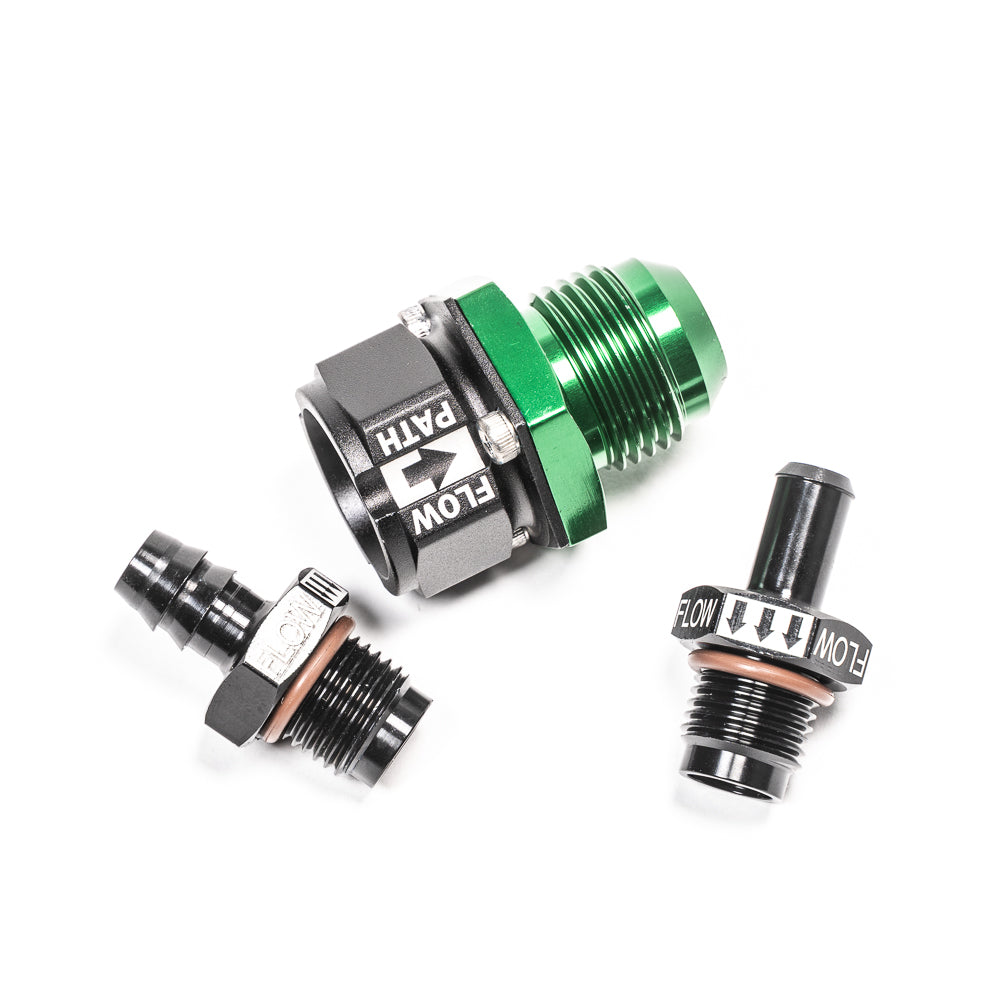

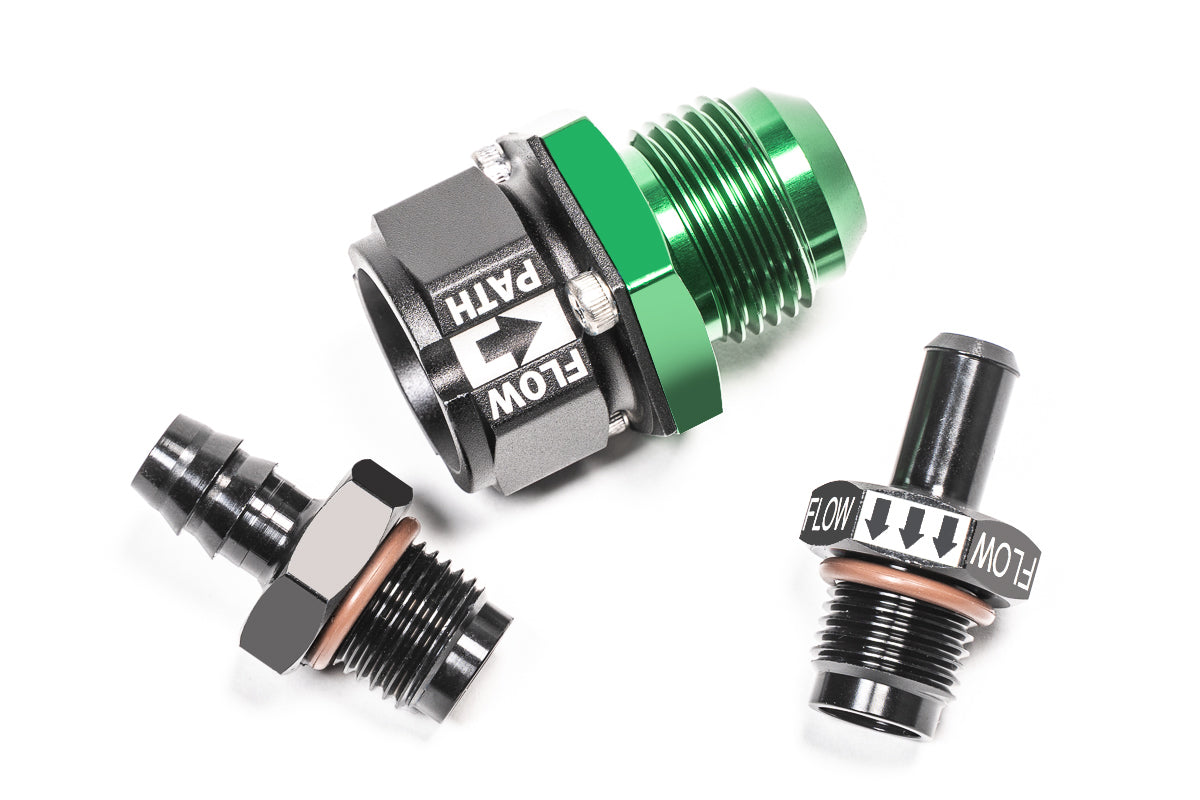

A 1-way check valve permits flow in 1 direction only. Radium Engineering check valves feature a lightweight anodized aluminum body with FKM seals and stainless steel hardware.

The check valve is compatible in multiple applications including gasoline, ethanol, methanol, diesel, water, coolant, oil, etc.

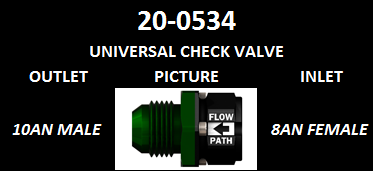

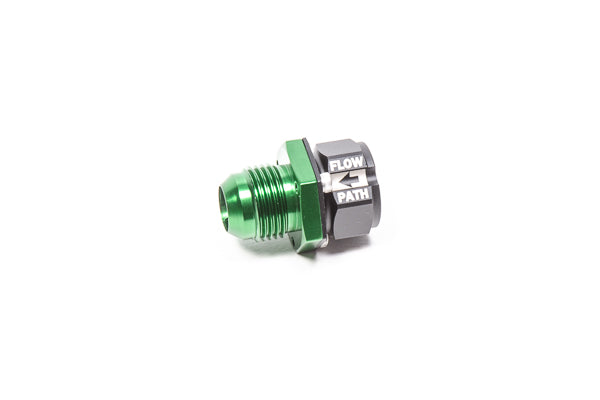

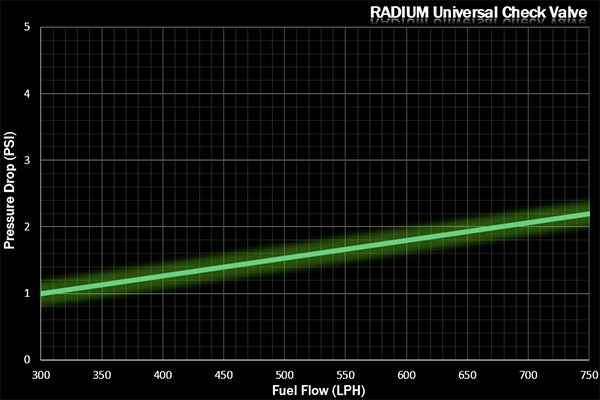

	20-0534 UNIVERSAL CHECK VALVE The internal plunger's aerodynamic shape warrants a smooth laminar stream. All female AN ports can accept 37 degree flare male fittings and/or ORB (O-ring boss) male fittings. The flow direction is laser etched on the side of the part. In it's native form without adapter fittings, the universal check valve uses a 10AN male outlet and a 8AN female inlet. SPECIFICATIONS Body Seal: FKM Plunger Seal: FKM Hardware: Stainless Steel Spring Material: Stainless Steel Plunger Material: Stainless Steel Body Material: Anodized Aluminum Check Valve Type: Spring-Loaded Piston Large Hex: 30mm (or 1-3/16") Length, No Adapters: 1.72" (43.6mm) Cracking Pressure: 0.3 psi @ 70F Max Operating Pressure: 1000+psi @ 70F Backflow Holding Pressure: 1000+psi @ 70F

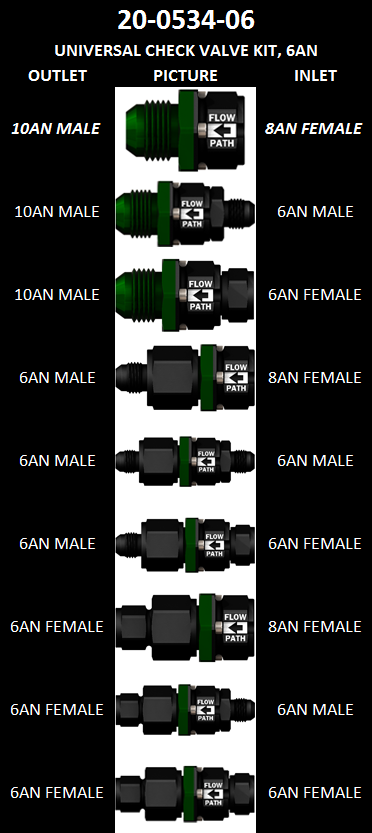

	20-0534-06 UNIVERSAL CHECK VALVE KIT, 6AN The 6AN kit includes the 20-0534 check valve body but adds all the necessary adapter fittings to convert both the inlet and the outlet to 6AN male and/or 6AN female. Shown below are all of the adapter fitting scenarios for this check valve kit. SPECIFICATIONS Body Seal: FKM Plunger Seal: FKM Hardware: Stainless Steel Spring Material: Stainless Steel Plunger Material: Stainless Steel Body Material: Anodized Aluminum Check Valve Type: Spring-Loaded Piston Large Hex: 30mm (or 1-3/16") Length, No Adapters: 1.72" (43.6mm) Cracking Pressure: 0.3 psi @ 70F Max Operating Pressure: 1000+psi @ 70F Backflow Holding Pressure: 1000+psi @ 70F

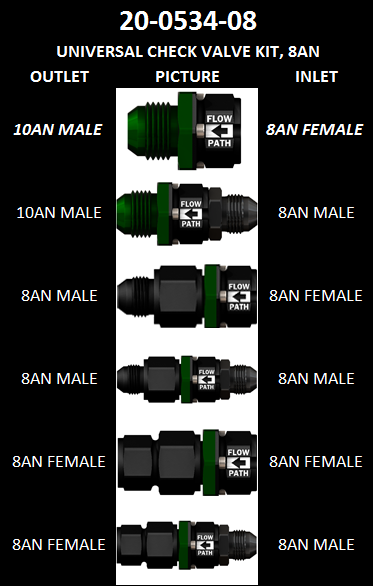

	20-0534-08 UNIVERSAL CHECK VALVE KIT, 8AN The 8AN kit includes the 20-0534 check valve body but adds all the necessary adapter fittings to convert both the inlet and the outlet to 8AN male and/or 8AN female. Shown below are all of the adapter fitting scenarios for this check valve kit. SPECIFICATIONS Body Seal: FKM Plunger Seal: FKM Hardware: Stainless Steel Spring Material: Stainless Steel Plunger Material: Stainless Steel Body Material: Anodized Aluminum Check Valve Type: Spring-Loaded Piston Large Hex: 30mm (or 1-3/16") Length, No Adapters: 1.72" (43.6mm) Cracking Pressure: 0.3 psi @ 70F Max Operating Pressure: 1000+psi @ 70F Backflow Holding Pressure: 1000+psi @ 70F
	20-0534-10 UNIVERSAL CHECK VALVE KIT, 10AN The 10AN kit includes the 20-0534 check valve body but adds all the necessary adapter fittings to convert both the inlet and the outlet to 10AN male and/or 10AN female. Shown below are all of the adapter fitting scenarios for this check valve kit. SPECIFICATIONS Body Seal: FKM Plunger Seal: FKM Hardware: Stainless Steel Spring Material: Stainless Steel Plunger Material: Stainless Steel Body Material: Anodized Aluminum Check Valve Type: Spring-Loaded Piston Large Hex: 30mm (or 1-3/16") Length, No Adapters: 1.72" (43.6mm) Cracking Pressure: 0.3 psi @ 70F Max Operating Pressure: 1000+psi @ 70F Backflow Holding Pressure: 1000+psi @ 70F

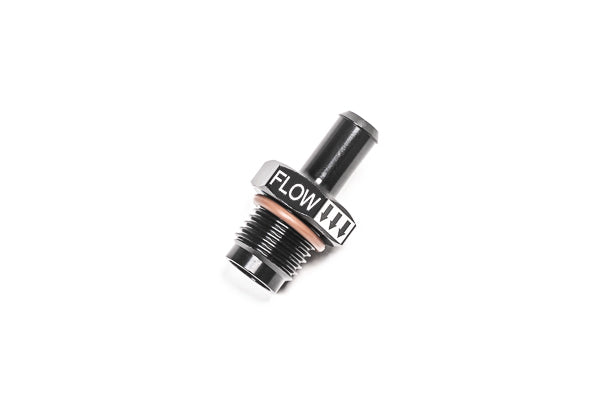

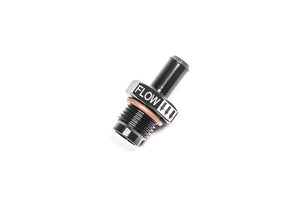

	20-1533 CHECK VALVE, 6AN ORB TO 8.5MM BARB As depicted, the flow direction is laser etched on the side of the hex. NOTE: For internal valve purposes, the length under the threads is extended. This area (shown above) adds an additional 3.4mm when compared to a standard 6AN ORB fitting. SPECIFICATIONS O-Ring Seals: FKM Plunger Seal: FKM Hardware: Stainless Steel Spring Material: Stainless Steel Plunger Material: Stainless Steel Body Material: Anodized Aluminum Check Valve Type: Spring-Loaded Piston Port Threads: 6AN ORB (9/16"-18) Compatible Hose ID: 8-9mm (5/16") Hex Size: 19mm (3/4") Total Length: 1.4" (46mm) Cracking Pressure: 0.3 psi @ 70F Max Operating Pressure: 1000+psi @ 70F Backflow Holding Pressure: 1000+psi @ 70F

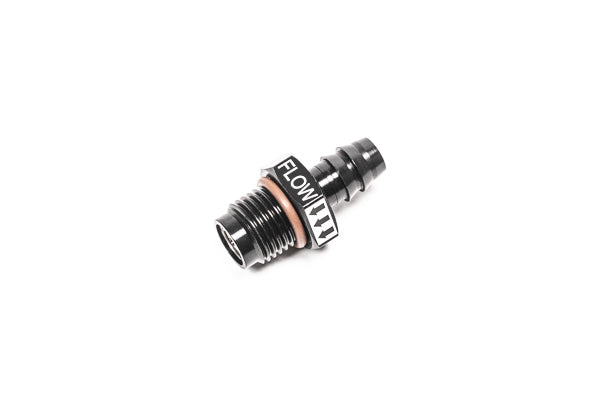

	20-1534 CHECK VALVE, 6AN ORB TO 10MM BARB As depicted, the flow direction is laser etched on the side of the hex. NOTE: For internal valve purposes, the length under the threads is extended. This area (shown above) adds an additional 3.4mm when compared to a standard 6AN ORB fitting. SPECIFICATIONS O-Ring Seals: FKM Plunger Seal: FKM Hardware: Stainless Steel Spring Material: Stainless Steel Plunger Material: Stainless Steel Body Material: Anodized Aluminum Check Valve Type: Spring-Loaded Piston Port Threads: 6AN ORB (9/16"-18) Compatible Hose ID: 9.5-10.5mm (3/8') Hex Size: 19mm (3/4") Total Length: 1.4" (46mm) Cracking Pressure: 0.3 psi @ 70F Max Operating Pressure: 1000+psi @ 70F Backflow Holding Pressure: 1000+psi @ 70F
