Description

OVERVIEW

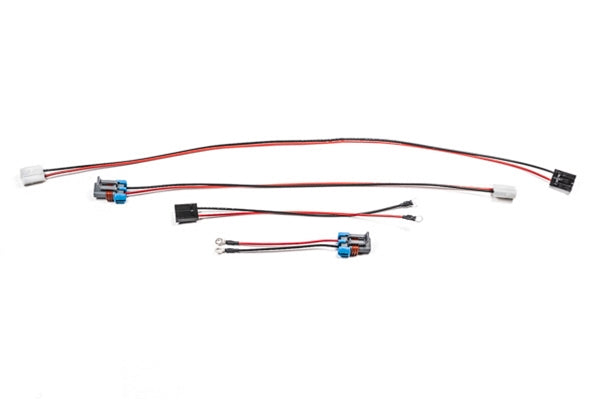

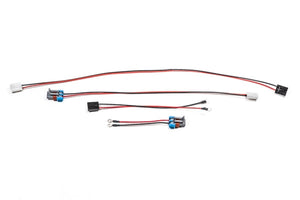

These fuel pump connector harnesses serve as replacements for wiring harnesses used in Radium hangers, fuel pump install kits, surge tanks, and FCST units. They can also be used universally. All harnesses are constructed from ETFE wire, safe for submersion in all popular fuel types.

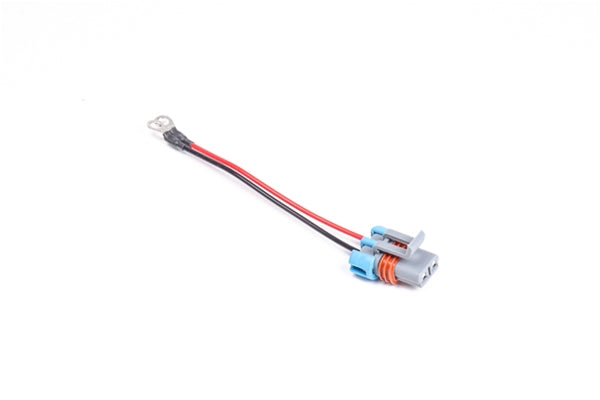

	17-0049-00 Fuel Pump Connector Harness Walbro E85 This fuel pump harness is a replacement or add-on for many Radium Engineering components. SPECIFICATIONS Length: 6.2" (end to end) Ring Terminals: #10 Screw ETFE Wires: 14 AWG PUMP COMPATIBILITY Walbro (Ti Automotive) F90000267 416LPH Walbro (Ti Automotive) F90000274 416LPH Walbro (Ti Automotive) F90000285 450LPH Walbro (Ti Automotive) F90000295 537LPH

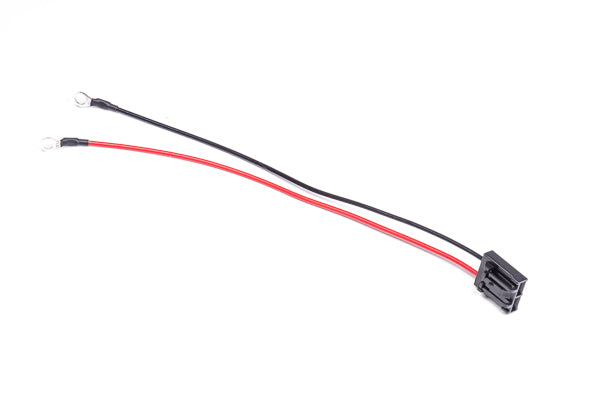

	17-0051-00 Fuel Pump Connector Harness Walbro 255 This fuel pump harness is a replacement or add-on for many Radium Engineering components. SPECIFICATIONS Length: 10" (end to end) Ring Terminals: #10 Screw ETFE Wires: 14 AWG PUMP COMPATIBILITY Walbro GSS341 255LPH Walbro GSS342 255LPH AEM 50-1000 Gas AEM 50-1200 E85 AEM 50-1220 E85 Aeromotive 340R 11141 Aeromotive 340R 11142 Deatschwerks 9-301-1000

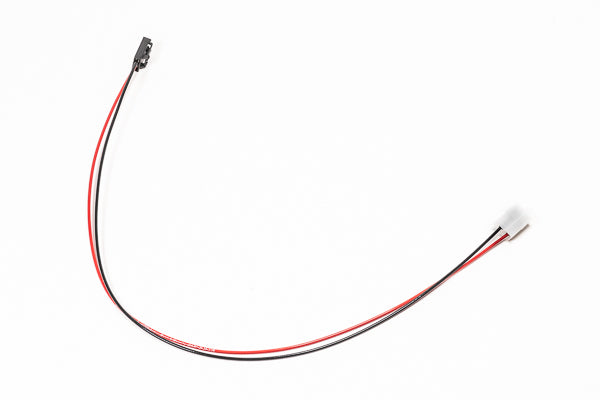

	17-0053 Fuel Pump Connector Harness Porsche Walbro This fuel pump harness is a replacement or add-on for many Radium Engineering components. The white connector also plugs directly into the underside of many OEM fuel pump hangers including the Porsche 996. SPECIFICATIONS Length: 23" (end to end) ETFE Wires: 14 AWG PUMP COMPATIBILITY Walbro GSS341 255LPH Walbro GSS342 255LPH AEM 50-1000 Gas AEM 50-1200 E85 AEM 50-1220 E85 Aeromotive 340R 11141 Aeromotive 340R 11142 Deatschwerks 9-301-1000
	17-0054 Fuel Pump Connector Harness Porsche Walbro This fuel pump harness is a replacement or add-on for many Radium Engineering components. The white connector also plugs directly into the underside of many OEM fuel pump hangers including the Porsche 996. SPECIFICATIONS Length: 17" (end to end) ETFE Wires: 14 AWG PUMP COMPATIBILITY Walbro (Ti Automotive) F90000267 416LPH Walbro (Ti Automotive) F90000274 416LPH Walbro (Ti Automotive) F90000285 450LPH Walbro (Ti Automotive) F90000295 537LPH

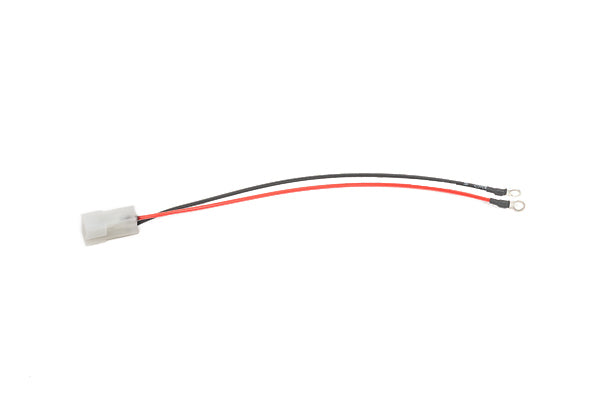

	17-0056 Fuel Pump Connector Harness Porsche with Ring Terminals This harness connects directly to Radium hangers using eyelet connectors, and connects to the 17-0053 and 17-0054 Porsche connector harnesses. SPECIFICATIONS Length: 11" (end to end) ETFE Wires: 14 AWG

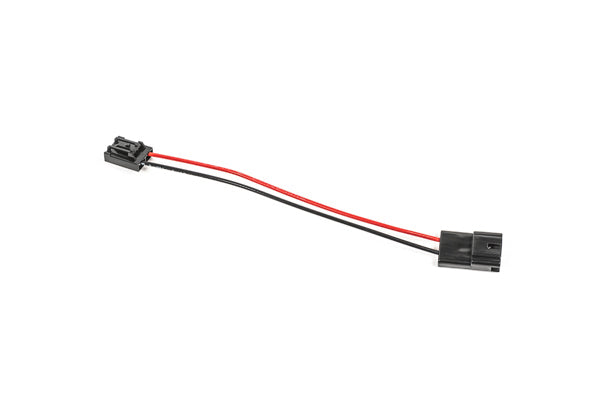

	17-0058 Fuel Pump Connector Extension, Walbro 255 This fuel pump harness extension is a replacement or add-on for many Radium Engineering components. It incorporates female terminals on one side and the corresponding male terminals on the opposing side. SPECIFICATIONS Length: 9" (end to end) ETFE Wires: 14 AWG PUMP COMPATIBILITY Walbro GSS341 255LPH Walbro GSS342 255LPH AEM 50-1000 Gas AEM 50-1200 E85 AEM 50-1220 E85 Aeromotive 340R 11141 Aeromotive 340R 11142 Deatschwerks 9-301-1000

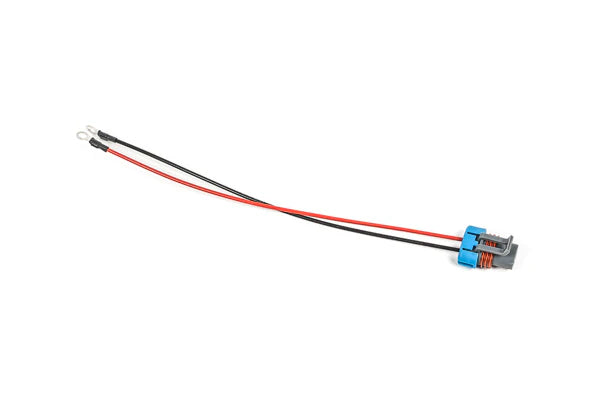

	17-0069 Fuel Pump Connector Harness, Walbro E85, Long This fuel pump harness is a replacement or add-on for many Radium Engineering components. SPECIFICATIONS Length: 11.2" (end to end) Ring Terminals: #10 Screw ETFE Wires: 14 AWG PUMP COMPATIBILITY Walbro (Ti Automotive) F90000267 416LPH Walbro (Ti Automotive) F90000274 416LPH Walbro (Ti Automotive) F90000285 450LPH Walbro (Ti Automotive) F90000295 537LPH

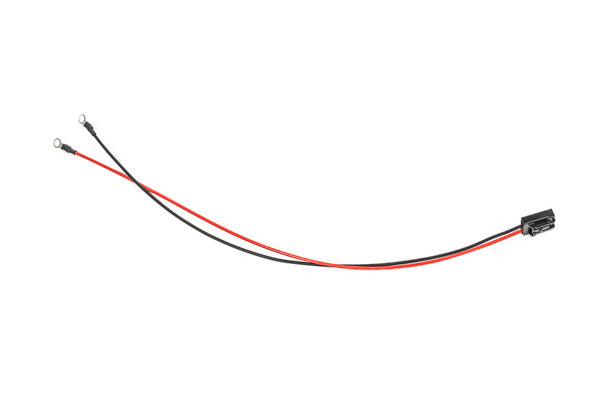

	17-0071 Fuel Pump Connector Harness, Walbro 255, Long This fuel pump harness is a replacement or add-on for many Radium Engineering components. SPECIFICATIONS Length: 16" (end to end) Ring Terminals: #10 Screw ETFE Wires: 14 AWG PUMP COMPATIBILITY Walbro GSS341 255LPH Walbro GSS342 255LPH AEM 50-1000 Gas AEM 50-1200 E85 AEM 50-1220 E85 Aeromotive 340R 11141 Aeromotive 340R 11142 Deatschwerks 9-301-1000
