• Nissan R35 GT-R

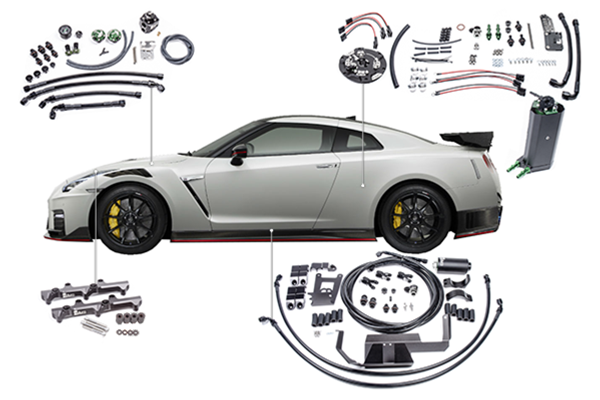

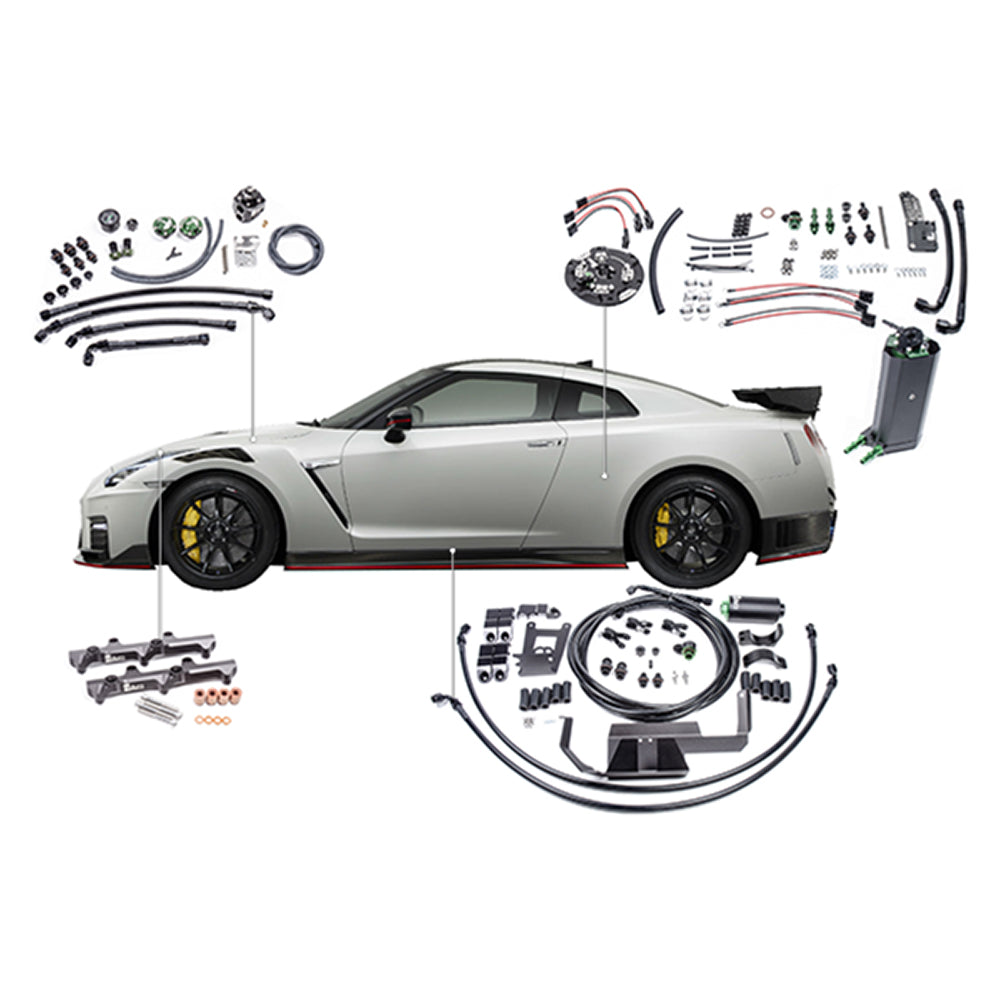

This comprehensive kit includes all the Radium Engineering components required to construct a high performance fuel delivery system for the Nissan R35 GT-R. NOTE: the fuel feed kit is not compatible with RHD vehicles.

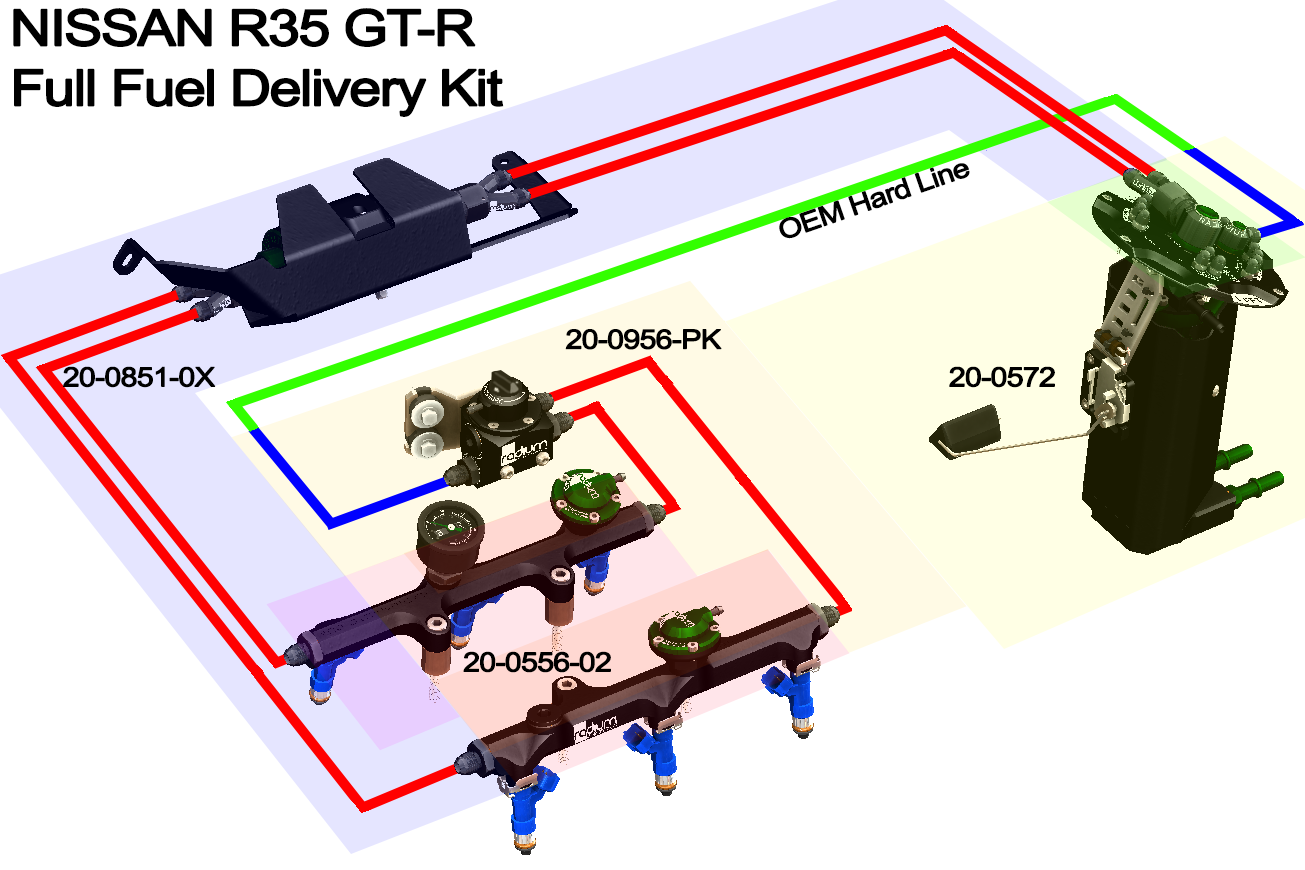

The Radium in-tank fuel pump hanger, fuel feed, fuel rail, pressure regulator, pulse damper completely replace the restrictive OEM fuel system with a setup capable of supporting any power level and safe to use with gasoline and alternative fuels such as methanol and ethanol.

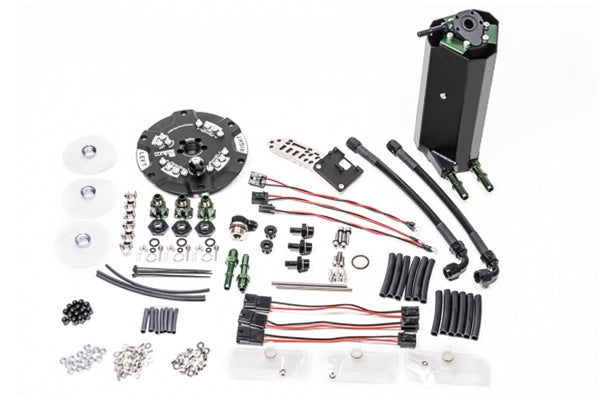

The in-tank fuel hanger replaces the factory unit and can be configured with a variety of different fuel pump options. More details on the 20-0572 fuel hanger can be found HERE.

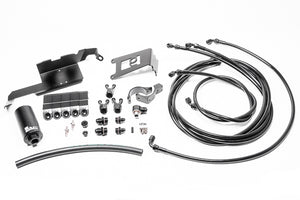

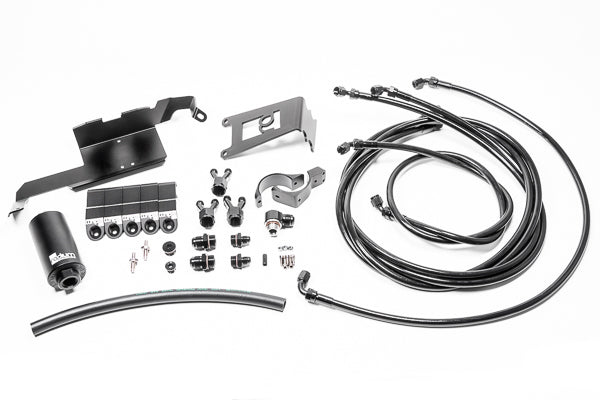

The fuel lines include pre-fabricated PTFE hoses, a high flow fuel filter, AN fittings and other required parts to plumb fuel to and from the fuel rails. More details on the 20-0851-0X fuel feed kits can be found HERE.

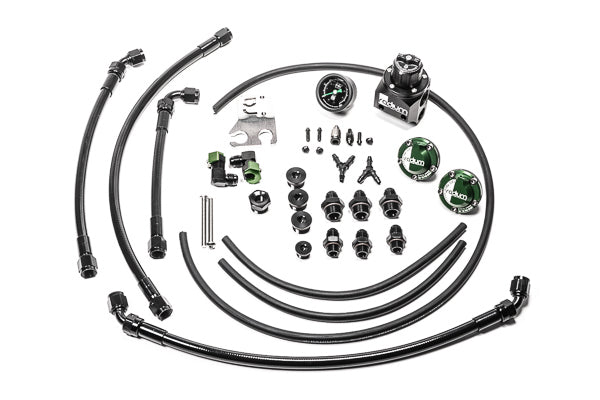

The included fuel pressure regulator, pulse dampers, gauge and fittings control the flow to the fuel rails. More details on the 20-0956-PK fuel rail plumbing kit can be found HERE.

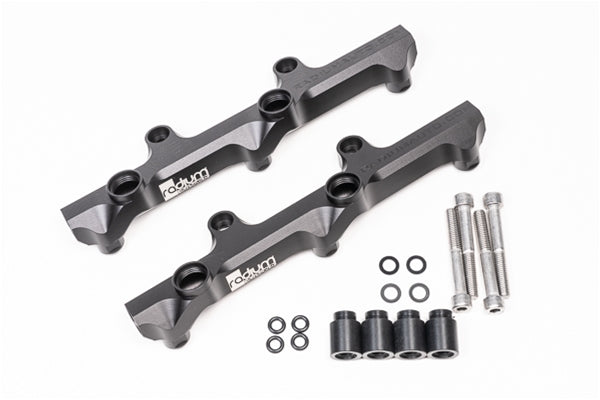

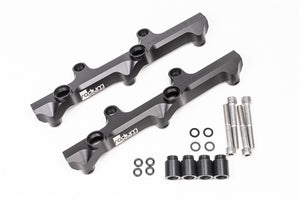

Finally fuel enters the VR38DETT engine through high-flow fuel rails. Fuel Injectors are required. More details on the 20-0556-02 fuel rails can be found HERE.

HOW TO ORDER

• Required items are preselected. If you already have any of the parts with check boxes next to them, you can uncheck them to remove them from the package
• Select a fuel pump hanger that matches the part number of the fuel pump(s) you wish to install into it.
• Select the fuel hanger plumbing kit by filter type. Stainless are 10 micron and Microglass are a finer 6 micron filtration. Stainless filters have elements that can be cleaned and reused.
• Choose your fuel pumps, make sure that they match the hanger selected earlier. If using a pump not available from Radium, choose none to receive no pumps. Pumps will NOT come preinstalled into the hanger: assembly is required.
• DIY fuel pump wiring kits are preselected. If you do not need all 3 wiring kits, deselect the ones you do not want.
• After all selections are made double check them for accuracy and add item to cart and proceed to checkout.

• 20-0572 Fuel Pump Hanger
• 20-0556-02 Fuel Rails
• 20-0956-PK Fuel Rail Plumbing Kit
• 20-0851-03 or 20-0851-05 Hanger Plumbing Kit (selectable)
• Optional Ti Automotive BKS1001 590lph brushless fuel pumps
• Optional 17-0031 DIY wiring kits

NOT INCLUDED

• Fuel injectors
• Some compatible fuel pumps not available from Radium directly
