OVERVIEW

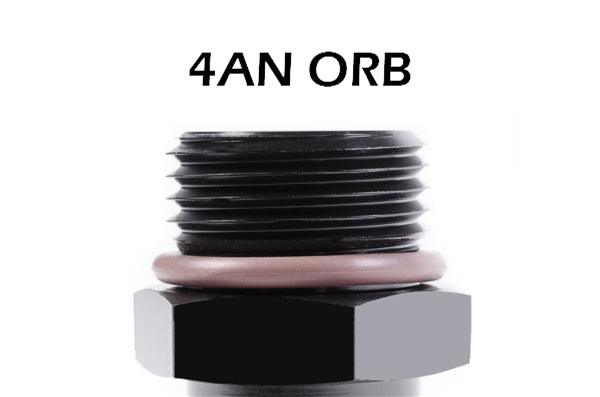

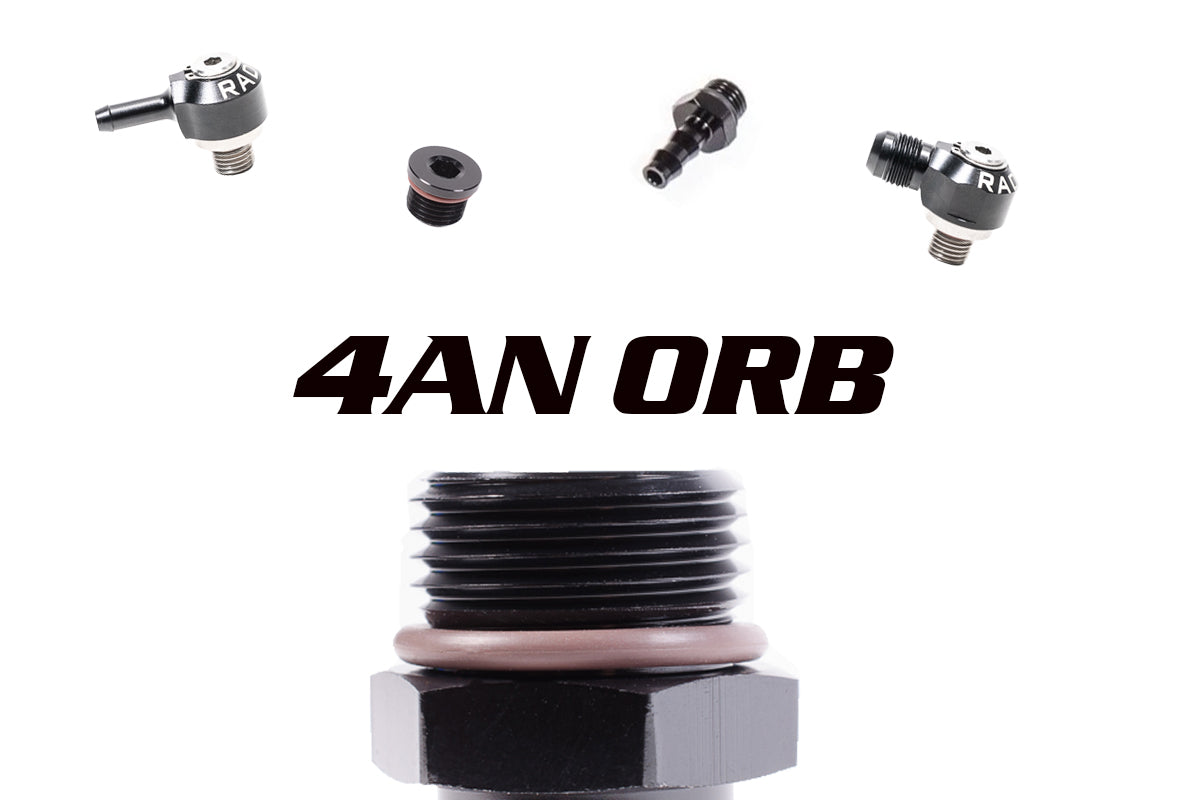

These anodized billet aluminum adapter fittings can be used in any application using a 7/16"-20 O-ring port. This is the same thread pitch used in 4AN ORB (O-Ring Boss) fittings. They all feature FKM O-rings for all oil and fuel types. O-rings should be lubricated with engine oil, o-ring lube, or petroleum jelly before installation.
SPECIFICATIONS

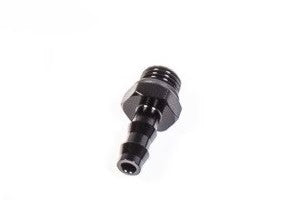

14-0232 4AN ORB to 8mm Barb
- Side 1: 4AN ORB male
- Side 2: 8mm hose barb
- Material: anodized aluminum

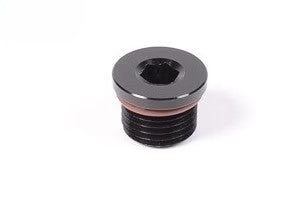

14-0348 4AN ORB Plug
- Side 1: 4AN ORB male
- Side 2: plug
- Material: anodized aluminum

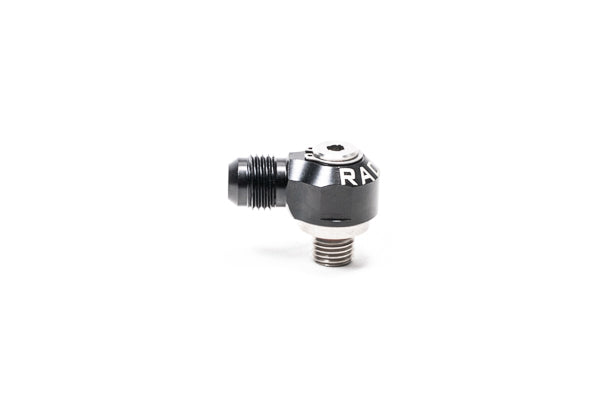

20-1000-0406 4AN ORB Swivel Banjo to 6AN Male
- Side 1: 4AN ORB male
- Side 2: 6AN male flare
- Material: anodized aluminum, stainless steel

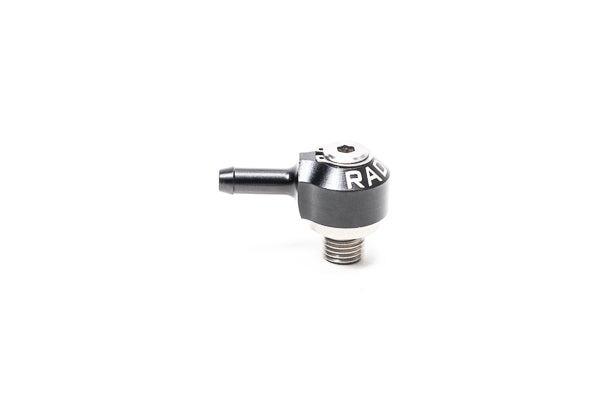

20-1000-0465 4AN ORB Swivel Banjo to 6.5mm Barb
- Side 1: 4AN ORB male
- Side 2: 6.5mm hose barb
- Material: anodized aluminum, stainless steel

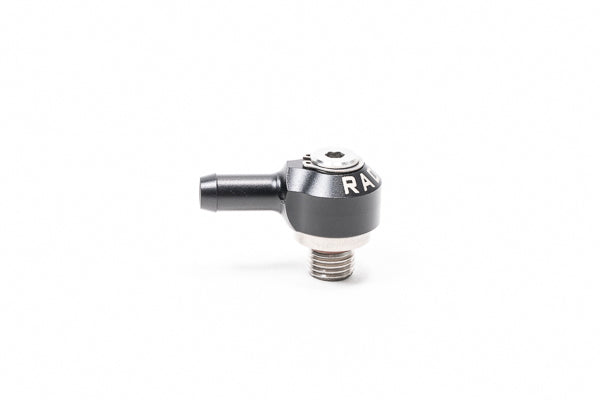

20-1000-0485 4AN ORB Swivel Banjo to 8.5mm Barb
- Side 1: 4AN ORB male
- Side 2: 8.5mm hose barb
- Material: anodized aluminum, stainless steel

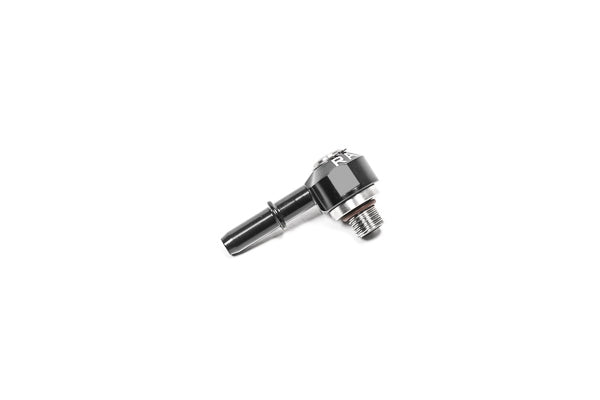

20-1000-04313 4AN ORB Swivel Banjo to 5/16in SAE Male
- Side 1: 4AN ORB male
- Side 2: 5/16" SAE quick connect male
- Material: anodized aluminum, stainless steel
INSTALLATION
O-ring fittings should be installed with lubrication on the o-rings to avoid damage and ensure a smooth installation. Common acceptable lubricants include o-ring lube, petroleum jelly, and motor oil.
INCLUDED
Each part includes one fitting with an FKM o-ring.
