OVERVIEW
This aluminum CNC machined fitting allows flexibility when plumbing a coolant or fuel system using multiple pumps or fuel rails. It features two -6AN ORB (9/16-18 thread) ports and two -8AN ORB (3/4-16 thread) ports. Approximately 4.5 inches long. The 6AN ORB ports are 2.85 inches apart (center to center). Fully anodized and resistance to all fuel types.
SPECS & FEATURES
20-0062 4-Port Manifold Universal
Features two 6AN ORB (9/16"-18 thread) ports and two 8AN ORB (3/4"-16 thread) ports. Approximately 4.5 inches long. The 6AN ORB ports are 2.85 inches apart (center to center). Fully anodized and resistance to all fuel types.
20-0063 4-Port Manifold Bosch 044 Pumps
This kit allows flexibility when plumbing a fuel system using multiple Bosch pumps, but does not allow check valves to be used. For this reason, dual pumps can not be staged with this kit.
Features two 6AN ORB (9/16"-18 thread) ports and two 8AN ORB (3/4"-16 thread) ports. Approximately 4.5 inches long. The 6AN ORB ports are 2.85 inches apart (center to center). Fully anodized and resistance to all fuel types.
20-0463 4-Port Manifold Bosch 044 Pumps Reuses Check Valves
This kit allows flexibility when plumbing a fuel system using multiple Bosch pumps. The included Bosch pump adapters allow the use of the Bosch check valves so these pumps can be staged in a dual pump configuration.
Features two 6AN ORB (9/16"-18 thread) ports and two 8AN ORB (3/4"-16 thread) ports. Approximately 4.5 inches long. The 6AN ORB ports are 2.85 inches apart (center to center). Fully anodized and resistance to all fuel types.
INCLUDED

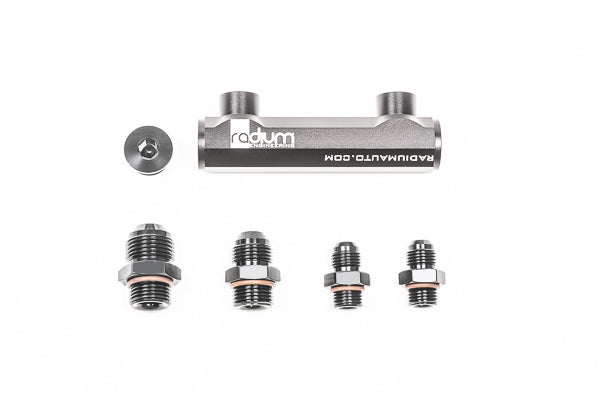

20-0062 4-Port Manifold Universal
- 8AN ORB Plug
- 8AN ORB to 8AN Male Fitting
- 8AN ORB to 10AN Male Fitting
- 6AN ORB to 6AN Male Fitting (x2)

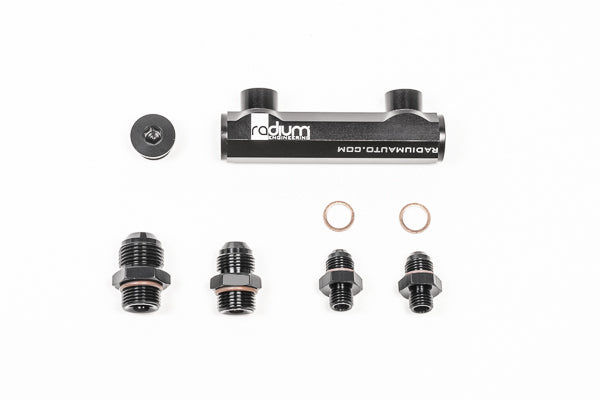

20-0063 4-Port Manifold Bosch 044 Pumps
- 8AN ORB Plug
- 8AN ORB to 8AN Male Fitting
- 8AN ORB to 10AN Male Fitting
- M12x1.5 to 6AN Male Fitting (x2)

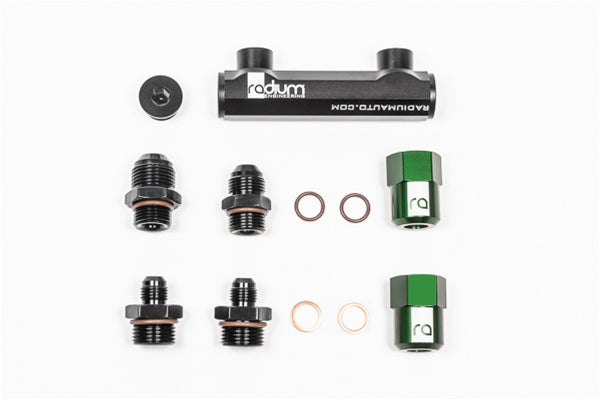

20-0463 4-Port Manifold Bosch 044 Pumps Reuses Check Valves
- 8AN ORB Plug
- 8AN ORB to 8AN Male Fitting
- 8AN ORB to 10AN Male Fitting
- Bosch check valve adapter (x2)
ADDITIONAL IMAGES
