COMPATIBILITY
15-21 WRX (FA20F)
2022+ WRX (FA24F)
14-18 Forester XT (FA20F)
12-16 Scion FR-S (FA20)
13-20 Subaru BRZ (FA20)
2022+ Subaru BRZ (FA24D)
13-21 Toyota GT86 (4U-GSE)
2022+ Toyota GR86 (FA24D)
Universally compatible with 3/8'-19 BSPT threads.

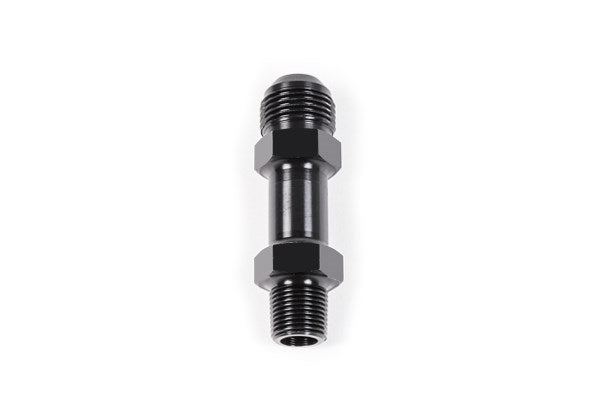

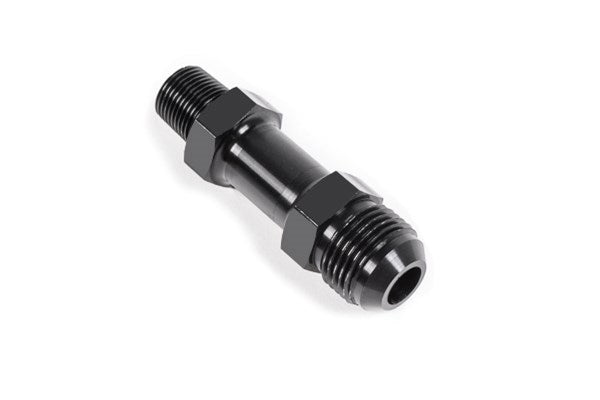

This specially machined aluminum fitting replaces and deletes the stock PCV valve on top of the Subaru FA20, FA20F, FA24D, FA24F, and Toyota 4U-GSE engine blocks.
This black anodized 6061 aluminum fitting converts the threaded hole in the block to a straight thru -10AN male fitting. The fitting has an overall height of 3.1'.
INSTALLATION NOTES
1. Always apply a small amount of PTFE thread sealant before installing. First, hand tighten the fitting. Then, use a 7/8" deep socket wrench to spin the fitting another 1.5 to 3 turns.
15-21 WRX (FA20F)
2022+ WRX (FA24F)
14-18 Forester XT (FA20F)
12-16 Scion FR-S (FA20)
13-20 Subaru BRZ (FA20)
2022+ Subaru BRZ (FA24D)
13-21 Toyota GT86 (4U-GSE)
2022+ Toyota GR86 (FA24D)
Universally compatible with 3/8'-19 BSPT threads.
This specially machined aluminum fitting replaces and deletes the stock PCV valve on top of the Subaru FA20, FA20F, FA24D, FA24F, and Toyota 4U-GSE engine blocks.
This black anodized 6061 aluminum fitting converts the threaded hole in the block to a straight thru -10AN male fitting. The fitting has an overall height of 3.1'.
INSTALLATION NOTES
1. Always apply a small amount of PTFE thread sealant before installing. First, hand tighten the fitting. Then, use a 7/8" deep socket wrench to spin the fitting another 1.5 to 3 turns.
2. This fitting deletes the PCV valve. If connecting this to a catch can that breathes back into the intake manifold, a PCV valve must be installed somewhere in the system.
