OVERVIEW

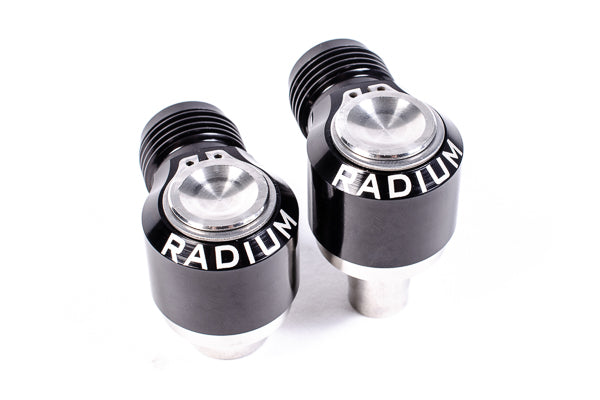

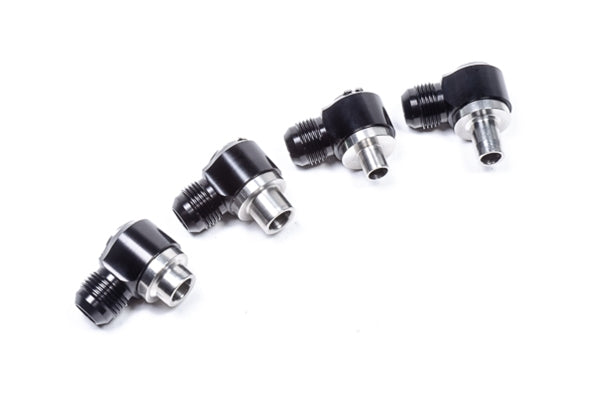

Radium Engineering 10AN low profile swivel fittings convert the OEM PCV valve and/or OEM crankcase breather ports from their original barb fittings into a 10AN male swivel fitting connection for use when converting to large breather lines for a competition catch can with large breather lines. These install by simply pressing in to the valve cover. No drilling or welding is required.

Note: when installing these fittings in place of a PCV valve, a new PCV valve will need to be installed inline or on the catch can in order to maintain the connection to the intake manifold.

COMPATIBILITY

Refer to the table below for fitment information with popular Toyota engines. If an engine is not listed, fitment information has never been confirmed.

20-0408

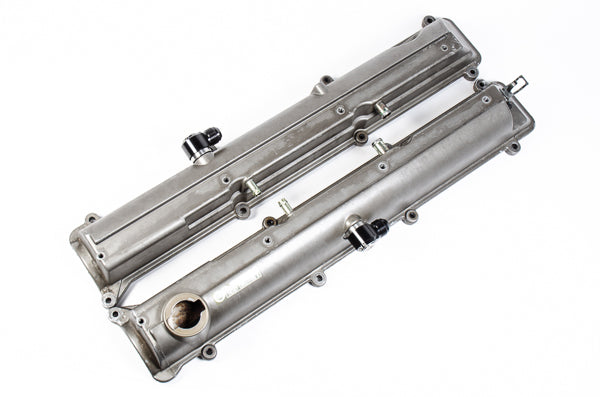

This fitting is a direct replacement for the PCV valve located on the intake side valve cover(s).

Installed height: 1.19"

COMPATIBILE ENGINES

Toyota 1JZ-GE VVT-i
Toyota 1JZ-GTE VVT-i
Toyota 1JZ-GTE Non VVT-i
Toyota 2JZ-GTE VVT-i
Toyota 2JZ-GTE Non VVT-i
Toyota 2JZ-GE Non VVT-i
Toyota 2JZ-GE VVT-i (from 2000 to May 2002 ONLY)

20-0409

This fitting is a direct replacement for the crankcase vent press-in located on the exhaust side valve cover. The installed height is 1.19"

COMPATIBILE ENGINES

Toyota 2JZ-GTE VVT-i
Toyota 2JZ-GTE Non VVT-i
Toyota 2JZ-GE VVT-i
Toyota 2JZ-GE Non VVT-i

20-0509

This fitting is a direct replacement for the crankcase vent press-in located on the exhaust side valve cover.

Installed height: 1.19"

COMPATIBILE ENGINES

Toyota 1JZ-GTE VVT-i

20-0609

This fitting is a direct replacement for the crankcase vent press-in located on the exhaust side valve cover.

Installed height: 1.19"

COMPATIBILE ENGINES

Toyota 1JZ-GTE Non VVT-i

Fitting part number 20-0408 will work in many Toyota/Lexus models, some are listed below. If the PCV valve is mounted to the valve cover with rubber grommet P/N: 90480-18001 (shown below), then Radium P/N: 20-0408 will work with the grommet removed.
